LV426967 Mechanical Lug Connector, 14 to 2/0 AWG, Fixed Mount, For Use With Compact NSXm, PowerPact B-Frame 15 to 125 A 3-Pole Molded Case Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- LV426967
- Item #:
- 870843
LV426967 Mechanical Lug Connector, 14 to 2/0 AWG, Fixed Mount, For Use With Compact NSXm, PowerPact B-Frame 15 to 125 A 3-Pole Molded Case Circuit Breaker
- MFR #:
- LV426967
- Item #:
- 870843
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$78.00
each

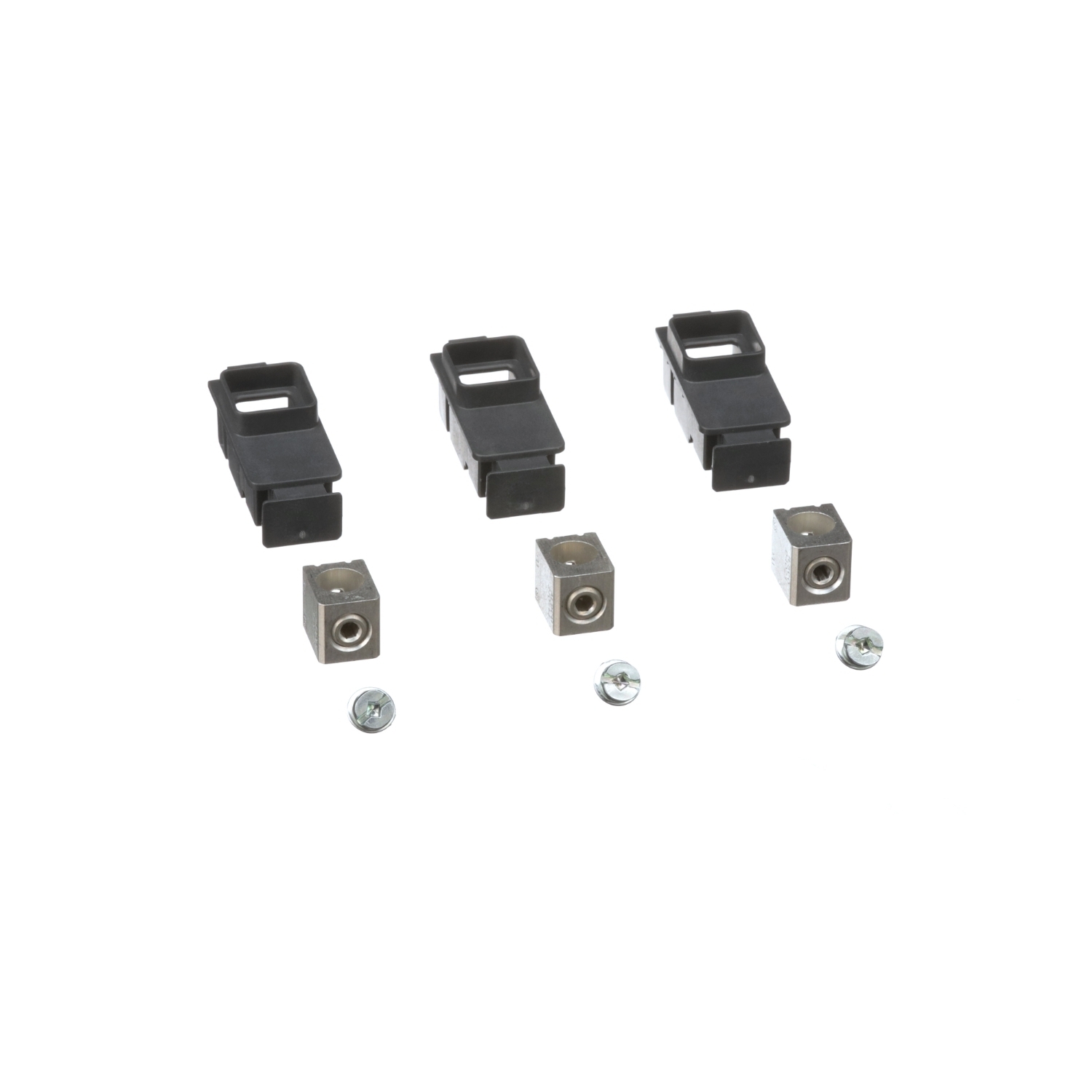

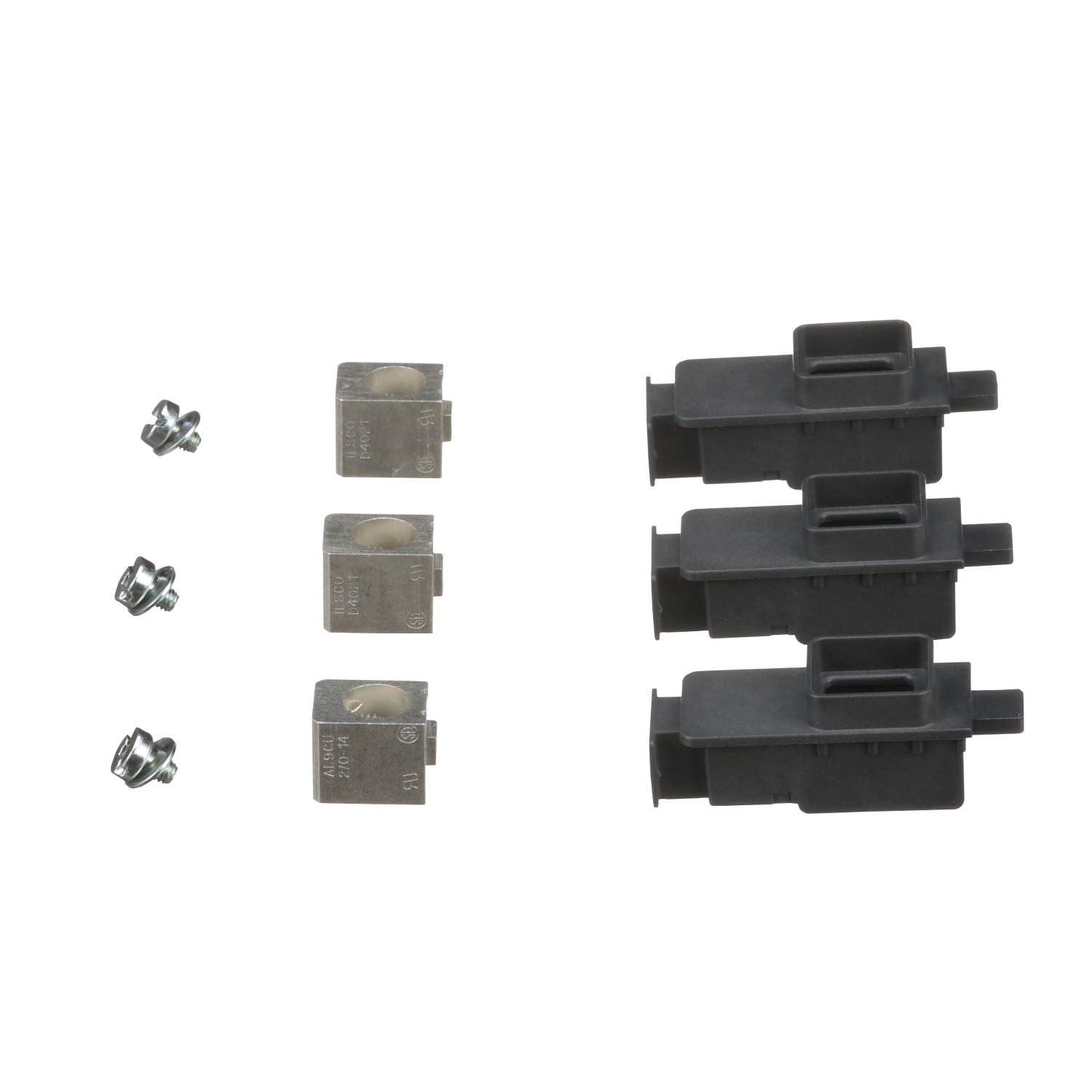

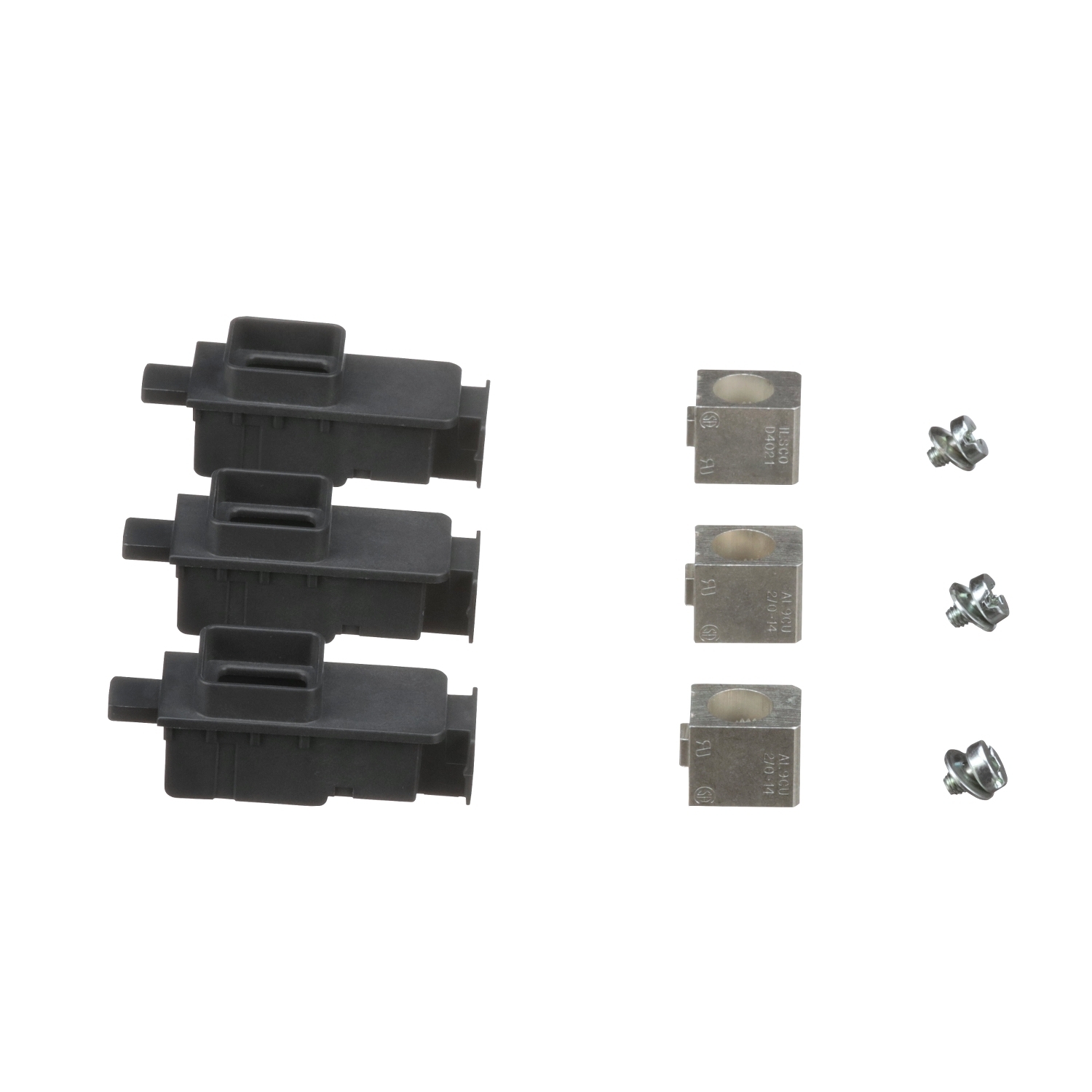

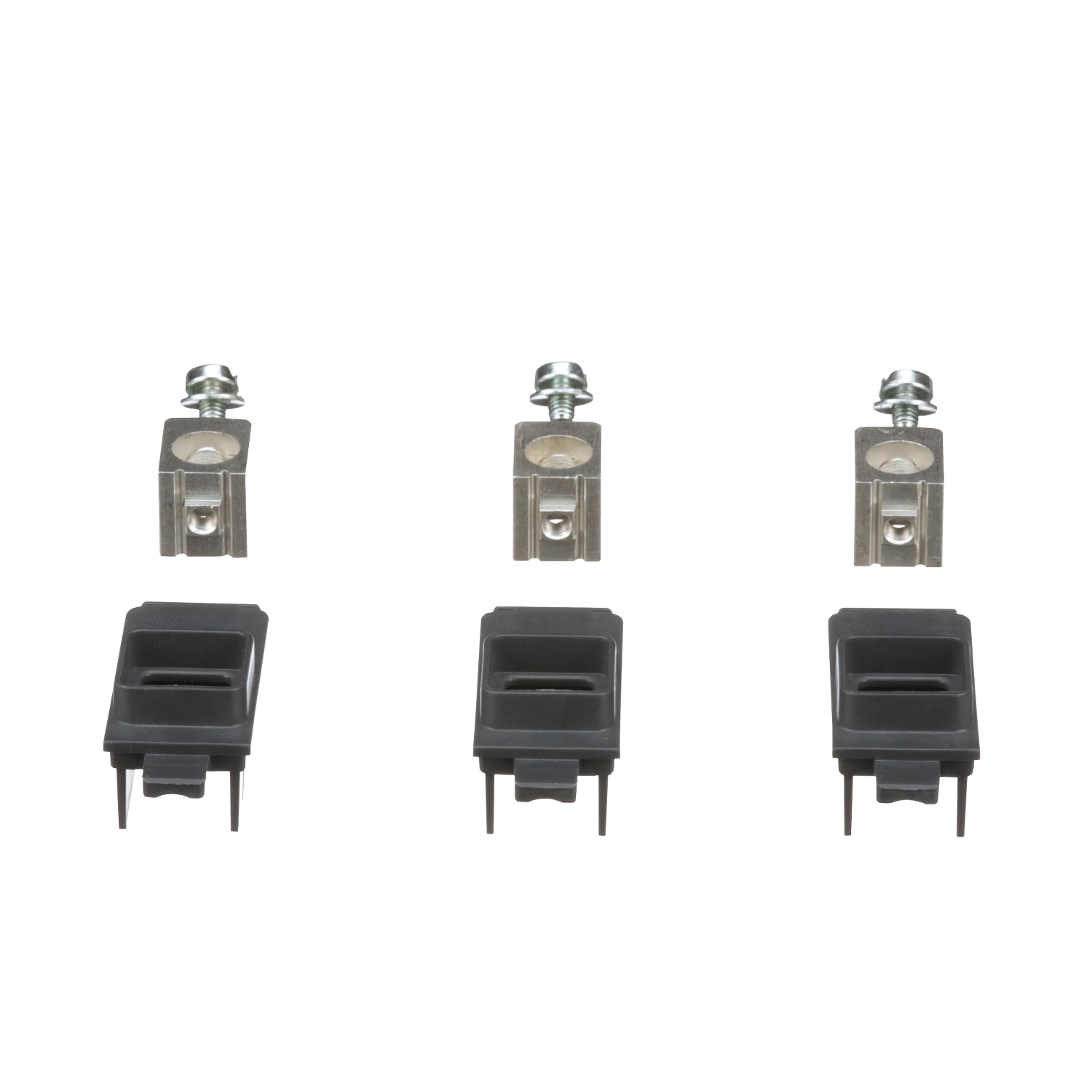

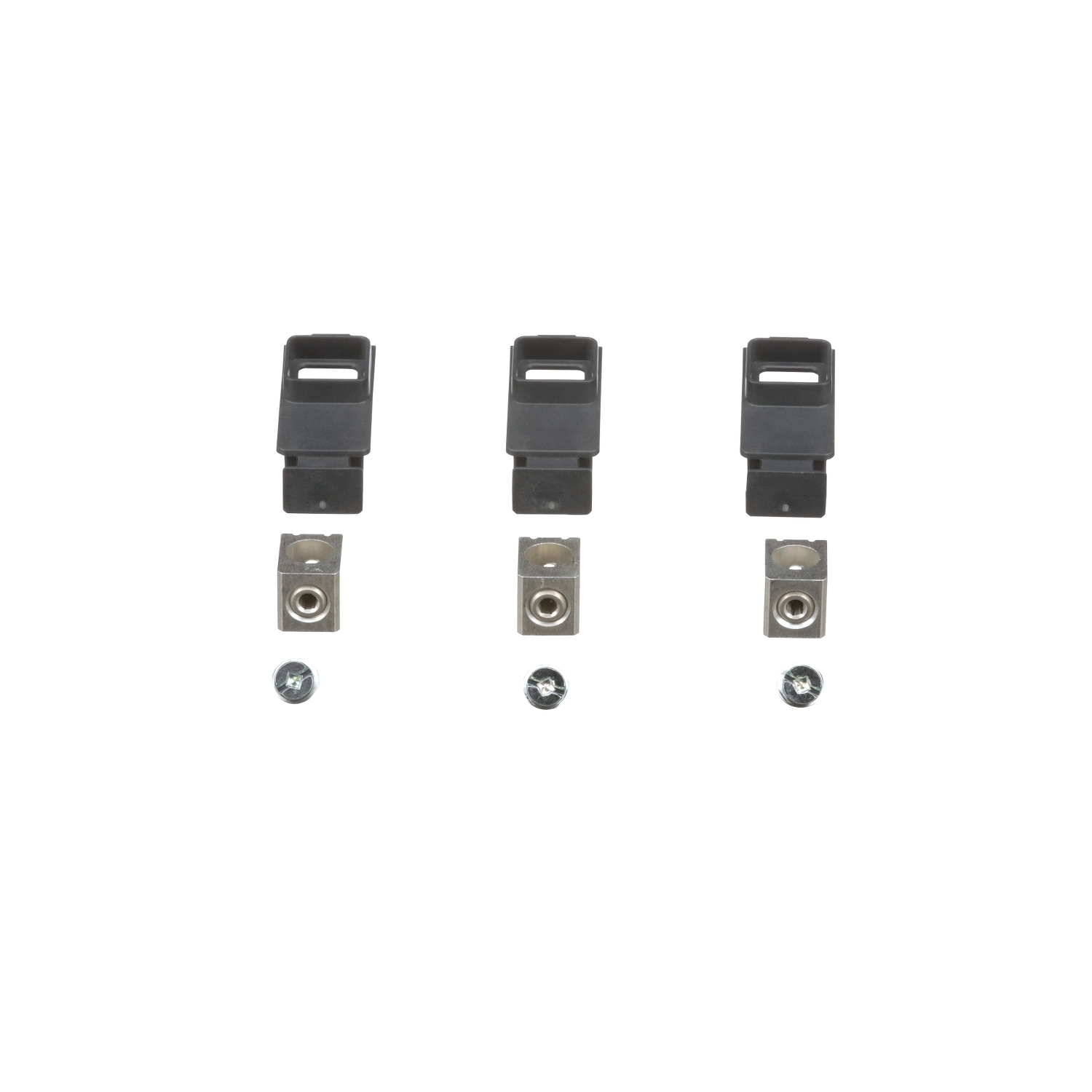

It is a set of 3 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm), and the torque is 5.6 N.m +/- 0.6.
Manuals and Documentation
| Catalog Number | LV426967 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | China |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442340082&lang=en-us |
| GTIN | 03606481154460 |
