Square D

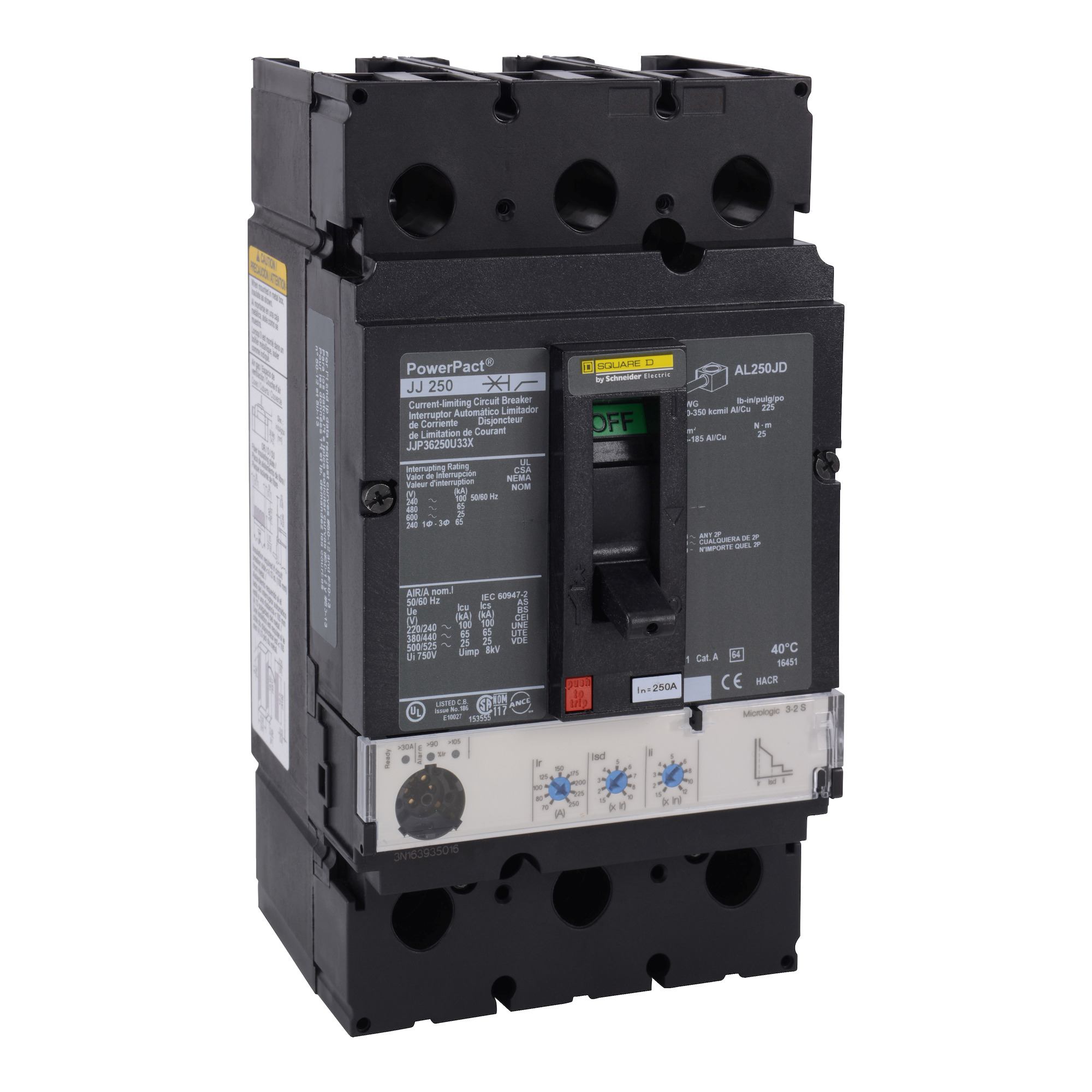

JJP36250U33X PowerPact J Circuit Breaker, 3 Poles

MFR:
Schneider Electric
MFR #:
JJP36250U33X
Item #:
870259

Availability

Location Available Qty
Available Available to Order
$6,202.40 each

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JJP36250U33X
Manufacturer Schneider Electric
Brand Square D
Country of Origin Unknown
Made in USA No
Actuator Toggle
Application HACR rated
Connection Terminal nut, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Overload protection;short-circuit protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423261535&lang=en-us
GTIN 03606486283431
Item Type Circuit breaker
Trip Type Electronic, standard, MicroLogic 3.2 S, LSI
