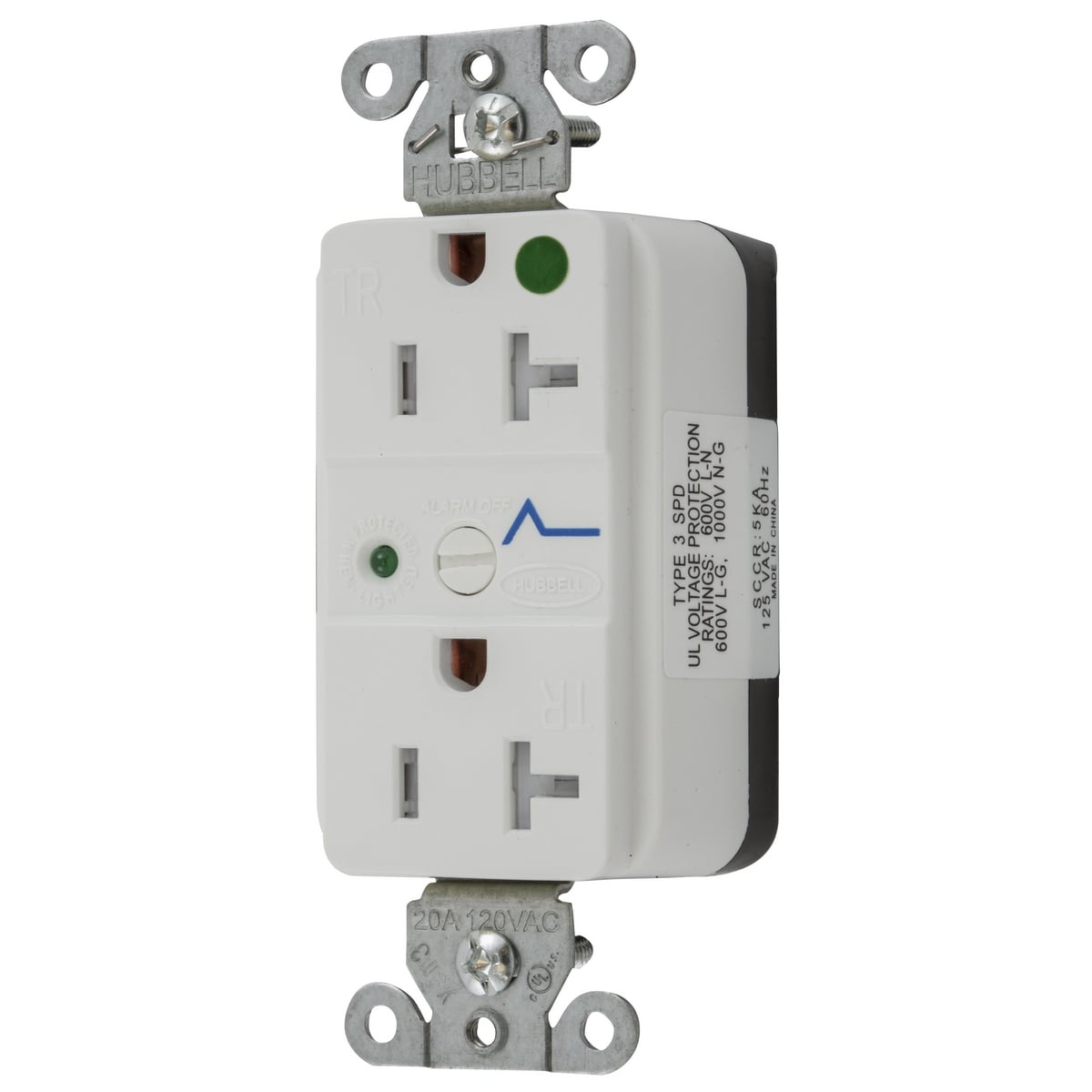

SNAP8362WS 1-Phase 2-Pole 3-Wire Decorator Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Surge Protection Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- SNAP8362WS
- UPC:
- 783585252193
- Item #:
- 868770
SNAP8362WS 1-Phase 2-Pole 3-Wire Decorator Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Surge Protection Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
- MFR #:
- SNAP8362WS
- UPC:
- 783585252193
- Item #:
- 868770
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.
Manuals and Documentation
| Catalog Number | SNAP8362WS |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Hospital Grade |
| Color | White |
| Connection | Connectorized |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Quick Connect- SNAPConnect, Surge Supression, Tamper Resistant |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186 |
| UPC | 783585252193 |
| GTIN | 00783585252193 |
| Item Type | Surge Protection Receptacle |
| Size | 3.31 in x 1.75 in x 1.52 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG |
