Killark

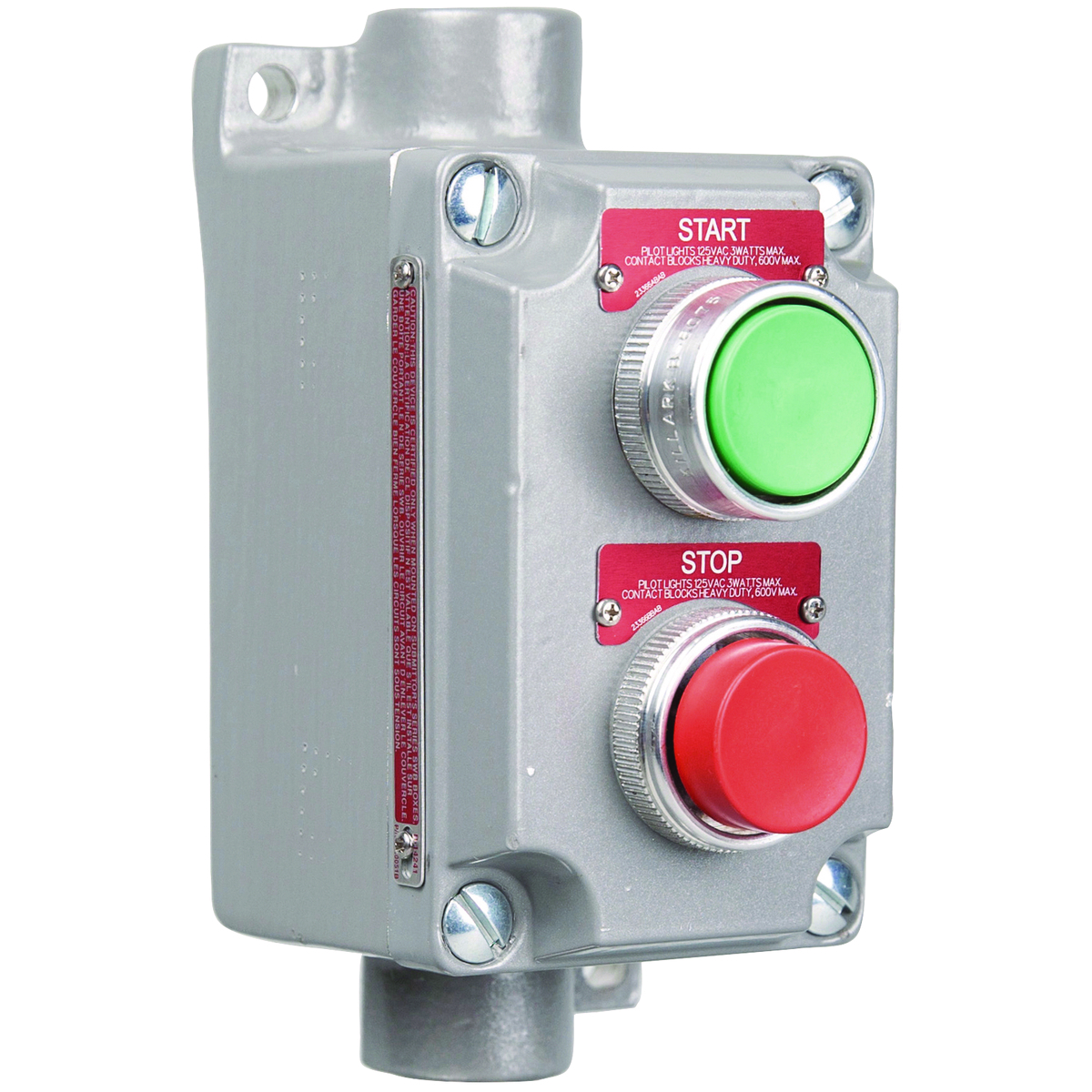

XCS-5B4-U Feed-Through Pushbutton Control Station With (2) Pushbutton, 600 V AC, 2NO-2NC Contact, 2 Operators, NEMA 7CD/9EFG NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
XCS-5B4-U
UPC:
783936891552
Item #:
864940

Availability

Location Available Qty
Available Available to Order
$583.31 each
Manuals and Documentation
Catalog Number XCS-5B4-U
Manufacturer Killark, a Hubbell affiliate
Brand Killark
Country of Origin United States
Made in USA Yes
Action Momentary
Actuator Double Pushbutton
Amperage Rating 10
Application Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Color Green;Red
Contact Configuration 2-NO/2-NC
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Enclosure Aluminum enclosure
Number of Poles 2
Special Features Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936891552
GTIN 00783936891552
Item Type Aluminum Box And Cover With Two Push Buttons
Size 5-7/8" H x 3" W x 3-5/16" D
Environmental Conditions Hazardous locations
Voltage Rating 600 VAC maximum
