SCHNEIDER ELECTRIC

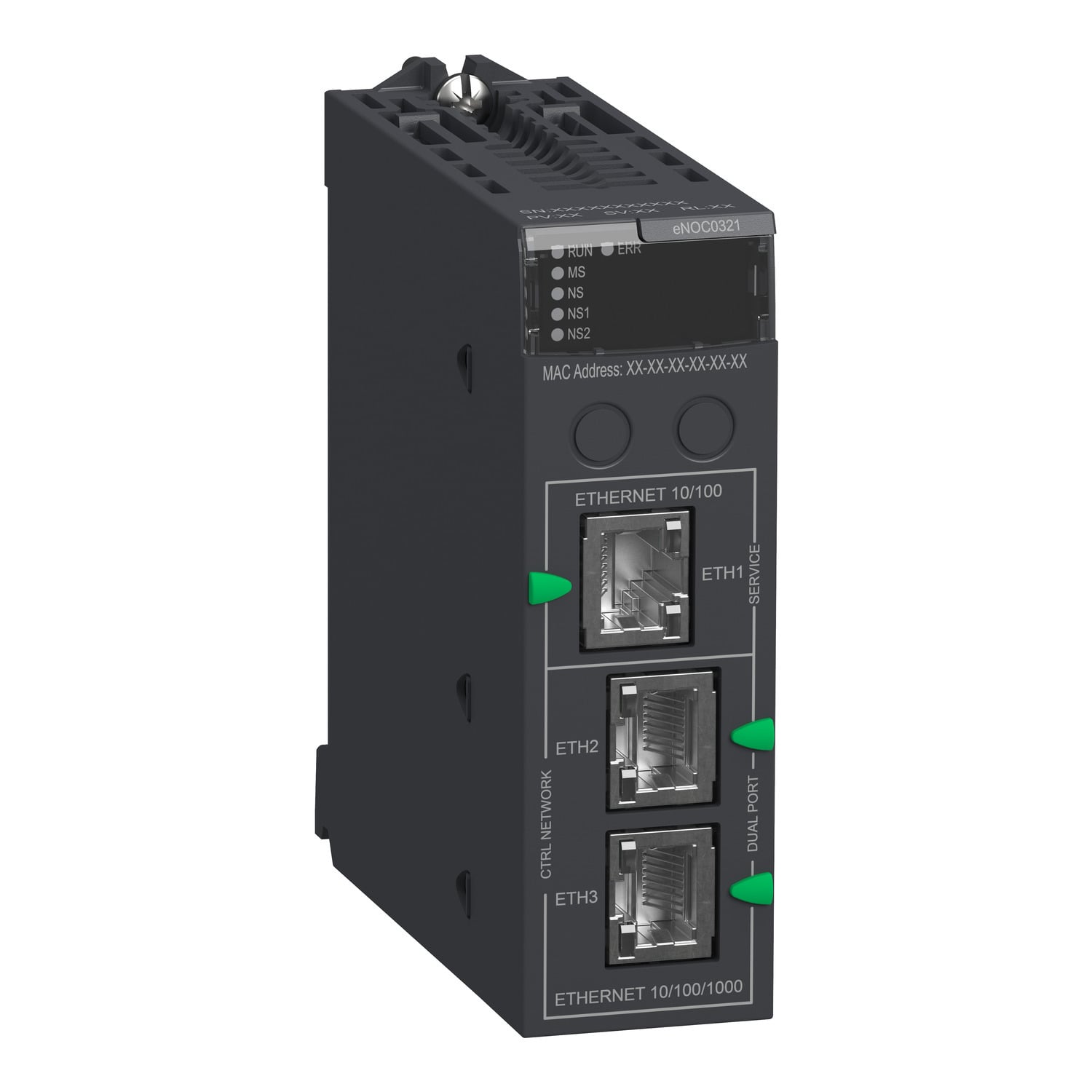

BMENOC0321 Modicon M580 3-Subnet Ethernet Advanced Communication Module, 3.3 V DC, 555 mA, 10/100/1000 Mbps Communication

MFR:
Schneider Electric
MFR #:
BMENOC0321
Item #:
864380

Availability

Location Available Qty
Available Available to Order
$3,605.54 each

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 subnets with IP forwarding function. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support and IP forwarding. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Manuals and Documentation
Catalog Number BMENOC0321
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin France
Made in USA No
Display for processor running (RUN) 1 LED (green); for processor or system fault (ERR) 1 LED (red); for ETH MS (Ethernet port configuration status) 1 LED (green/red); for Eth NS (Ethernet network status) 1 LED (green/red); for Eth NS1 (Ethernet network status) 1 LED (green/red); for Eth NS2 (Ethernet network status) 1 LED (green/red)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425000401&lang=en-us
GTIN 03606480887901
