FSC2SCBU OptiCam Fiber Optic Connector, SC2 Simplex Connector, OS2 9/125 um Single-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule
- MFR:
- Panduit
- MFR #:
- FSC2SCBU
- UPC:
- 613056256408
- Item #:
- 862467
FSC2SCBU OptiCam Fiber Optic Connector, SC2 Simplex Connector, OS2 9/125 um Single-Mode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule
- MFR #:
- FSC2SCBU
- UPC:
- 613056256408
- Item #:
- 862467
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$24.78
each

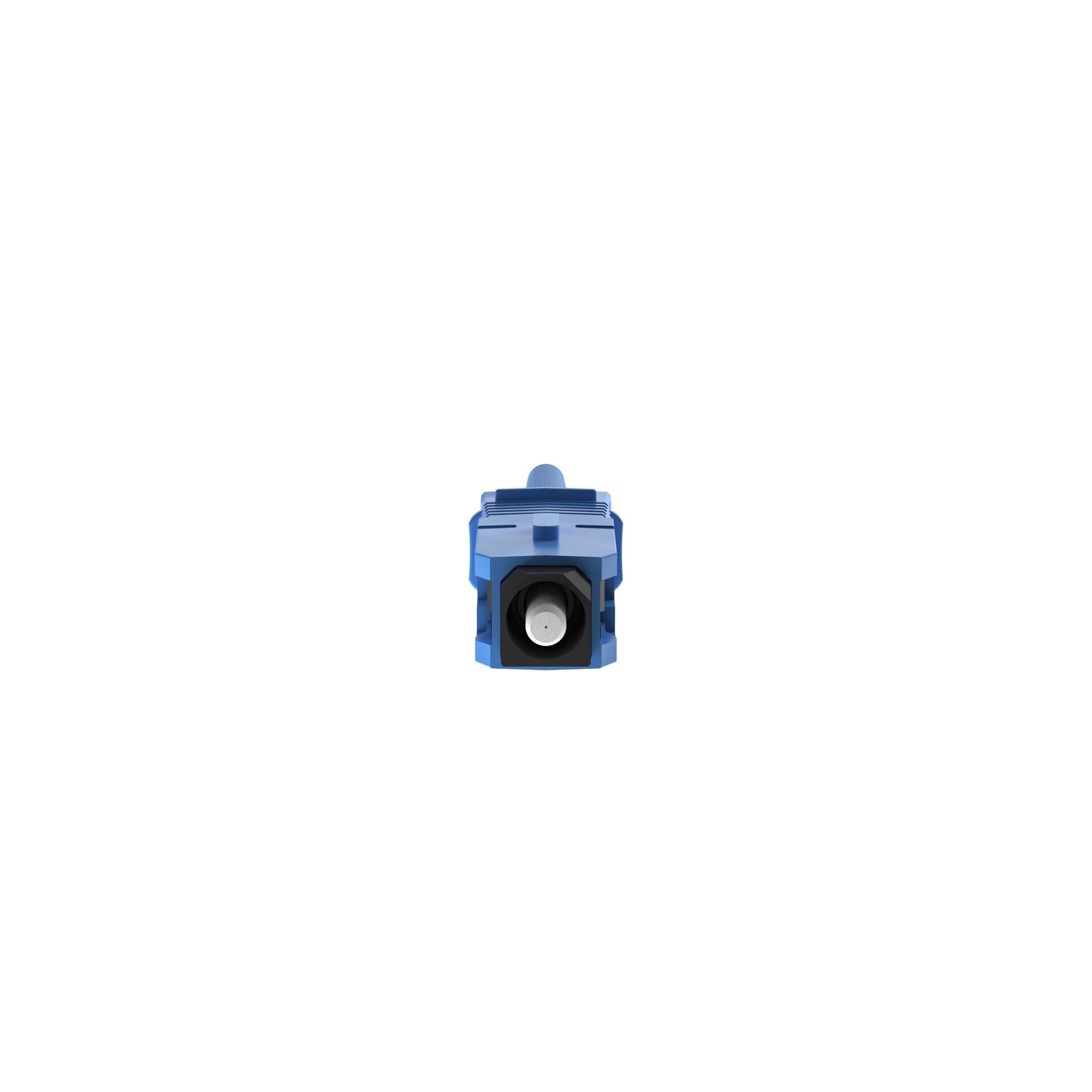

The OptiCam SC Fiber Optic Connector is a singlemode 9/125m OS1/OS2 fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with a blue-colored backbone, outer housing, and 900m boot.
Manuals and Documentation
| Catalog Number | FSC2SCBU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Color | Blue |
| Connection | SC |
| Fiber Size | 900?m |
| Fiber Type | OS1/OS2 |
| Material | Ceramic |
| Standard | RoHS Compliant; TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements |
| UPC | 613056256408 |
| GTIN | 00613056256408 |
| Item Type | Fiber Optic Connector |
| Temperature Rating | 140 °F |
