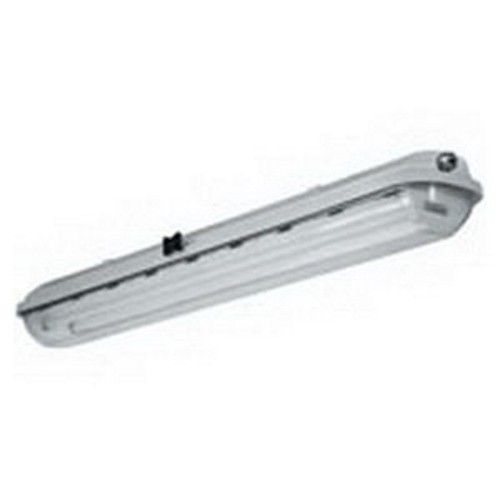

FVP240BU Code Master 12 Light Fixture, (2) Lamp, 400 W Fixture, 120 to 277 V AC, Epoxy Powder Coated Housing
- MFR:
- Appleton Electric
- MFR #:
- FVP240BU
- UPC:
- 781381090766
- Item #:
- 861771
FVP240BU Code Master 12 Light Fixture, (2) Lamp, 400 W Fixture, 120 to 277 V AC, Epoxy Powder Coated Housing
- MFR #:
- FVP240BU
- UPC:
- 781381090766
- Item #:
- 861771
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,107.46
each
FV Series Nonmetallic Fluorescent Luminaire, Lamp Type: (2) 40 WTT 3300 LM PL Fluorescent (F40BX), Lamp Wattage: 40 WTT, Voltage Rating: 120 - 277 V, Number Of Lamps: 2, Material: Stainless Steel Hub, Polycarbonate Lampholder, Fixture Wa
Manuals and Documentation
| Catalog Number | FVP240BU |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use In Marine And Wet Locations, Hazardous And Adverse Locations, Indoor Or Outdoor Use Where Protection Against Dirt, Water And Moisture Is Necessary, Oil Refineries, Petrochemical Facilities, Pulp And Paper Mills, Food Processing Plants, Warehouses, Underground Tunnels And General Manufacturing Facilities |
| Lamp Type | (2) 40 WTT 3300 LM PL Fluorescent (F40BX) |
| Material | Stainless Steel Hub, Polycarbonate Lampholder |
| Special Features | Low operating costs provide more LM/WTT than incandescent fixtures; Impact-resistant polycarbonate lens is hinged to allow easy access to lamp compartment; Corrosion-resistant fiberglass reinforced polyester housing; Actuator allows access to lamps and ballast compartment - no tools required; Latch assembly and elastomer type gasket provide positive seal from water ingress; Safety switch (supplied as standard) disconnects power to lamps and ballast when lens is open; Reflector is hinged for easy single-handed entry to ballast compartment; Actuator can be removed for tamper-resistant applications; For use in locations where a high degree of corrosion resistance is required |
| Standard | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Group IIC; Class II, Division 2, Groups F, G; Type 4X; UL Listed: E10794, 1598, 1598A, 844, 60079-0, 60079-15; CSA Certified: C22.2 No. 250, C22. 2 No. 137, CAN E60079-0, CAN E60079-15; cUL Listed: E10794 |
| UPC | 781381090766 |
| GTIN | 00781381090766 |
| Item Type | FV Series Nonmetallic Fluorescent Luminaire |
| Length | 31 |
| Length UOM | Inch |
| Width | 8.6 |
| Width UOM | Inch |
| Height | 5.7 |
| Height UOM | Inch |
| Voltage Rating | 120 - 277 |
