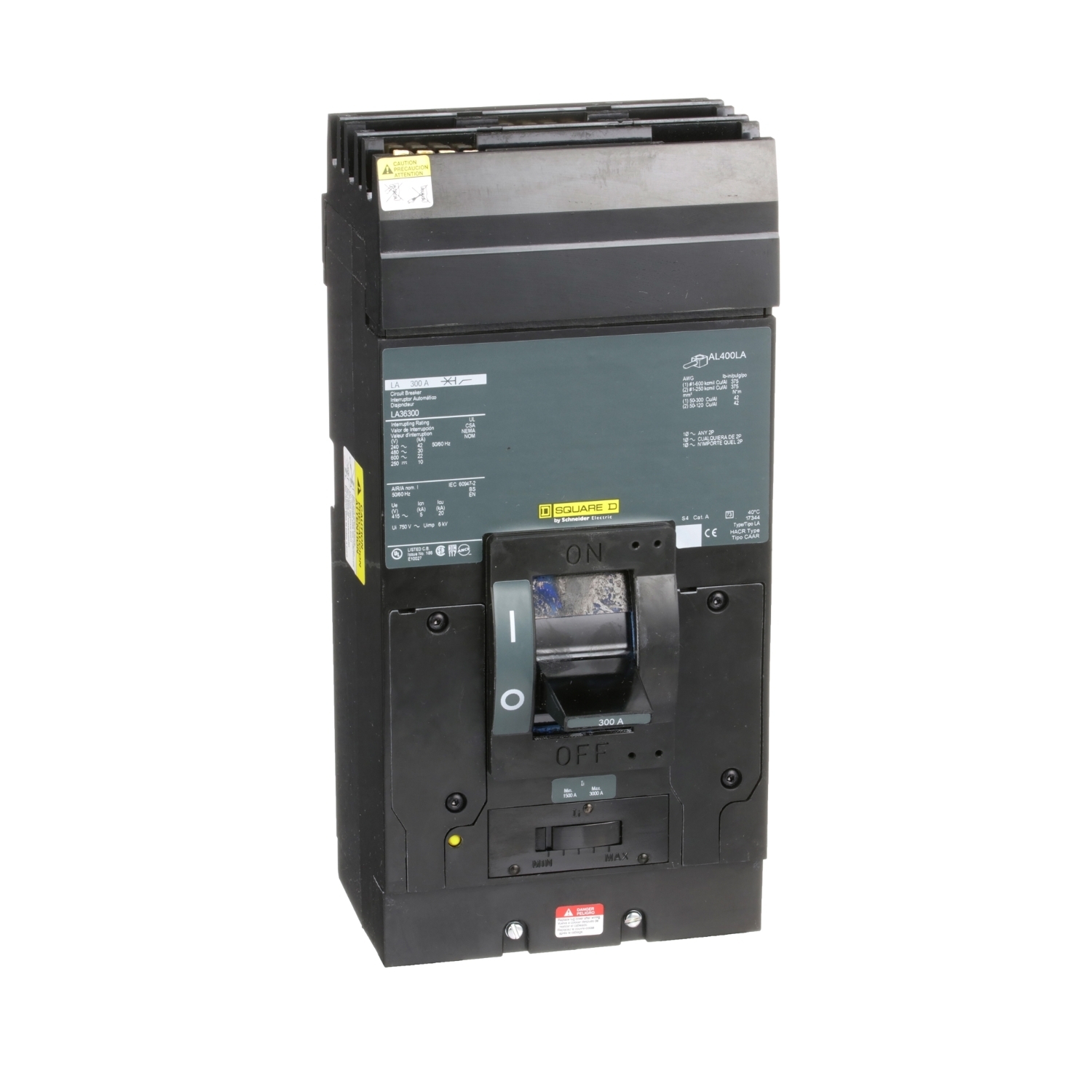

LA36300 Molded Case Circuit Breaker, 300 Amp, 3 Pole, 600V
LA36300 Molded Case Circuit Breaker, 300 Amp, 3 Pole, 600V
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed. I-Line circuit breaker panelboards are available as 4001200A main lugs only and 1001200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
Manuals and Documentation
- Catalog Number
- LA36300
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- HACR rated
- Connection
- Lugs, load;I-Line connection, line
- Number of Poles
- 3
- UPC
- 785901426240
- GTIN
- 00785901426240
- Item Type
- Circuit breaker
- Width
- 6.000000000000000
- Width UOM
- Inch
- Height
- 11.000000000000000
- Height UOM
- Inch
- Depth
- 5.84 IN
- Trip Type
- Thermal-magnetic
