Discontinued
Killark®

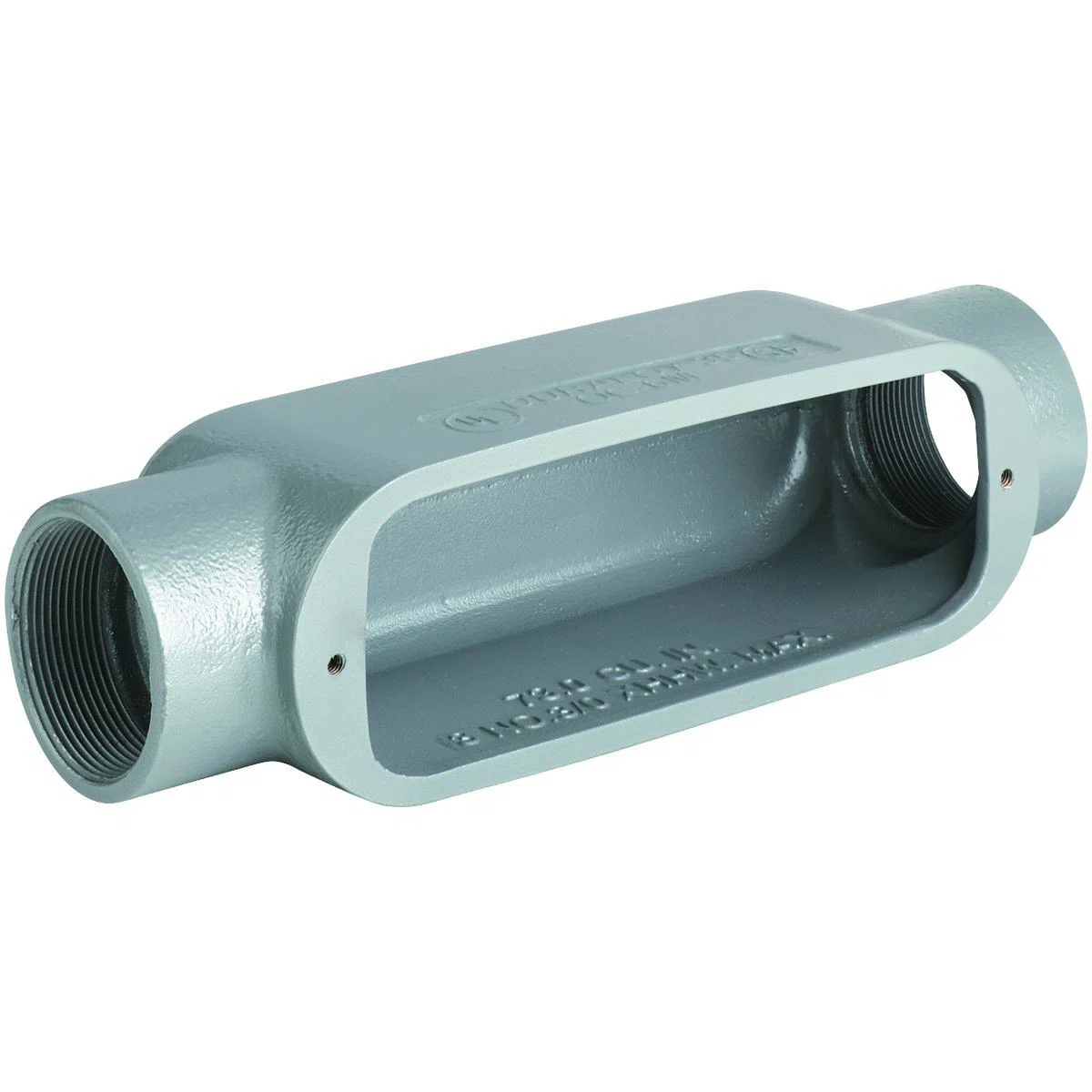

OC-0 O Series Type-C Conduit Body, 4 in Hub, 320 cu-in Capacity, Copper Free Aluminum, Electrostatic Powder Coated

MFR:
Hubbell
MFR #:
OC-0
UPC:
783936450100
Item #:
854921

Availability

Location Available Qty
Available Available to Order

O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electrostatically applied paint.

Manuals and Documentation

Features

  • Raintight when used with gasketed covers
  • Malleable iron suitable for use in concrete
  • Interchangeable with competitive products
  • Stainless steel screws on stamped and cast covers
  • Tapered threaded hubs (NPT)
Manufacturer Part Number OC-0
Stripped Manufacturer Part Number OC0
Brand Killark®
Manufacturer Hubbell
UPC 783936450100
EAN 0783936450100
Country Of Origin US
Capacity 320 cu-in
Color Gray
Dimensions 18-3/8 in L x 5-1/2 in W x 5-5/8 in H
Finish Electrostatic Powder Coated
Material Copper Free Aluminum
Series O Series
Type Type-C
Alternative Part Number 8456065 | 11833684
Manufacturer Item Status Active
Country USA/Canada
Warranty 1 Year
Standards Approvals UL File No. E3397 | CSA File No. LR11852 | Federal Specification W-C-586D/A-A 50563 | NEC 501.10(b) Class I Div 2, 502.10, 503.10
Application To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduit
Connection Type Thread
Hub Size 4 in
Number Of Hubs 2
