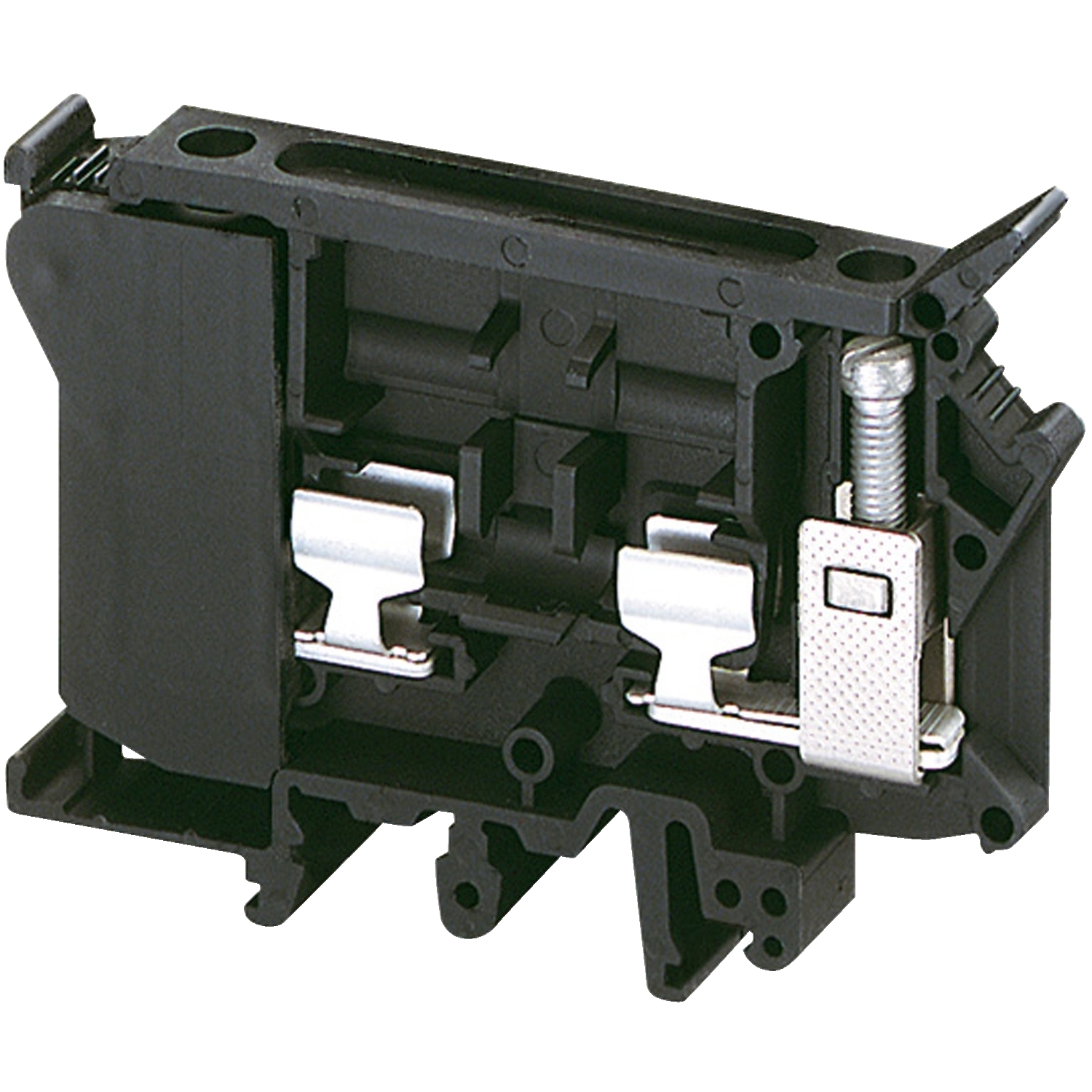

NSYTRV42SF6 Linergy TRV Fusible Terminal Block, 500/600 V AC, 10 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV42SF6
- Item #:
- 85355
NSYTRV42SF6 Linergy TRV Fusible Terminal Block, 500/600 V AC, 10 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR #:
- NSYTRV42SF6
- Item #:
- 85355
Availability
| Location | Available Qty |
|---|---|
| Available | 260 ea |
$24.52
each
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 0.71 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
Manuals and Documentation
| Catalog Number | NSYTRV42SF6 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Turkey |
| Made in USA | No |
| Application | Protection;6.3 x 32 mm |
| Color | Black |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761786&lang=en-us |
| GTIN | 03606480532368 |
| Item Type | Fused disconnect;Terminal block;Spacial enclosures |
