Appleton

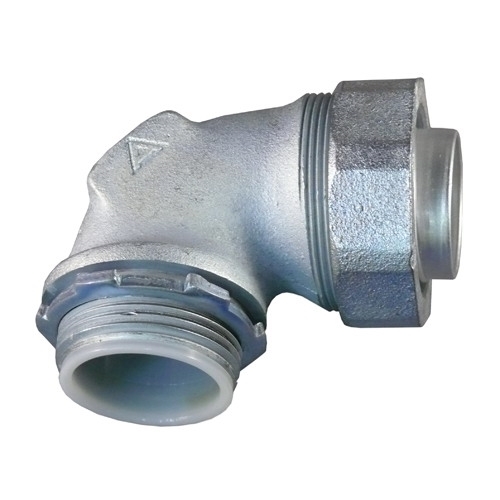

90 deg Liquidtight Connector with Insulated Throat, 4 inch, Malleable Iron, Zinc Electroplated

MFR:
Appleton Electric
MFR #:
STB-90400
UPC:
781381682350
Item #:
85310

Availability

Location Available Qty
Available Available to Order
$1,543.54 each

Appleton STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 4 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 1-1/4 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit

Manuals and Documentation
Catalog Number STB-90400
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit
Connection Threaded X Compression
Finish Chromate, Epoxy Powder Coat/Zinc Electroplated
Material Malleable Iron
Special Features Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius
Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC 781381682350
GTIN 00781381682350
Item Type STB Series 90 DEG Liquidtight Connector With Insulated Throat
Size 4
