BLACKBURN MECHANICAL

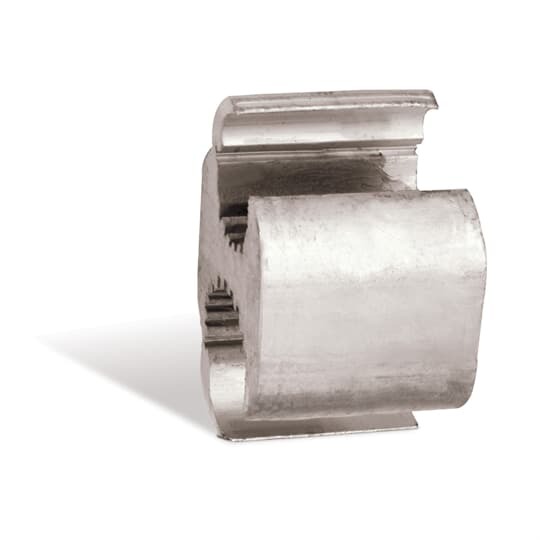

WR319 Blackburn WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 3/0 AWG ACSR/Stranded Main/Run, 4 to 2 AWG ACSR, 4 to 1 AWG Stranded, 2 to 1 AWG Solid Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR319
UPC:
783786100163
Item #:
85154

Availability

Location Available Qty
Available Available to Order
$14.16 each
Manuals and Documentation
Catalog Number WR319
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100163
GTIN 00783786100163
Item Type H-Type Compression Tap Connector
Size Length 1-7/8 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 3/0 ACSR or 3/0 STR AWG , Tap: #2 to #4 ACSR or #1 to #4 STR or #1 to #2 SOL AWG
Cross Reference Products ABBInstall 63140|ABBInstall DB404|ABBInstall OB404|ABBInstall WR319|ABBInstall WR359|ABBInstall WR379|Burndy YC26A2|Burndy YC26A3|Burndy YDH250|Burndy YFD-265
