Panduit

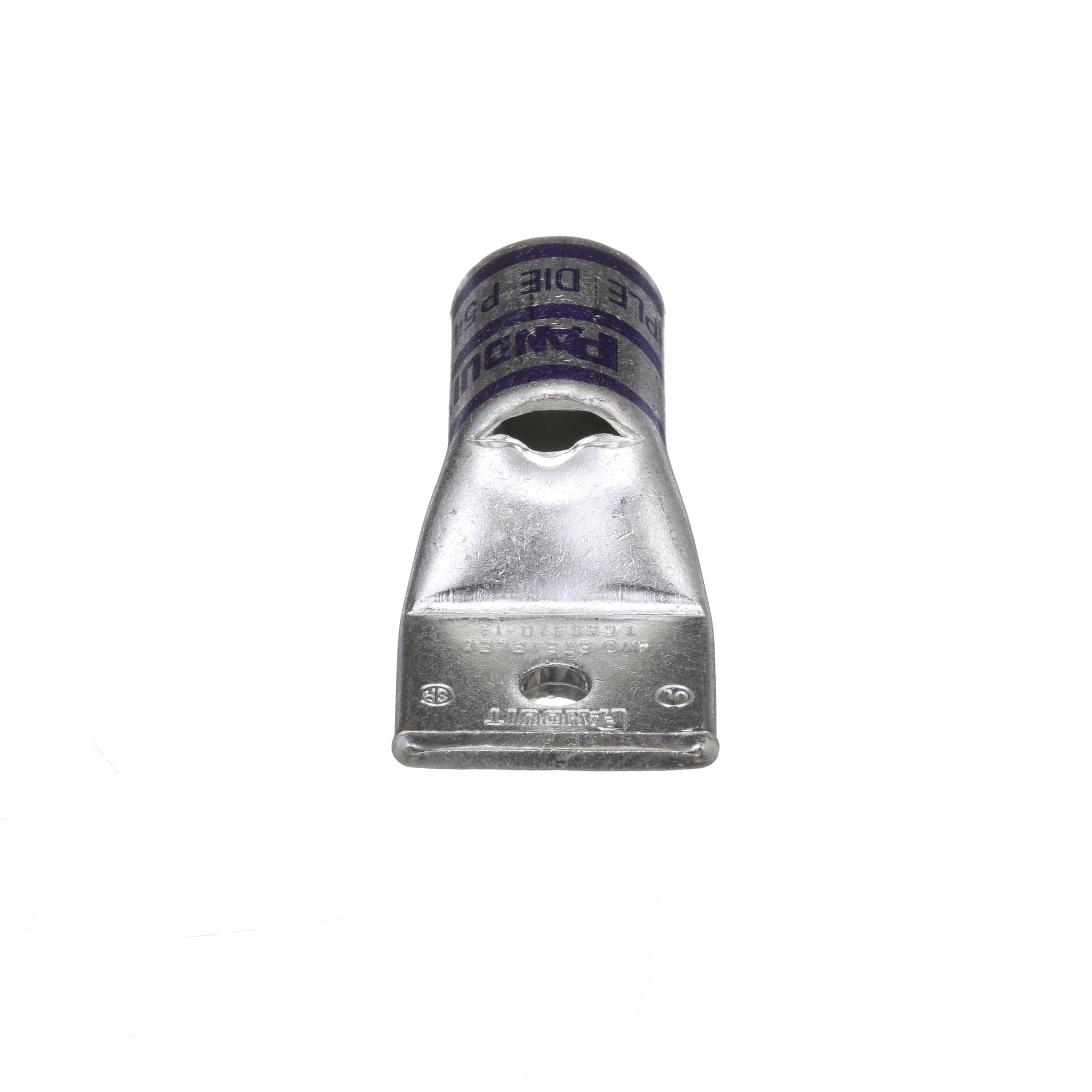

Pan-Lug LCAX4/0-14-X Comp. Lug, Flex, Tin Plt Copper, Strt, One 1/4" Stud, PK10

MFR:
Panduit
MFR #:
LCAX4/0-14-X
UPC:
074983447633
Item #:
849557

Availability

Location Available Qty
Available Available to Order
$19.9597 each

The LCAX4/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.

Manuals and Documentation
Catalog Number LCAX4/0-14-X
Manufacturer Panduit
Brand Panduit
Country of Origin Mexico
Made in USA No
Color Purple
Material Tin-Plated Copper
Number of Holes 1
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard C22.2 No. 65-13, 486A-486B File #E52164
UPC 074983447633
GTIN 00074983447633
Item Type Compression Lug
Size 4/0 AWG Class B, C, G, H, I, K, M and DLO
Stud Size 1/4 IN
Voltage Rating 35kV
