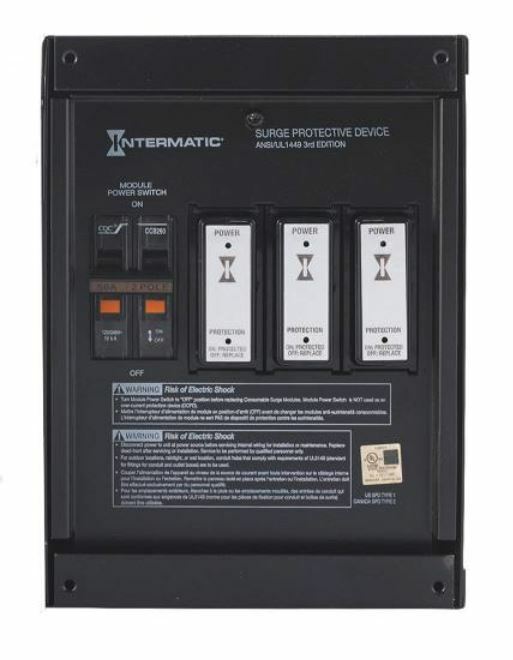

IG2240-IMSK SmartGuard IG2200 Whole House Surge Protective Device, 120/240 V AC, 50/60 Hz, 10 kA SCCR, 1 Phase
- MFR:
- Intermatic
- MFR #:
- IG2240-IMSK
- UPC:
- 078275148697
- Item #:
- 849322
IG2240-IMSK SmartGuard IG2200 Whole House Surge Protective Device, 120/240 V AC, 50/60 Hz, 10 kA SCCR, 1 Phase
- MFR #:
- IG2240-IMSK
- UPC:
- 078275148697
- Item #:
- 849322
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Intermatic's SMART GUARD Whole House Surge Protective Device provides coverage of your customers big investment equipment, from appliances and computers, to HVAC equipment and TVs. This innovative Surge Protective Device uses the IMODULE with LED lights for quick and easy status indication. A blue light indicates the Surge Protective Device unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449 4th edition
Manuals and Documentation
| Catalog Number | IG2240-IMSK |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | residential;lightcommercial |
| Frequency Rating | 50/60 HZ |
| Short Circuit Rating | 10kA |
| Special Features | Six Modes of protection; TPMOV® surge protection technology;Module Power Switch, included on IG2240-IMSK, enables convenient disconnection of power at the SPD when replacing IModules;Includes three IModules with LED power and protection status lights;IModules replace quickly and easily, eliminating the need to install a new SPD unit;Tamper-proof IModule doors, will only open when IModule is being inserted;Includes the IG2200-FMK flush mount kit;Type 1 Enclosure for indoor applications in metal;10-year product warranty;$50,000 connected equipment warranty for 10 years on appliances and electronics;UL certified to ANSI/UL 1449 3rd edition |
| UPC | 078275148697 |
| GTIN | 00078275148697 |
| Item Type | SurgeProtectionDevice |
| Operating Temperature | -31 to 185 Deg F |
| Type of Indicators | SPD |
| Voltage Rating | 120-240 |
