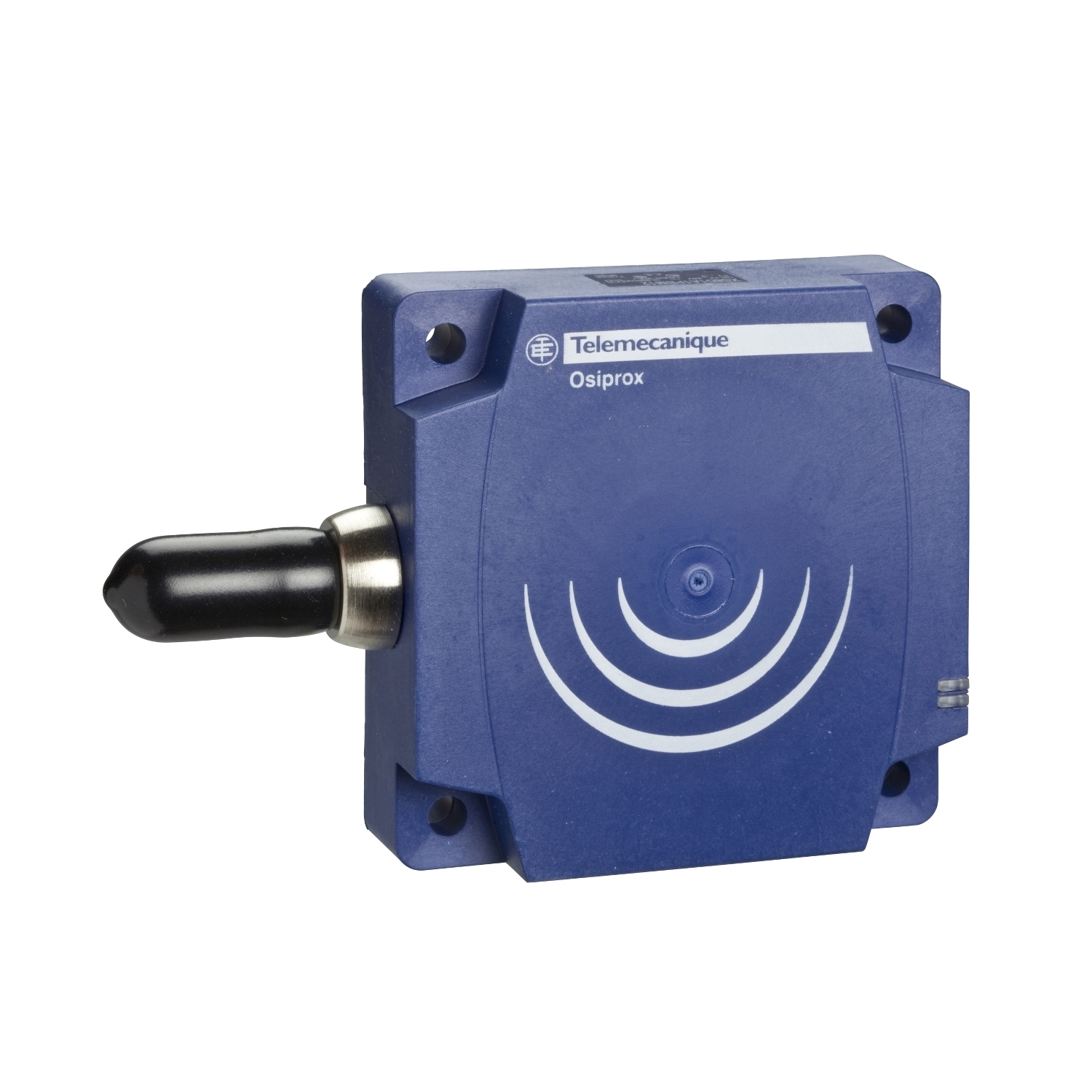

Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12...24 VDC, M12
- MFR:
- Telemecanique Sensors
- MFR #:
- XS8D1A1PAM12
- UPC:
- 785901264422
- Item #:
- 84703
Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12...24 VDC, M12
- MFR #:
- XS8D1A1PAM12
- UPC:
- 785901264422
- Item #:
- 84703
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XS flat (80 x 80 x 26 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It has a standard M12 connector, compatible with all existing market sensor cabling. It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Manuals and Documentation
| Catalog Number | XS8D1A1PAM12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connector | Male connector M12, 4 pins |
| Control Output | DC 3-WIRE (PNP) - 1 N.O. |
| Enclosure | PBT |
| Indicator | OUTPUT: YELLOW - POWER/TEACH: GREEN |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 40 MM FLUSH MOUNTABLE-60 MM NON FLUSH MOUNTABLE,> 1.57...2.36 IN (> 40...60 MM) |
| Sensor | 80 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | PLASTIC |
| Standard | IP67 double insulation conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=870792&lang=en-us |
| UPC | 785901264422 |
| GTIN | 03389110142815 |
| Item Type | Inductive proximity sensor;Flat form 80 x 80 x 26 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT |
| Operating Temperature | -25-70 A Degrees C |
