Telemecanique

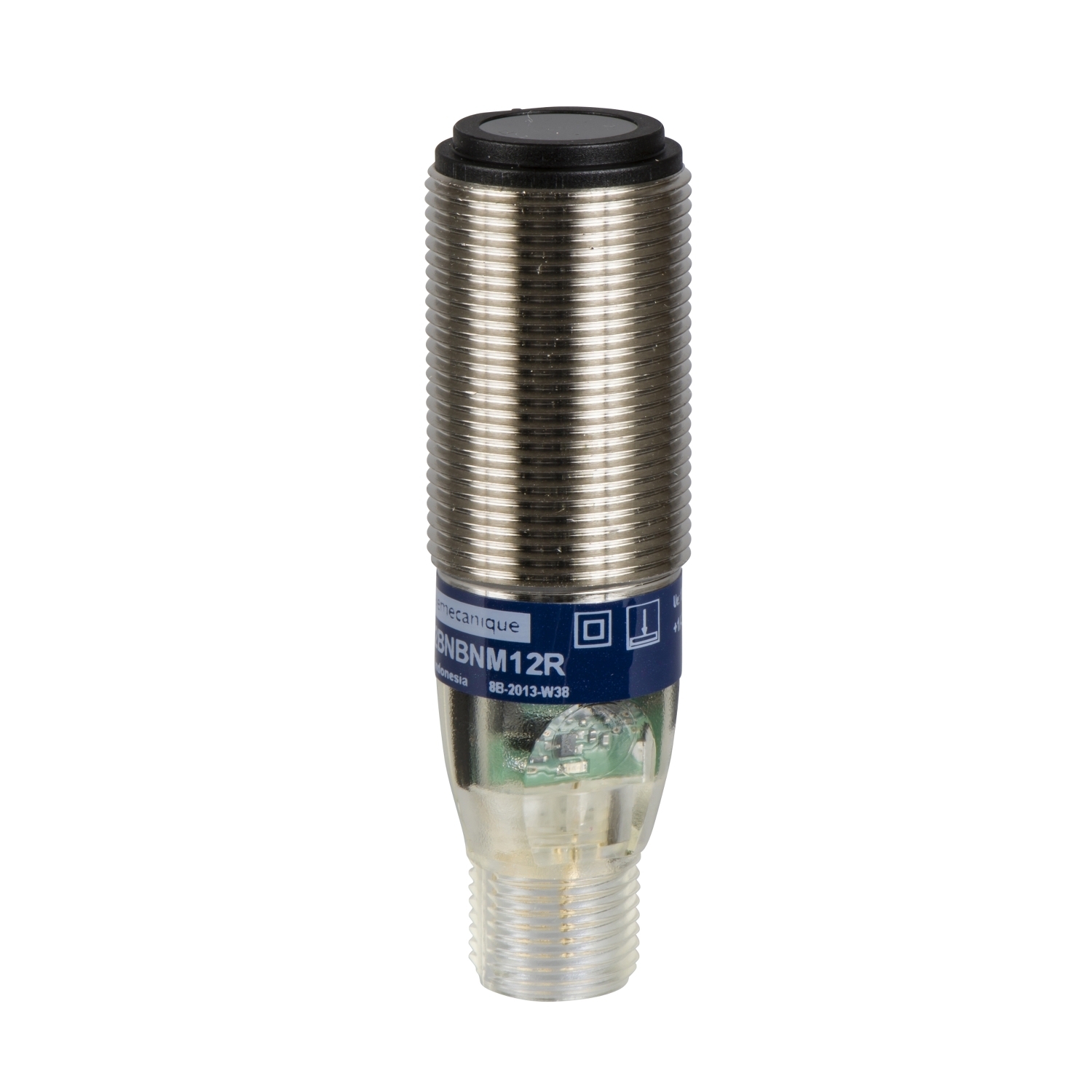

XUB5BNANM12 OsiSense XU XUB Series Single Mode Photoelectric Sensor, Cylindrical Shape, 0.6 m, Infrared Sensing Beam, 1 ms Response, NPN 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUB5BNANM12
UPC:
785901510147
Item #:
84519

Availability

Location Available Qty
Available Available to Order
$131.33 each

This design 18 single mode (diffuse system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUB5BNANM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS
Operating Cycles <= 500 Hz
Output NPN;1 NO;Discrete;Solid state
Sensing Range 0.6-0.6 M DIFFUSE,> 0.98...3.28 FT (> 0.3...1 M)
Special Features 1 LED yellow)output state
Standard IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050,UL-CE-CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873030&lang=en-us
UPC 785901510147
GTIN 00785901510147
Item Type General purpose single mode;Diffuse;Cylindrical M18;Photo-electric sensor
Size 18 MM,78 MM
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
