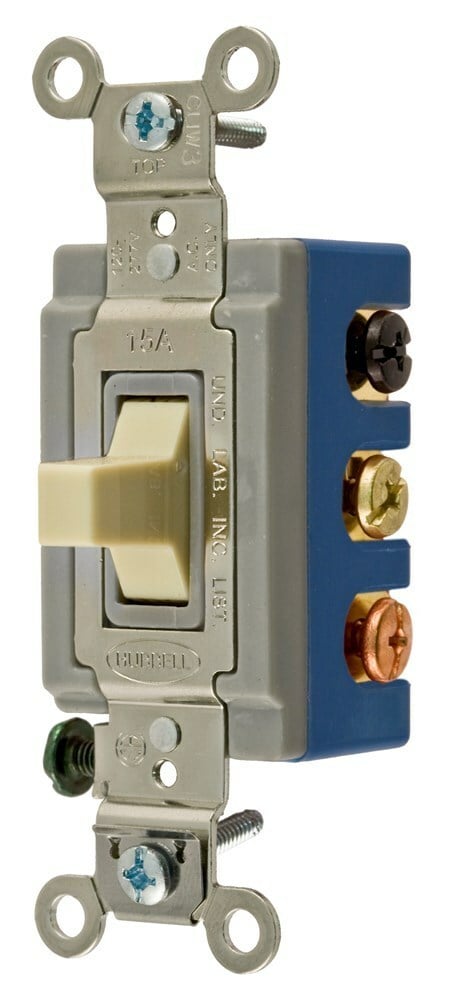

HBL1382I Double Throw Extra Heavy Duty General Purpose Standard Toggle Switch, 120 to 277 V AC, 15 A, 5540 W Power Rating, On-Off-On 3-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL1382I
- UPC:
- 783585432564
- Item #:
- 84390
HBL1382I Double Throw Extra Heavy Duty General Purpose Standard Toggle Switch, 120 to 277 V AC, 15 A, 5540 W Power Rating, On-Off-On 3-Position Contact
- MFR #:
- HBL1382I
- UPC:
- 783585432564
- Item #:
- 84390
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$131.88
each
| Catalog Number | HBL1382I |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Action | DPDT |
| Actuator | Toggle |
| Amperage Rating | 15 |
| Application | Back and Side Wired |
| Color | Ivory |
| Connection | Back and Side Wired |
| Contact Configuration | Three Position Center Off |
| Contact Rating | Per UL 20 |
| Mounting | Screw |
| Number of Poles | 2 |
| Operating Cycles | 50,000 Cycles |
| Special Features | Maintained Contact |
| Standard | UL Listed |
| UPC | 783585432564 |
| GTIN | 00783585432564 |
| Item Type | Toggle |
| Size | 4.06 in x 1.31 in x 1.89 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 120-277 |
| Wattage | 5540 W |
