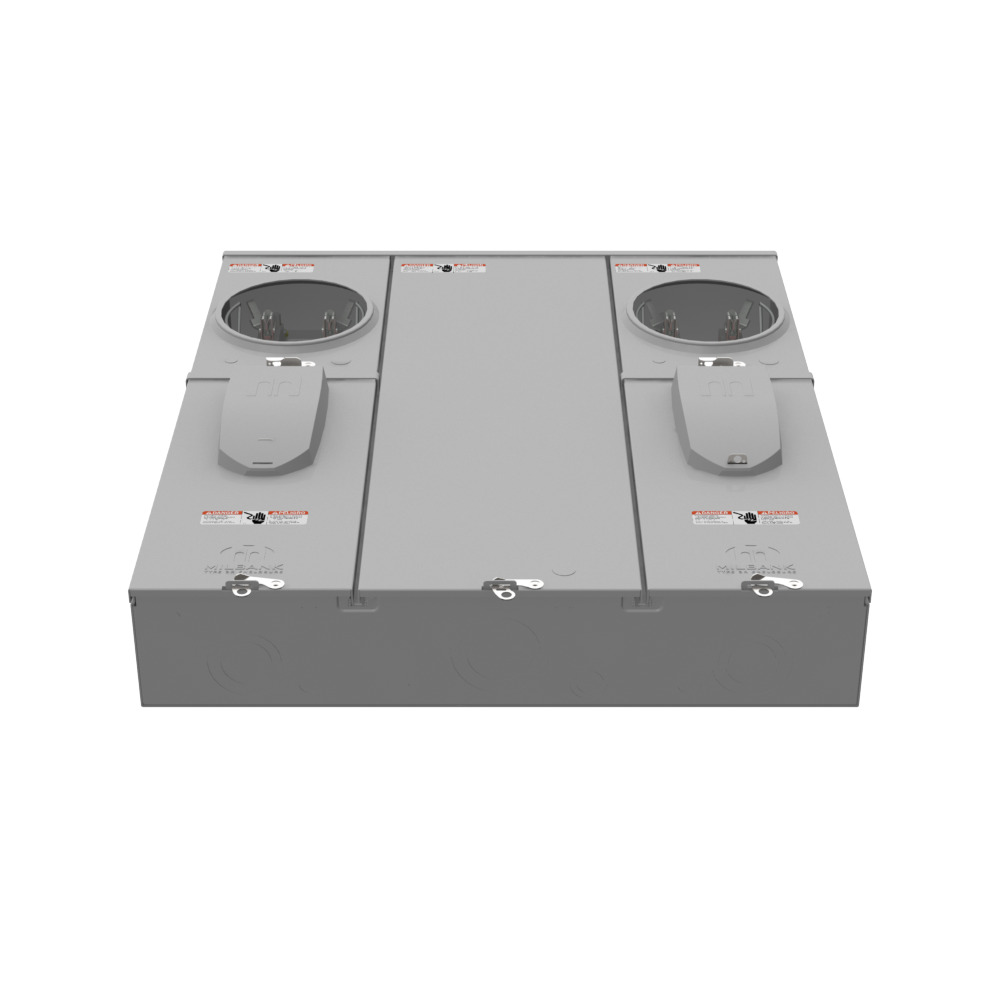

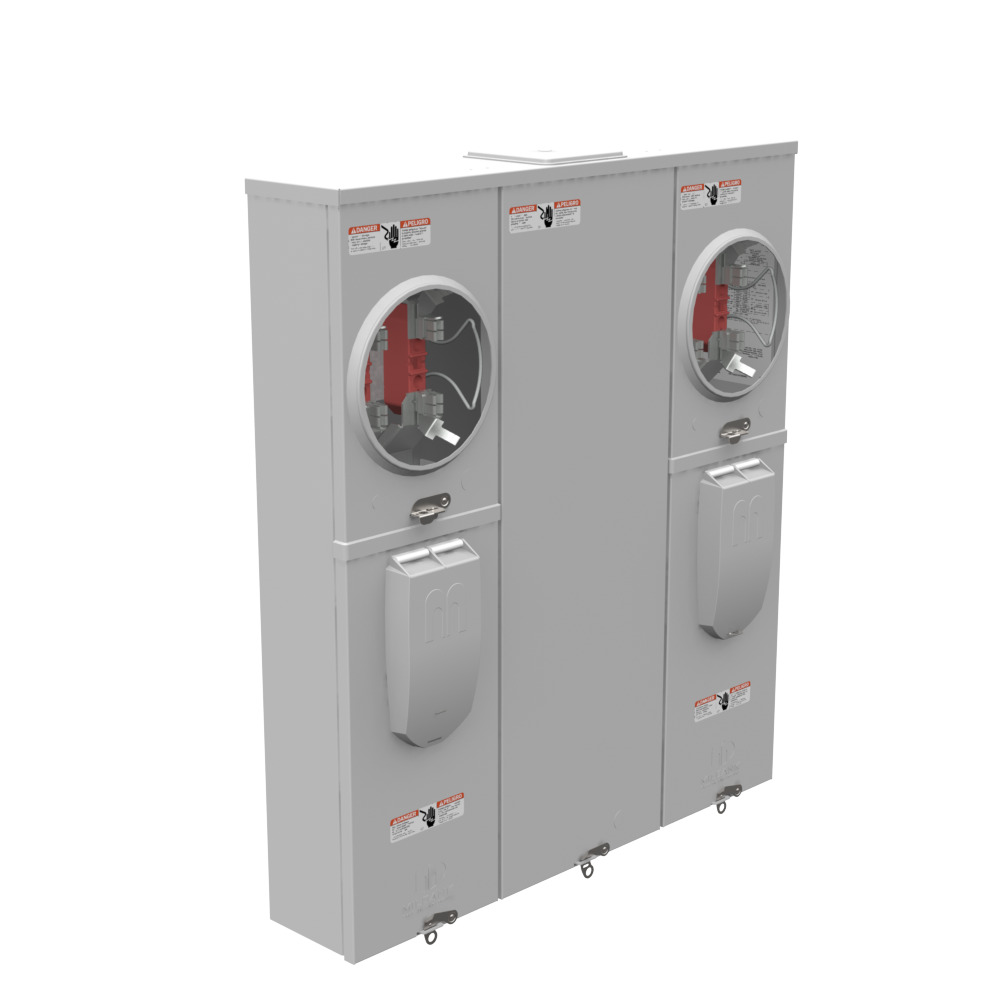

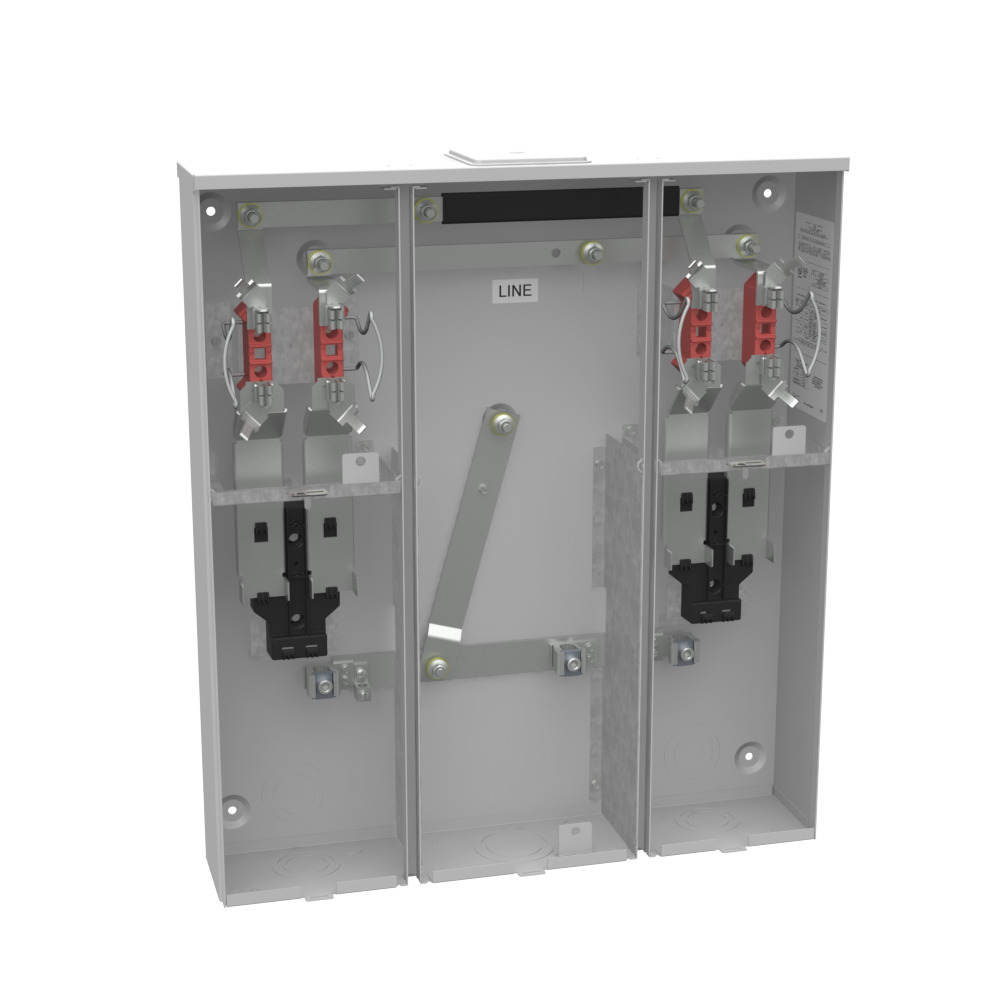

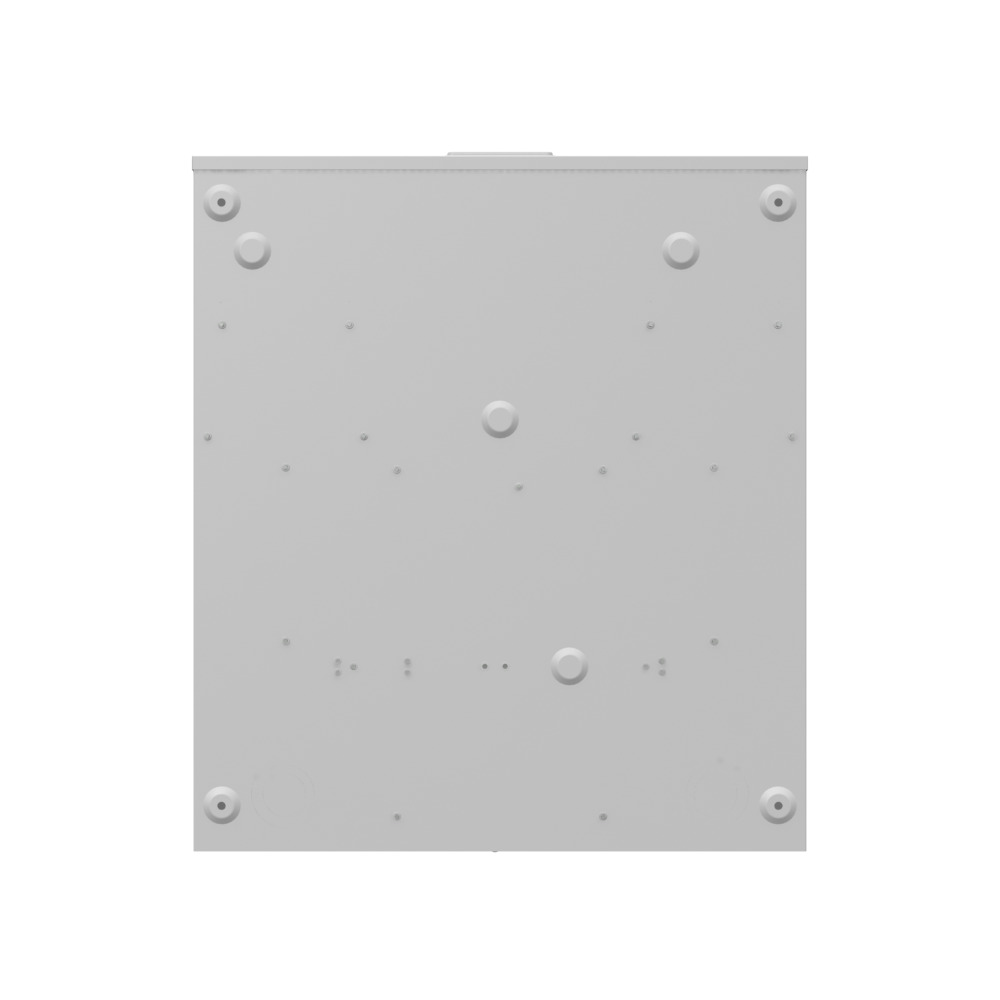

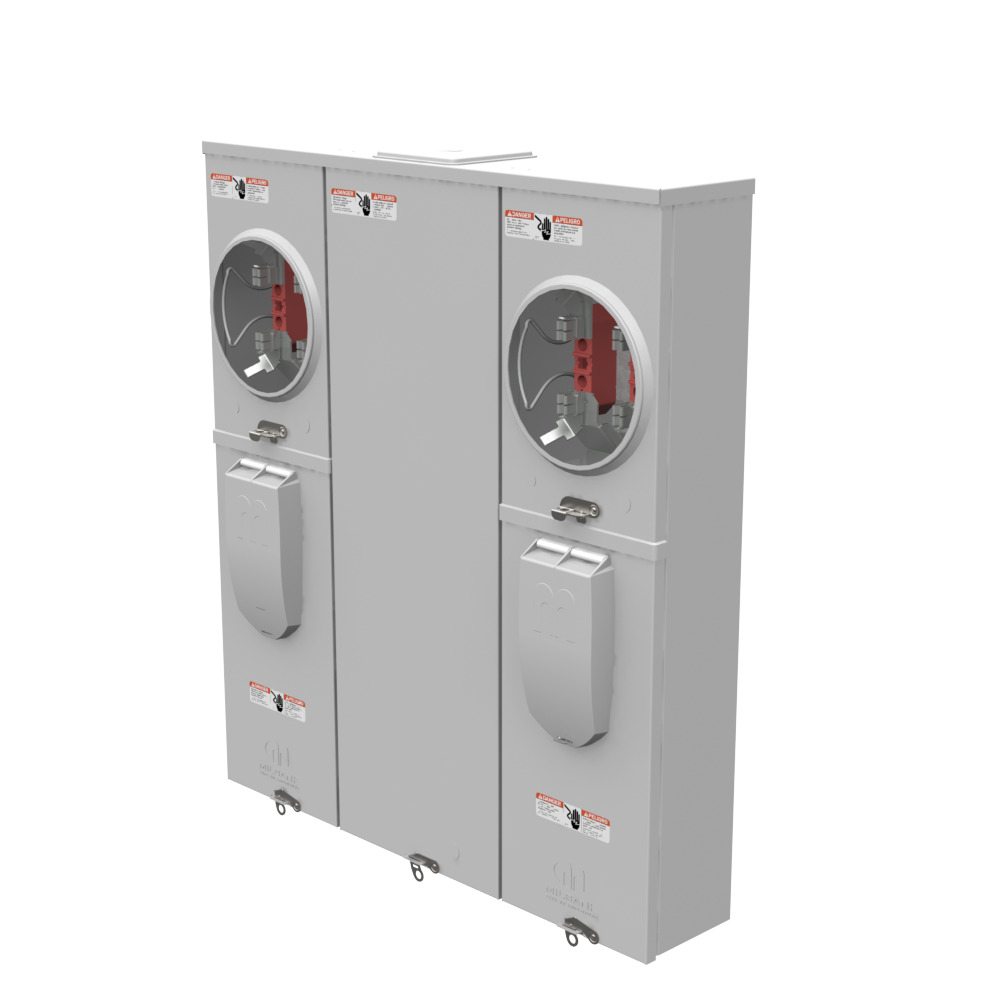

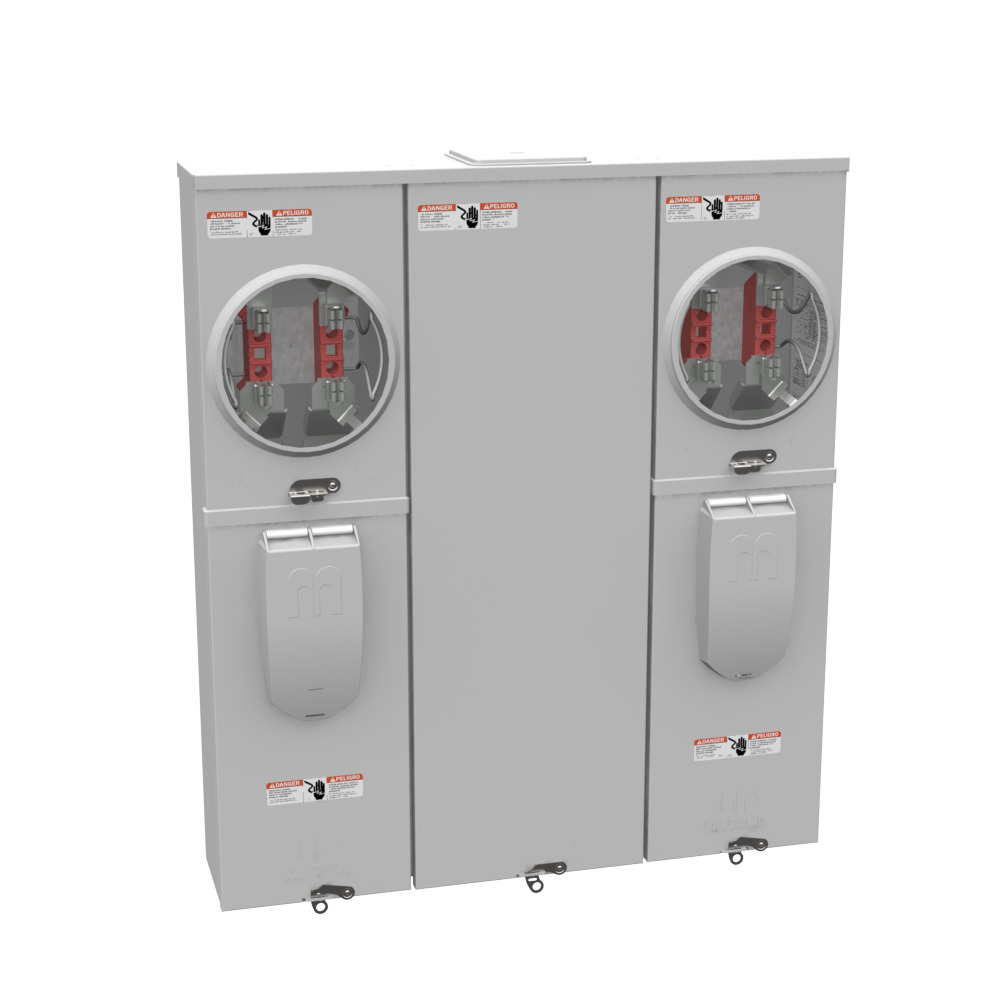

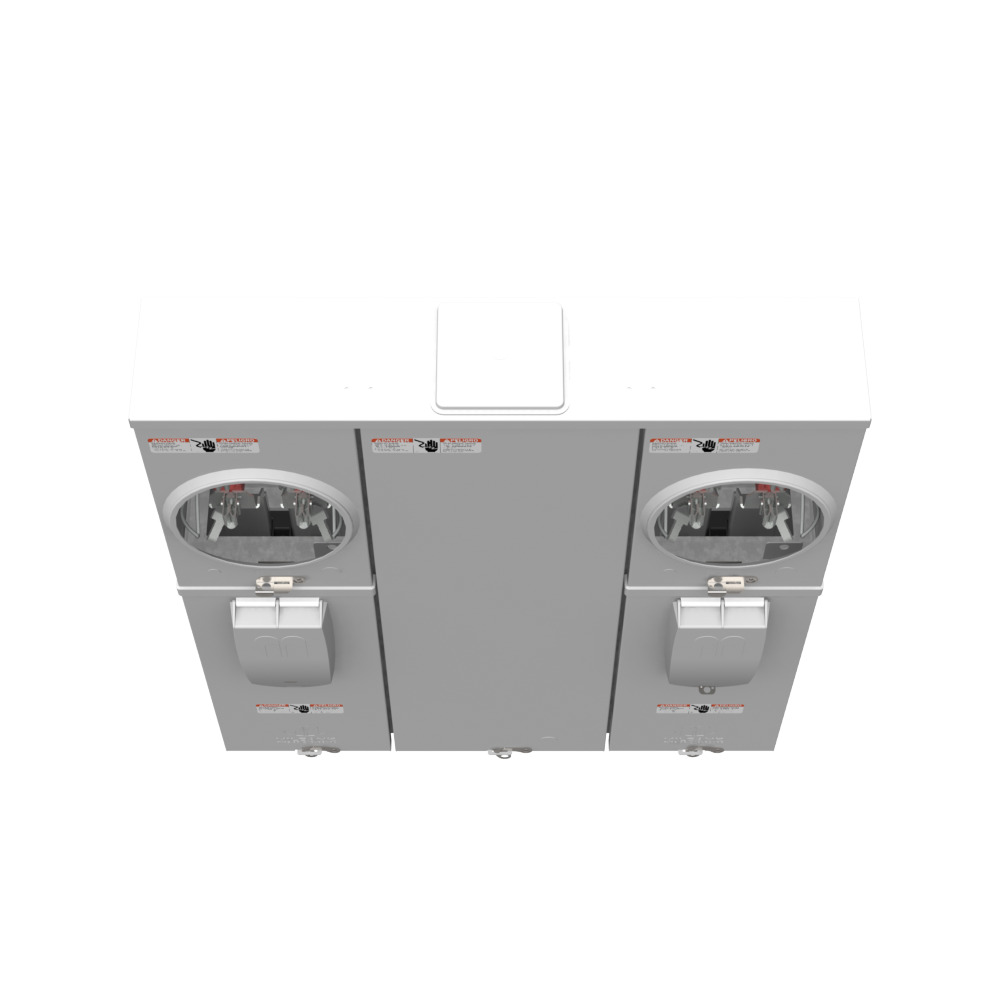

U5902-X-KK-BLG 4 Term, Ringless, Large Closing Plate, Horn Bypass, 2 Position, 2-125 Amp, Main Breaker Provision 7-8 inch Barrel Lock Ground with Bracket Provision
- MFR:
- Milbank
- MFR #:
- U5902-X-KK-BLG
- UPC:
- 784572677104
- Item #:
- 843452
U5902-X-KK-BLG 4 Term, Ringless, Large Closing Plate, Horn Bypass, 2 Position, 2-125 Amp, Main Breaker Provision 7-8 inch Barrel Lock Ground with Bracket Provision
- MFR #:
- U5902-X-KK-BLG
- UPC:
- 784572677104
- Item #:
- 843452
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,066.13
each
Manuals and Documentation
| Catalog Number | U5902-X-KK-BLG |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572677104 |
| GTIN | 00784572677104 |
| Item Type | Ringless Meter Socket |
| Size | 5.125L x 26.5W x 30H |
| Voltage Rating | Up to 240 Volts Alternating Current |
