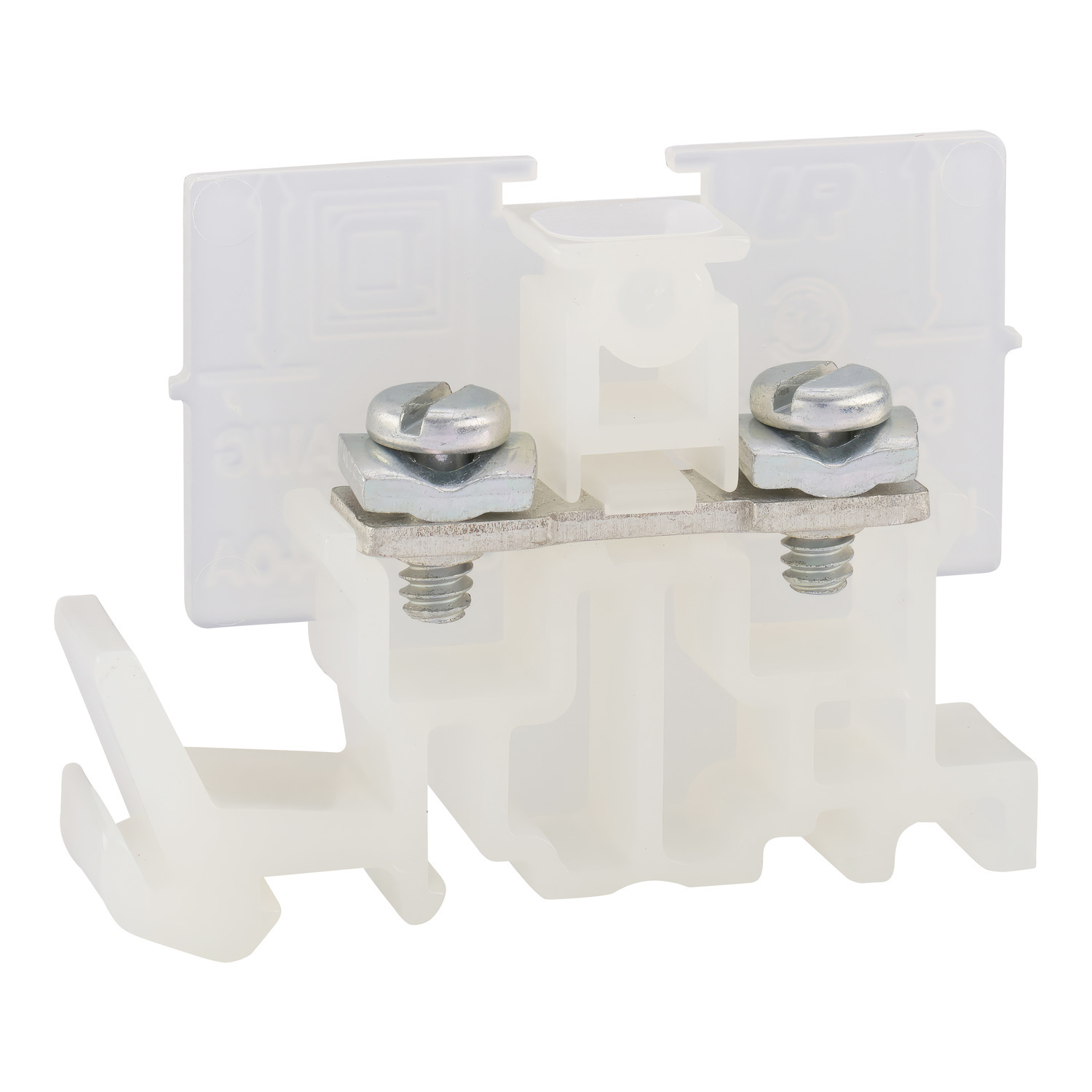

Terminal block, Linergy, pressure wire connector, natural colored block, 40A, 600V
MFR: Schneider Electric
MFR #: 9080GP6
UPC: 785901155379
Item #: 84065
Terminal block, Linergy, pressure wire connector, natural colored block, 40A, 600V
MFR #: 9080GP6
UPC: 785901155379
Item #: 84065
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has pressure wire connectors for use with solid or stranded copper wires from #18 through #12 AWG. Each pressure wire terminal is approved for use with various wire combinations. Each lug accepts 1 or 2 # 12 AWG, 1 or 2 #14 AWG, 1 or 2 #16 AWG or 1 to 2 #18 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 40 ampere up to 600 VAC or VDC.
Manuals and Documentation
- Catalog Number
- 9080GP6
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- UPC
- 785901155379
- GTIN
- 00785901155379
- Width
- 1.8
- Width UOM
- Inch
- Height
- 1.48
- Height UOM
- Inch
- Depth
- 0.37 IN
