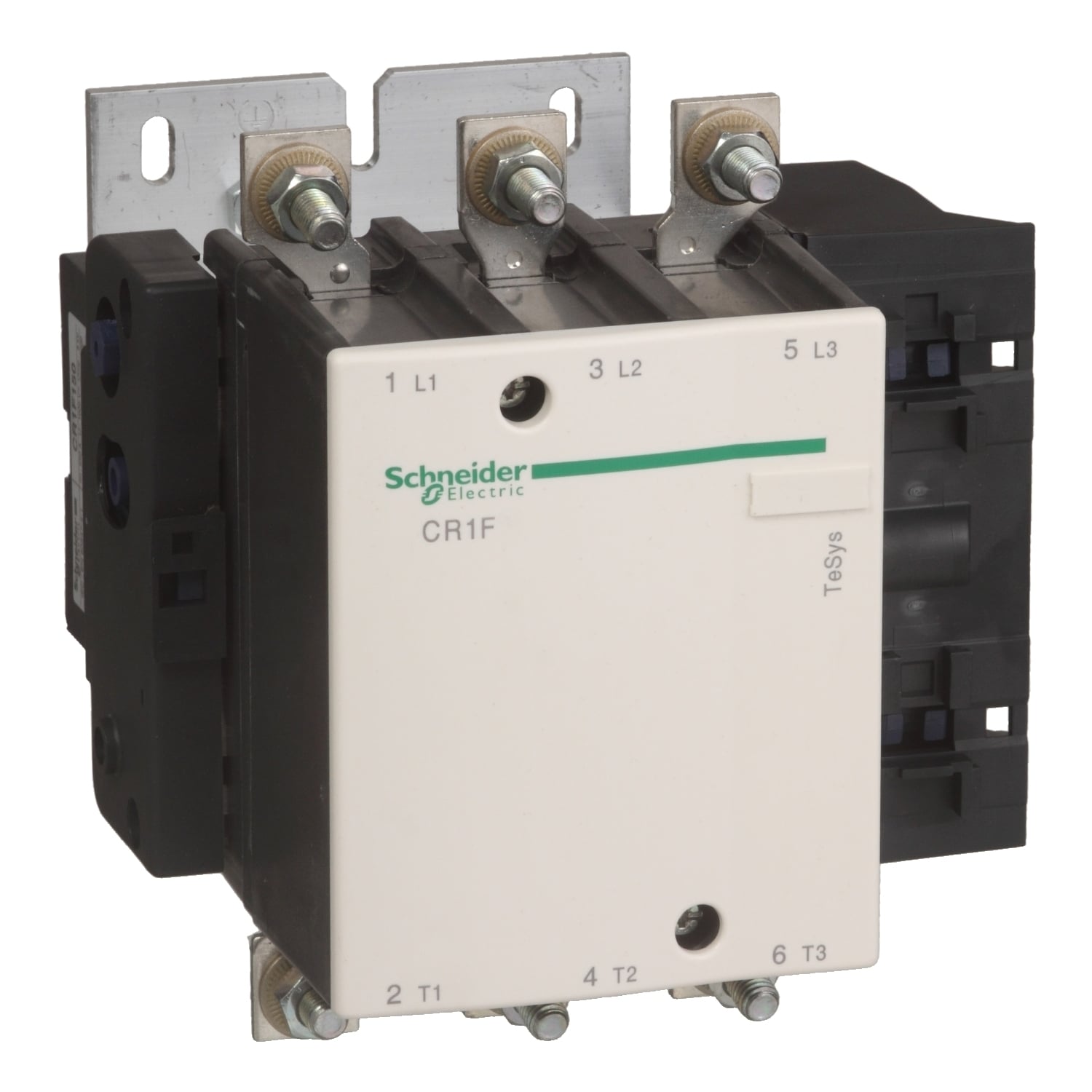

CR1F265U7 TeSys F Magnetic Latching Contactor, 240 V AC V Coil, 350 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- CR1F265U7
- Item #:
- 840042
CR1F265U7 TeSys F Magnetic Latching Contactor, 240 V AC V Coil, 350 A, 3NO Contact, 3 Poles
- MFR #:
- CR1F265U7
- Item #:
- 840042
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys F magnetic latching contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a double coil 240V AC (50-60Hz) for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
Manuals and Documentation
| Catalog Number | CR1F265U7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load;motor control;Control |
| Coil Voltage | 240 V AC 50/60 Hz |
| Connection | lugs-ring terminals 1 240-240 mm²; connector 1 240-240 mm²; bars 2 32 x 4 mm;power circuit bolted connection |
| Contact Configuration | 3 NO |
| Standard | CB Scheme;UL;CSA;EAC;CE;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;JIS C8201-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=597702&lang=en-us |
| GTIN | 03389110548402 |
| Item Type | Magnetic latching contactor |
