Telemecanique

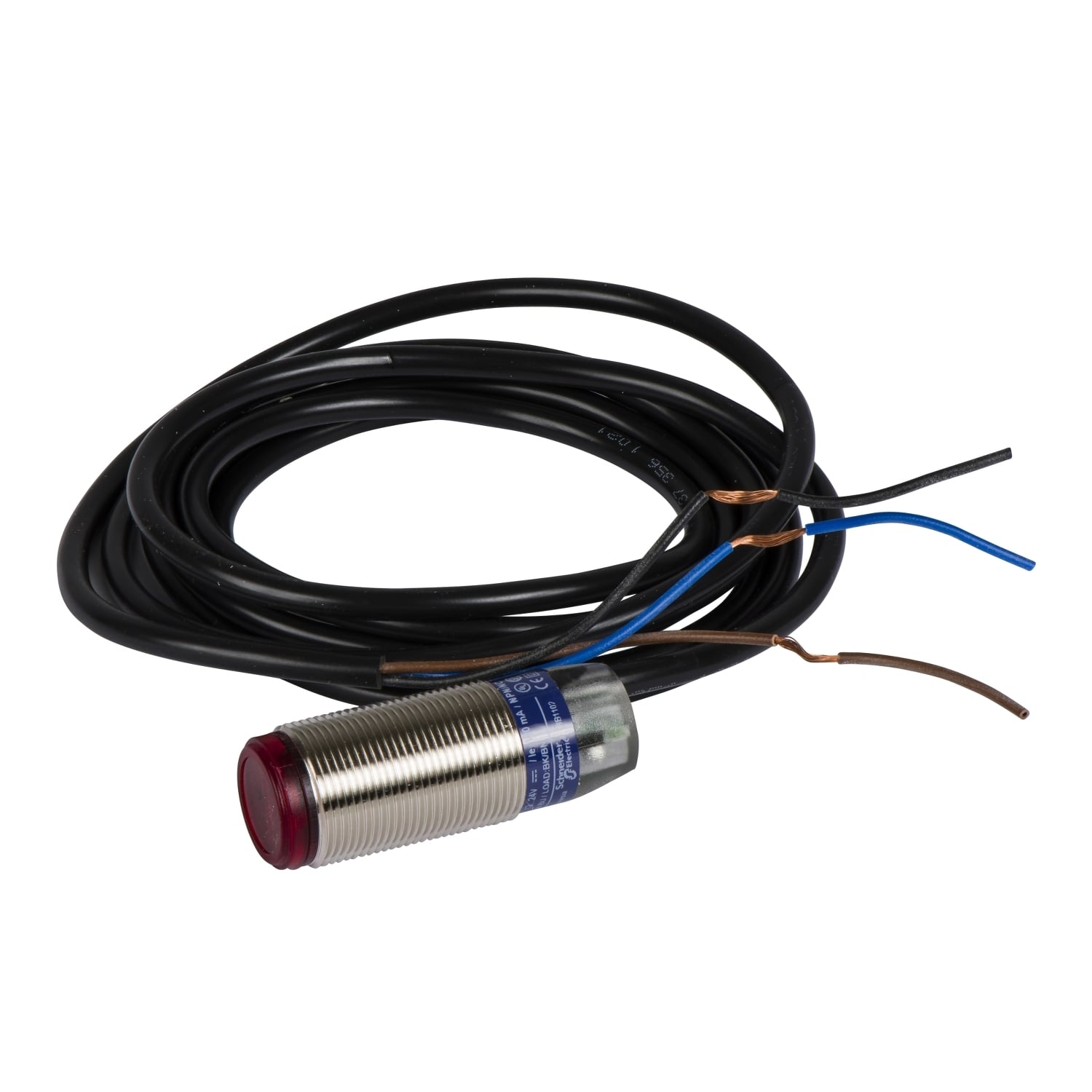

XUB4BNANL2 OsiSense XU XUB Series Single Mode Photoelectric Sensor, Cylindrical Shape, 0.1 m, Infrared Sensing Beam, 1 ms Response, NPN 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUB4BNANL2
UPC:
785901849858
Item #:
840016

Availability

Location Available Qty
Available Available to Order
$175.07 each

This design 18 single mode (diffuse system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUB4BNANL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application -
Connection Cable
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,NICKEL PLATED BRASS
Operating Cycles <= 500 Hz
Output NPN;1 NO;Discrete;Solid state
Sensing Range 0.1-0.1 M DIFFUSE,> 0...0.98 FT (> 0...0.3 M)
Special Features 1 LED yellow)output state
Standard IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529,UL-CE-CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872928&lang=en-us
UPC 785901849858
GTIN 03389110155372
Item Type General purpose single mode;Diffuse;Cylindrical M18;Photo-electric sensor
Size 18 MM,60 MM
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
