Telemecanique

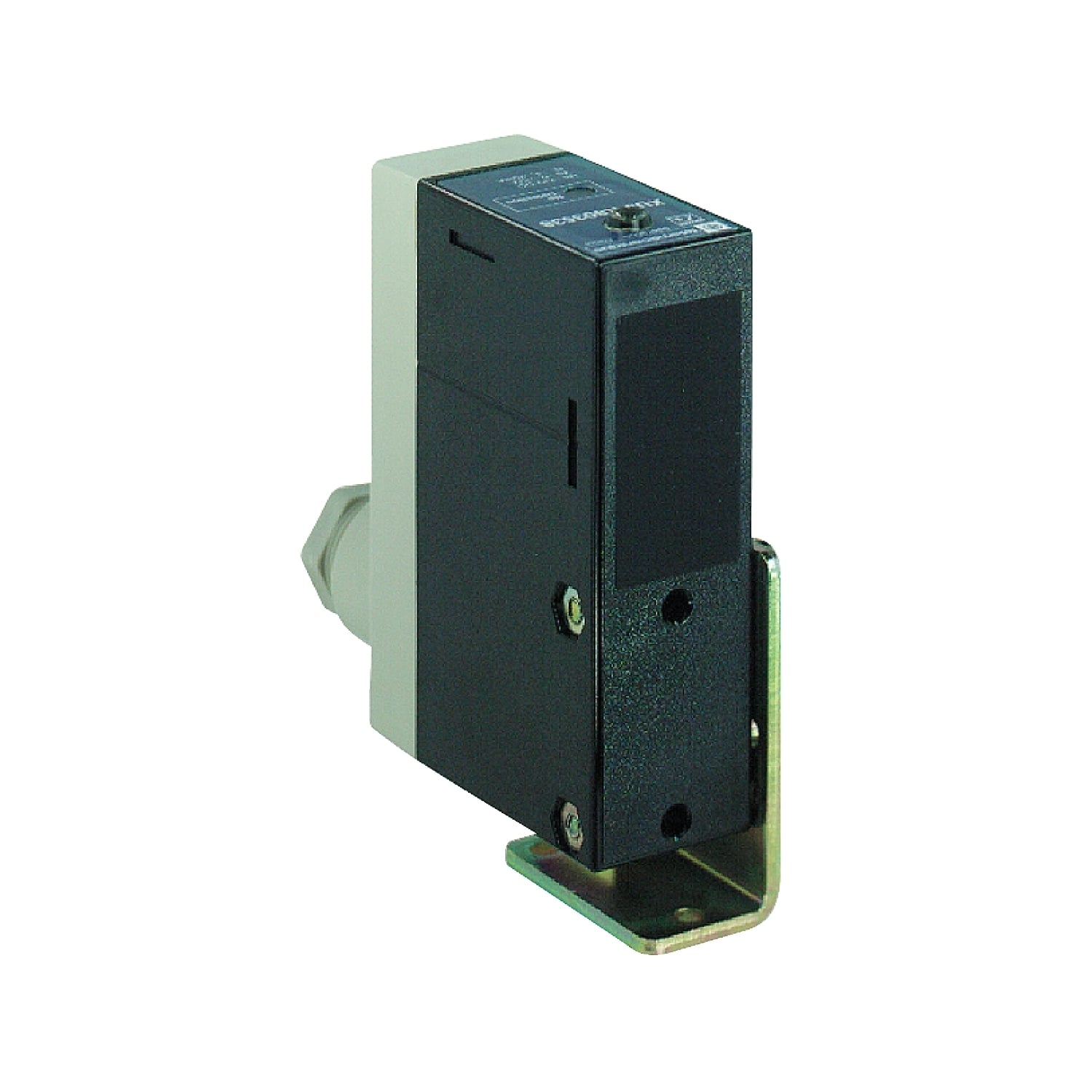

XUJK803538 OsiSense XU Simply Easy 3-Wire Axial Compact Proximity Photoelectric Sensor, 0.8 m, Infrared Sensing Beam, <2 ms Response, PNP Output

MFR:
Telemecanique Sensors
MFR #:
XUJK803538
UPC:
785901156390
Item #:
839176

Availability

Location Available Qty
Available Available to Order
$621.79 each

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUJ compact design. It has a diffuse detection system. It supports 0.2m to 0.8m diffuse nominal sensing distance and solid state analogue output. It is furnished with screw-clamp terminal for electrical connection. It is an IP65 rated product. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC, a no-load current consumption of =35mA and a switching frequency of =250Hz. This photoelectric sensor with infrared diffuse emission has 1 LED for output state. The enclosure is made of PEI. Its dimensions are 18mm (Width) x 50mm (Depth) x 50mm (Height) and weighs 0.07kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by UL, CE and CSA.

Manuals and Documentation
Catalog Number XUJK803538
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connection Screw-clamp terminals, 1 x 2.5...2 x 1.5 mm²
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PEI
Operating Cycles <= 250 Hz
Output PNP;Analogue;Solid state
Sensing Range 0.2-0.8 M DIFFUSE,> 0.98...3.28 FT (> 0.3...1 M)
Special Features 1 LED yellow)output state
Standard CE-UL-CSA,IP65 DOUBLE INSULATION IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873524&lang=en-us
UPC 785901156390
GTIN 03389110622898
Item Type Application material handling;Diffuse;Compact;Photo-electric sensor
Size 1.97
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC
