Telemecanique

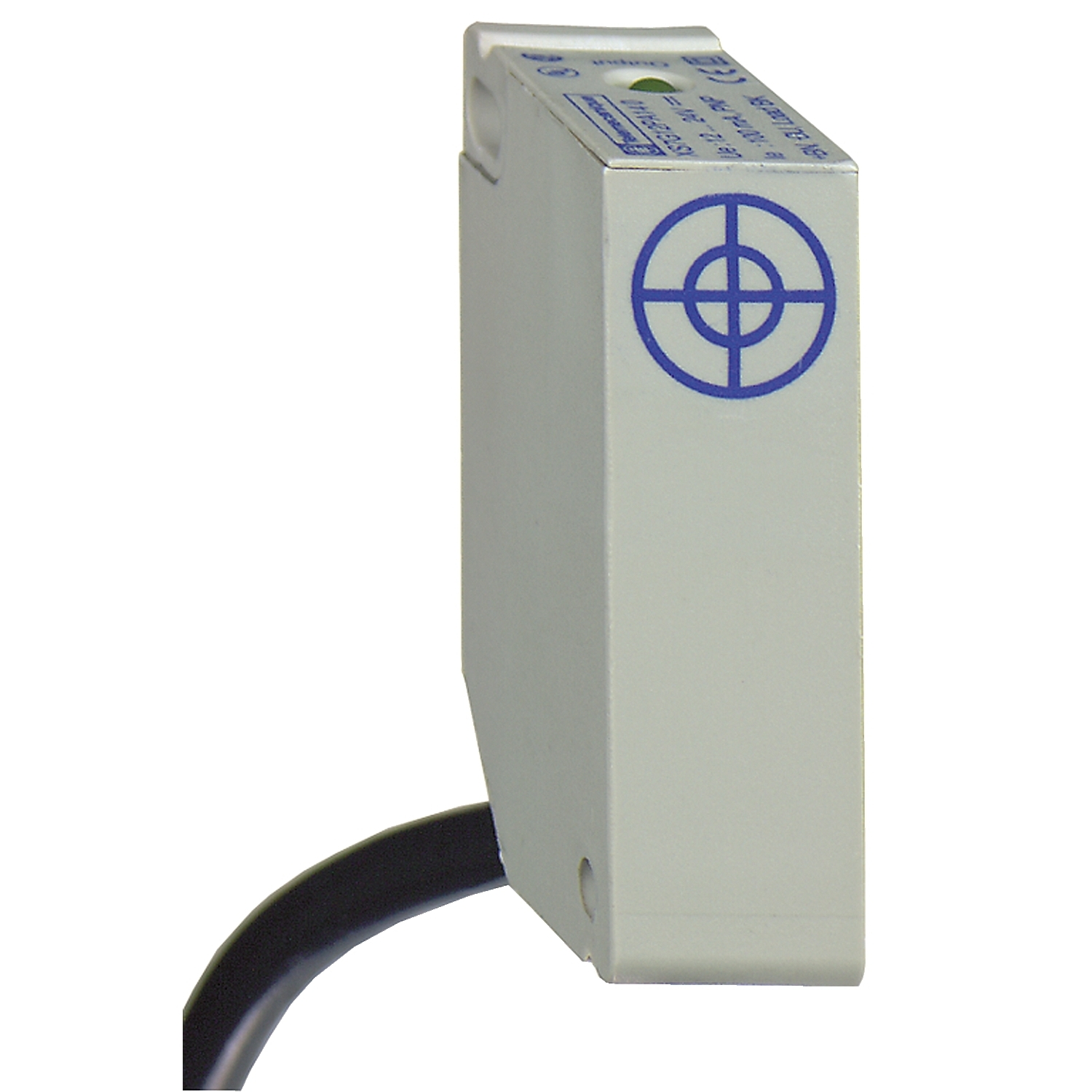

XS7G12MA230 OsiSense XS Fixed Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 VAC/VDC, 24 to 210 VDC, 24 to 240 VAC

MFR:
Telemecanique Sensors
MFR #:
XS7G12MA230
UPC:
785901776703
Item #:
839150

Availability

Location Available Qty
Available Available to Order
$129.22 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. This sensor is dedicated to assembly, packaging and light material handling applications. It is a 12mm x 26mm x 40mm sensor, flush mountable in metal. It features a plastic case and a 2m long PVC cable. It has a sensing distance of 2mm. Two-wire, AC or DC supply, 24V to 240V, NO function.

Manuals and Documentation
Catalog Number XS7G12MA230
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Application -
Connector Cable
Control Output AC/DC 2-WIRE (UNIVERSAL) - 1 N.O.
Enclosure Plastic
Indicator Output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 2 MM,> 0...0.1 IN (> 0...2.5 MM)
Sensor 40 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=870412&lang=en-us
UPC 785901776703
GTIN 03389110776706
Item Type Inductive proximity sensor;Form 12 x 40 x 26
Operating Temperature -25-70 A Degrees C
