Telemecanique

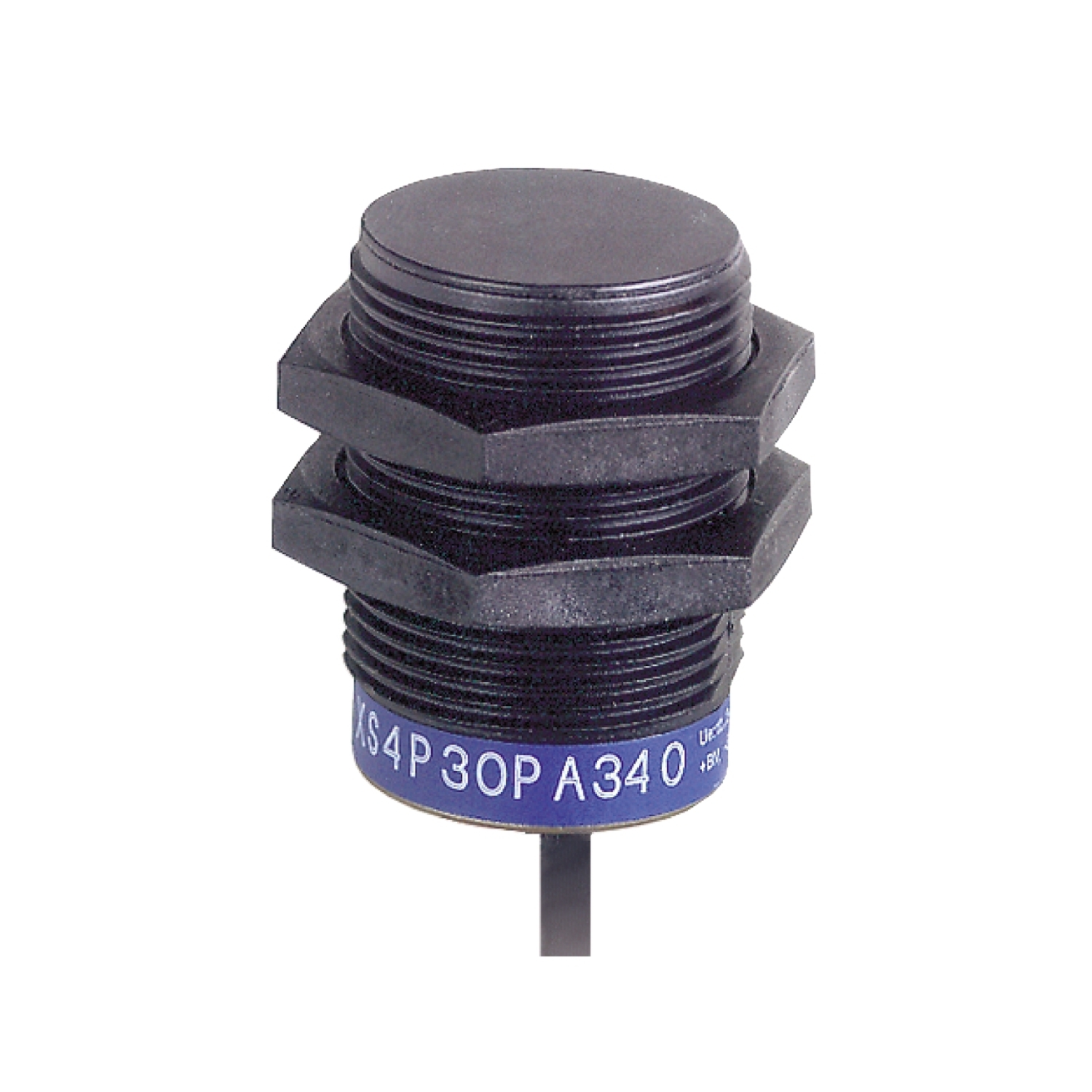

XS4P30NA340 OsiSense XS Fixed Cylindrical Probe Proximity Sensor With Reverse Polarity Protection, Inductive, NPN/Discrete Output, 1NO Contact, 10 to 30/12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS4P30NA340
UPC:
785901913054
Item #:
839139

Availability

Location Available Qty
Available Available to Order
$151.55 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 15mm. Three-wire, DC supply, 12V to 24V, NO function, NPN discrete output. This sensor is ECOLAB certified.

Manuals and Documentation
Catalog Number XS4P30NA340
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application OXISENSE XS
Connector Cable
Control Output 1 NO
Enclosure PPS
Indicator Output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range > 0.31...0.59 IN (> 8...15 MM)
Sensor XS 4
Special Features IP68 DOUBLE INSULATION CONFORMING TO IEC 60529,CABLE
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869238&lang=en-us
UPC 785901913054
GTIN 03389110913057
Item Type Inductive proximity sensor;Cylindrical M30
Operating Temperature -13...158 Degrees F (-25...70 Degrees C)
