Telemecanique

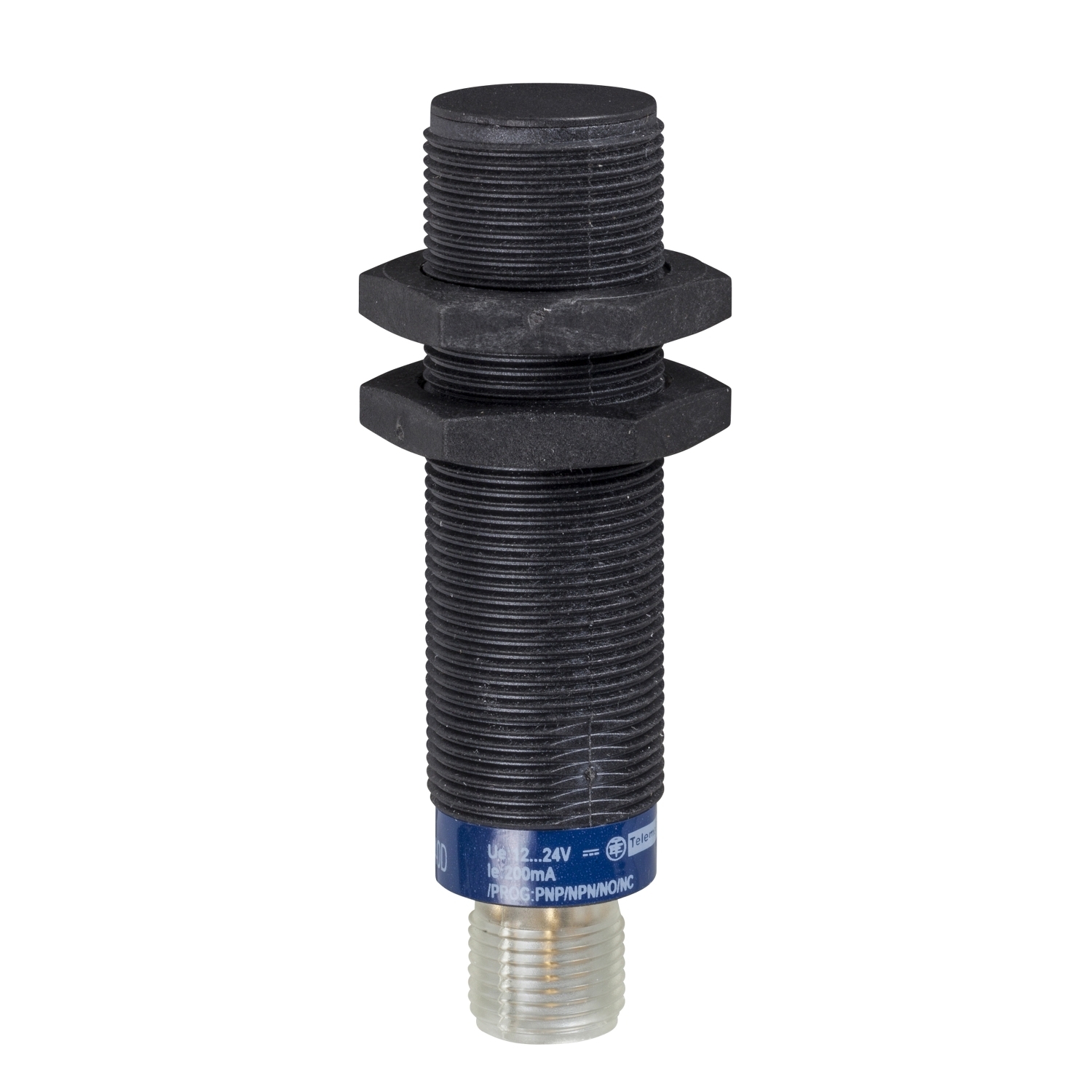

XS4P18MA230K OsiSense XS 2-Wire Fixed Cylindrical Non-Shielded Tubular Inductive Proximity Sensor, Inductive, NPN/Discrete Output, 1NO Contact, 24 to 240 V AC/DC

MFR:
Telemecanique Sensors
MFR #:
XS4P18MA230K
UPC:
785901842460
Item #:
839131

Availability

Location Available Qty
Available Available to Order
$197.53 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a plastic case and a 1/2-20 UNF connector. It has a sensing distance of 8mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified.

Manuals and Documentation
Catalog Number XS4P18MA230K
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connector Male connector 1/2"20 UNF, 3 pins
Enclosure PPS
Indicator Output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 8 MM,> 0.16...0.31 IN (> 4...8 MM)
Sensor 18 MM,70 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...240 V AC/DC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=869032&lang=en-us
UPC 785901842460
GTIN 03389110919356
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
