Telemecanique

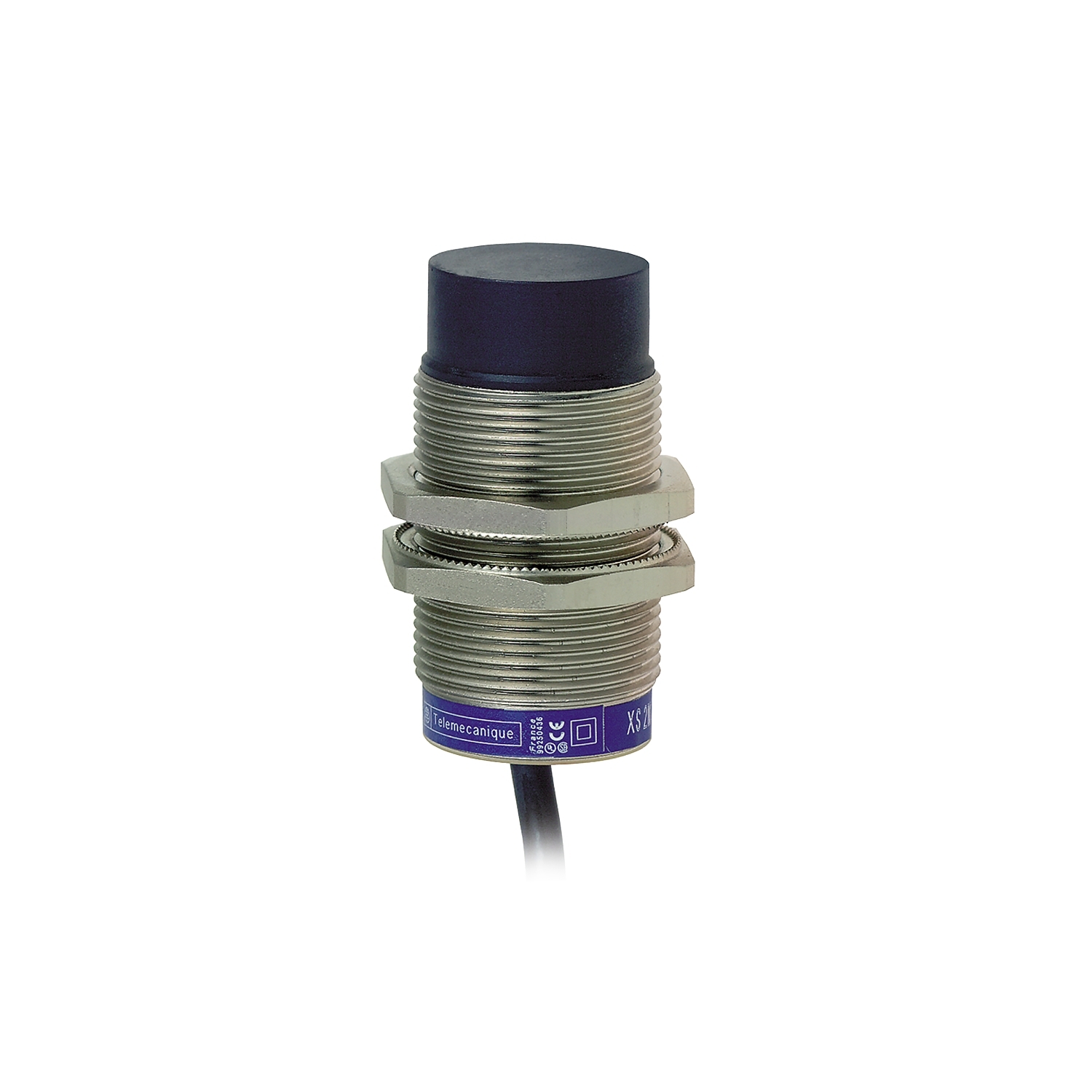

XS2M30KP340 OsiSense XS2 Series Cylindrical Fixed Form Proximity Sensor, Inductive, NPN/PNP/Discrete Output, 1NO-1NC Programmable Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS2M30KP340
UPC:
785901903994
Item #:
839100

Availability

Location Available Qty
Available Available to Order
$189.03 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm. Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO or NC programmable output.

Manuals and Documentation
Catalog Number XS2M30KP340
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application General purpose
Connection Cable
Connector CABLE
Control Output 1 NO OR 1 NC PROGRAMMABLE
Enclosure Nickel Plated Brass
Indicator 1 LED (YELLOW) FOR OUTPUT STATE
Material Metal
Mounting Flush
Output PNP and NPN;1 NO or 1 NC programmable;Discrete;DC
Sensing Range > 0.31...0.59 IN (> 8...15 MM)
Sensor XS 2
Special Features Output state 1 LED yellow);Frontal
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 12...24 V DC WITH REVERSE POLARITY PROTECTION
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=868378&lang=en-us
UPC 785901903994
GTIN 03389110533507
Item Type Inductive proximity sensor
Operating Temperature -25...70 Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
