Telemecanique

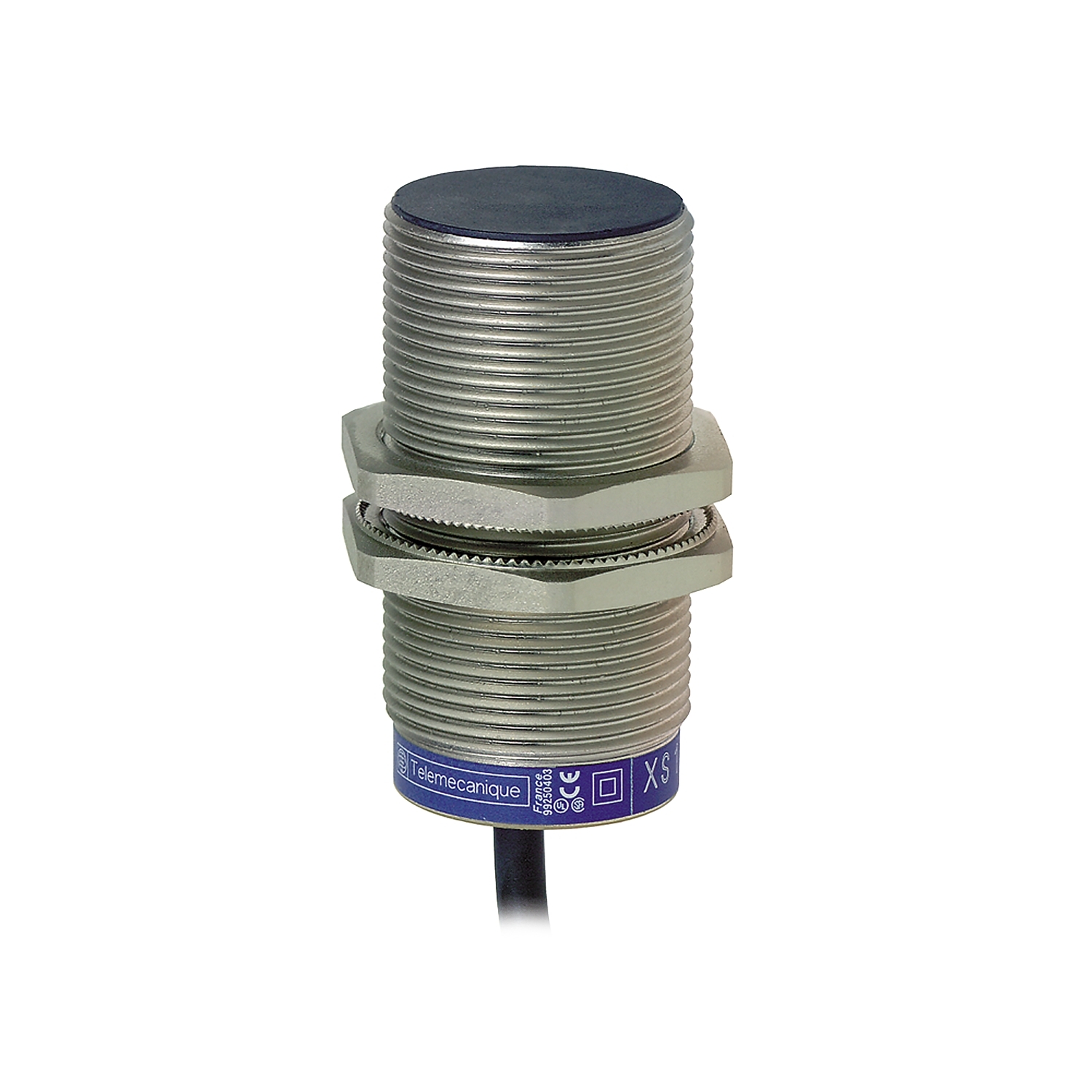

XS1M30MA250 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 VAC/VDC, 24 to 240 VAC, 24 to 210 VDC

MFR:
Telemecanique Sensors
MFR #:
XS1M30MA250
UPC:
785901910633
Item #:
839083

Availability

Location Available Qty
Available Available to Order
$265.66 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a multivoltage, cylindrical, flush mountable sensor. Diamter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 15mm. Two-wire, AC or DC supply, 24V to 240V, NO output, with short-circuit protection.

Manuals and Documentation
Catalog Number XS1M30MA250
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application 2-wire DC short-circuit protection
Connector Cable
Control Output 1 NO
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow);supply on 1 LED green)
Material Metal
Mounting Flush
Sensing Range 10 MM,> 0.31...0.59 IN (> 8...15 MM)
Sensor 30 MM,60 MM,INDUCTIVE PROXIMITY SENSOR
Special Features SHORT-CIRCUIT PROTECTION
Standard IP68 double insulation conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866994&lang=en-us
UPC 785901910633
GTIN 03389110916034
Item Type Inductive proximity sensor;Cylindrical M30
Operating Temperature -25-70 A Degrees C
