Telemecanique

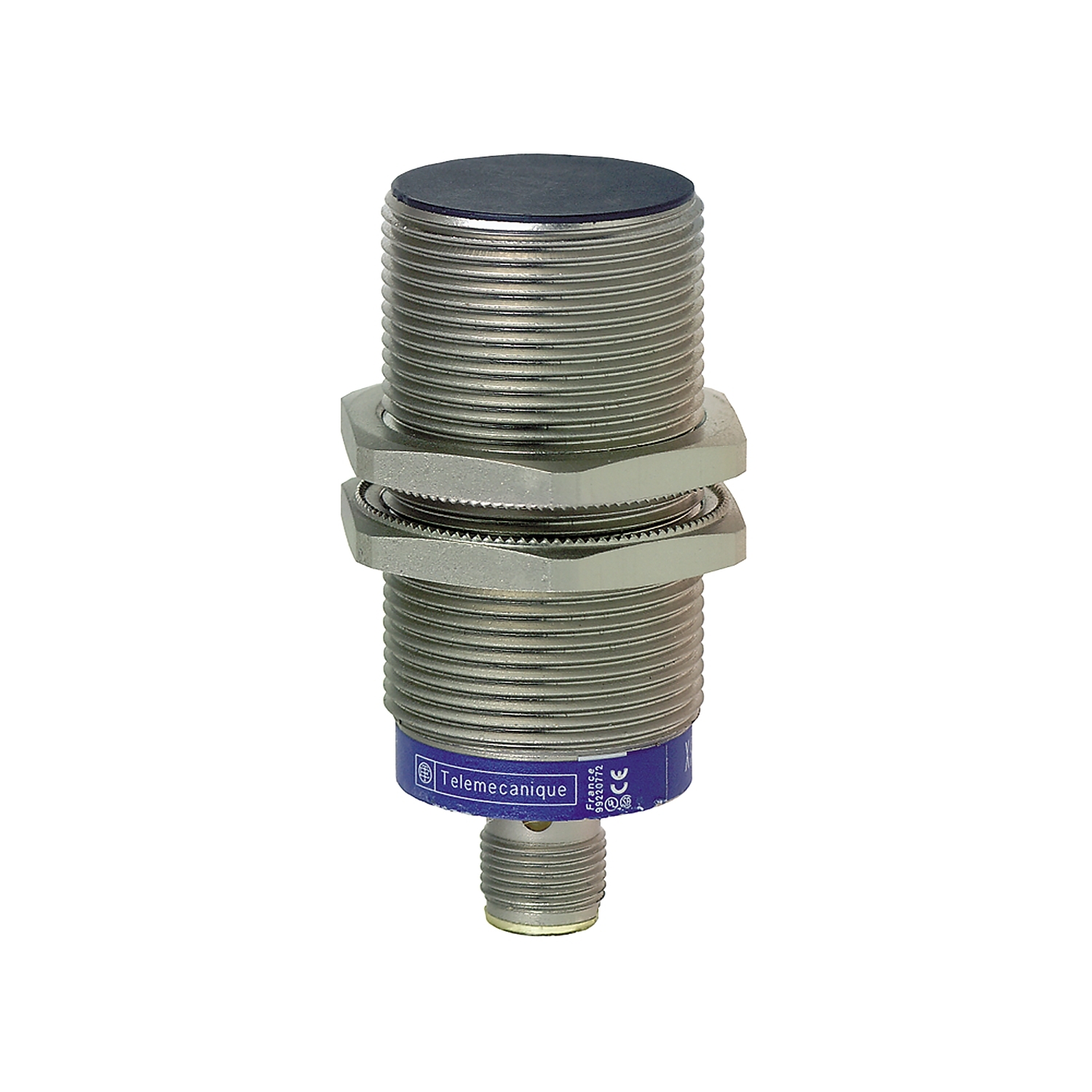

XS1M30KP340D OsiSense XS1 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Discrete/PNP/NPN Output, 1NO-1NC (Programmable) Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M30KP340D
UPC:
785901913498
Item #:
839082

Availability

Location Available Qty
Available Available to Order
$178.81 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a M12 connector. It has a sensing distance of 10mm Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO or NC programmable output.

Manuals and Documentation
Catalog Number XS1M30KP340D
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Male connector M12, 4 pins
Control Output 1 NO OR 1 NC (PROGRAMMABLE)
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range 10 MM,> 0.31...0.59 IN (> 8...15 MM)
Sensor 30 MM,72 MM,INDUCTIVE PROXIMITY SENSOR
Special Features METAL
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866938&lang=en-us
UPC 785901913498
GTIN 03389110515107
Item Type Inductive proximity sensor;Cylindrical M30
Operating Temperature -25-70 A Degrees C
