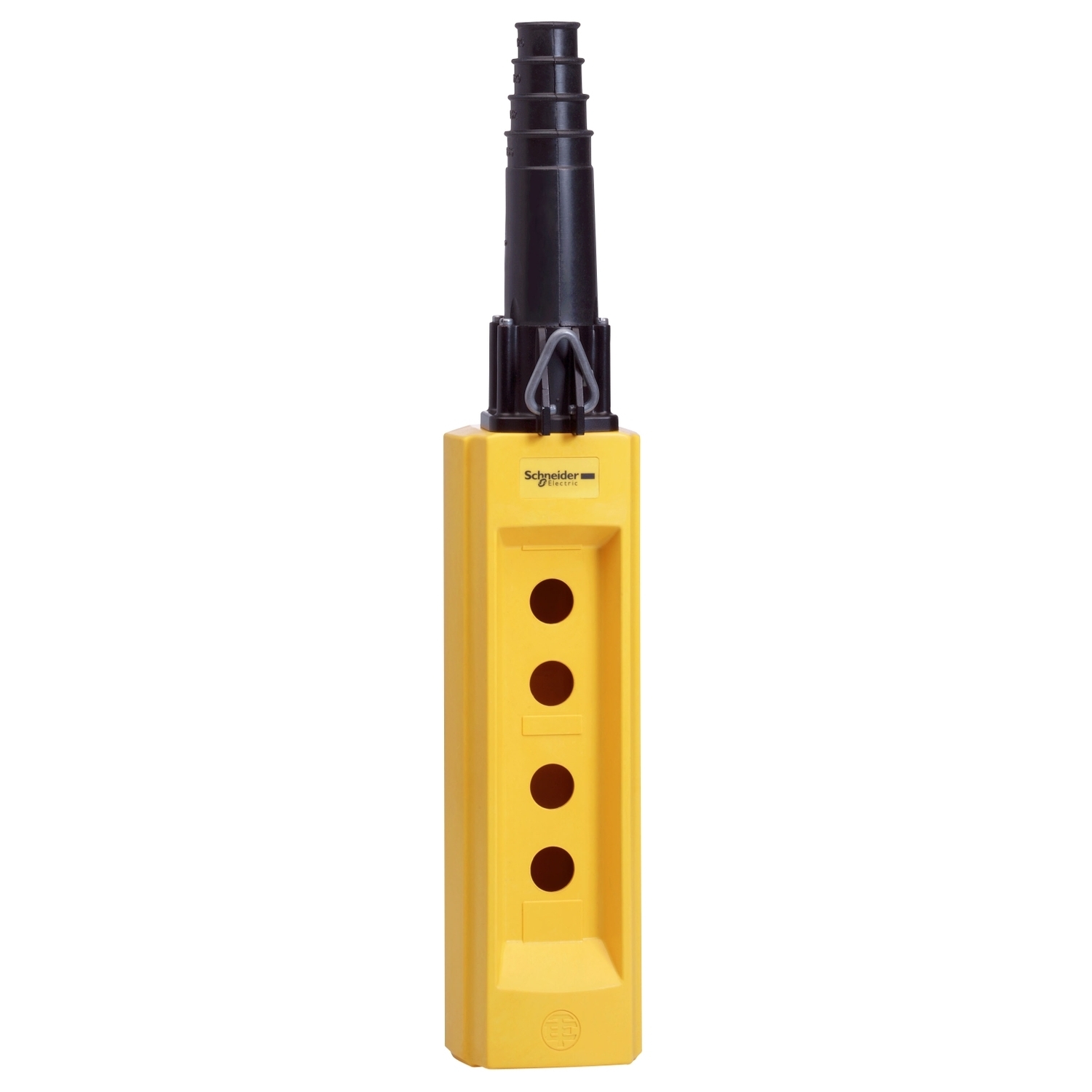

XACB04 Harmony 4-Cutout Double Insulated Medium Duty Pendant Control Station, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACB04
Item #:
839058

Availability

Location Available Qty
Available Available to Order
$361.20 each

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 4 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Manuals and Documentation
Catalog Number XACB04
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Power circuit;control circuit
Cable Entry Rubber sleeve with stepped entry 10-22 mm
Enclosure Glass reinforced polyester
Special Features Empty enclosure
Standard CSA type 4;IK08 conforming to IEC 62262;CSA C22.2 No 14;IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673796&lang=en-us
GTIN 03389110640502
Item Type Pendant control station;Double insulated
