Appleton

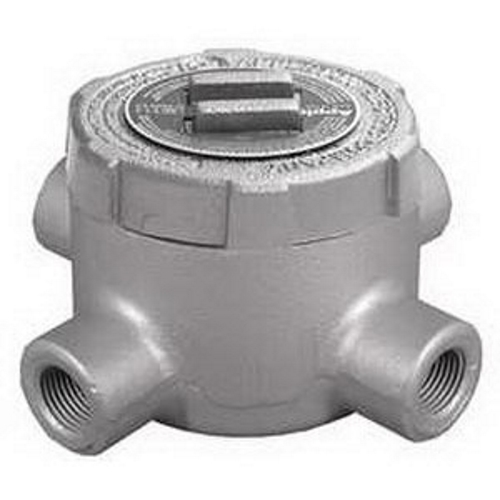

Unilets; GU Conduit Outlet Box; 19 Cubic-Inch, Zinc Electroplated Dichromate Epoxy Powder-Coated Malleable Iron

MFR:
Appleton Electric
MFR #:
GUX75
UPC:
781381517515
Item #:
8387

Availability

Location Available Qty
Available Available to Order
$186.34 each

UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (4) 3/4 IN GUX Hub, Cubic Capacity: 19 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 4.28 IN, Width: 4.28 IN, Depth: 2-1/4 IN, Finish: Tri

Manuals and Documentation

Features

  • Dimension: 5.090 Inch Length x 2.970 Inch Height
Catalog Number GUX75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (4) 3/4 IN GUX Hub
Cubic Capacity 19 CU IN
Knockouts No
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover and cover gasket; General purpose wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Internal ground screw standard; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444 , CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified; Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381517515
GTIN 00781381517515
Item Type Outlet Box
Length 13.5000
Length UOM Inch
Width 10.1000
Width UOM Inch
Height 1.2000
Height UOM Inch
Weight 3.450
Weight UOM Pounds
Size 3/4
