Discontinued
Square D

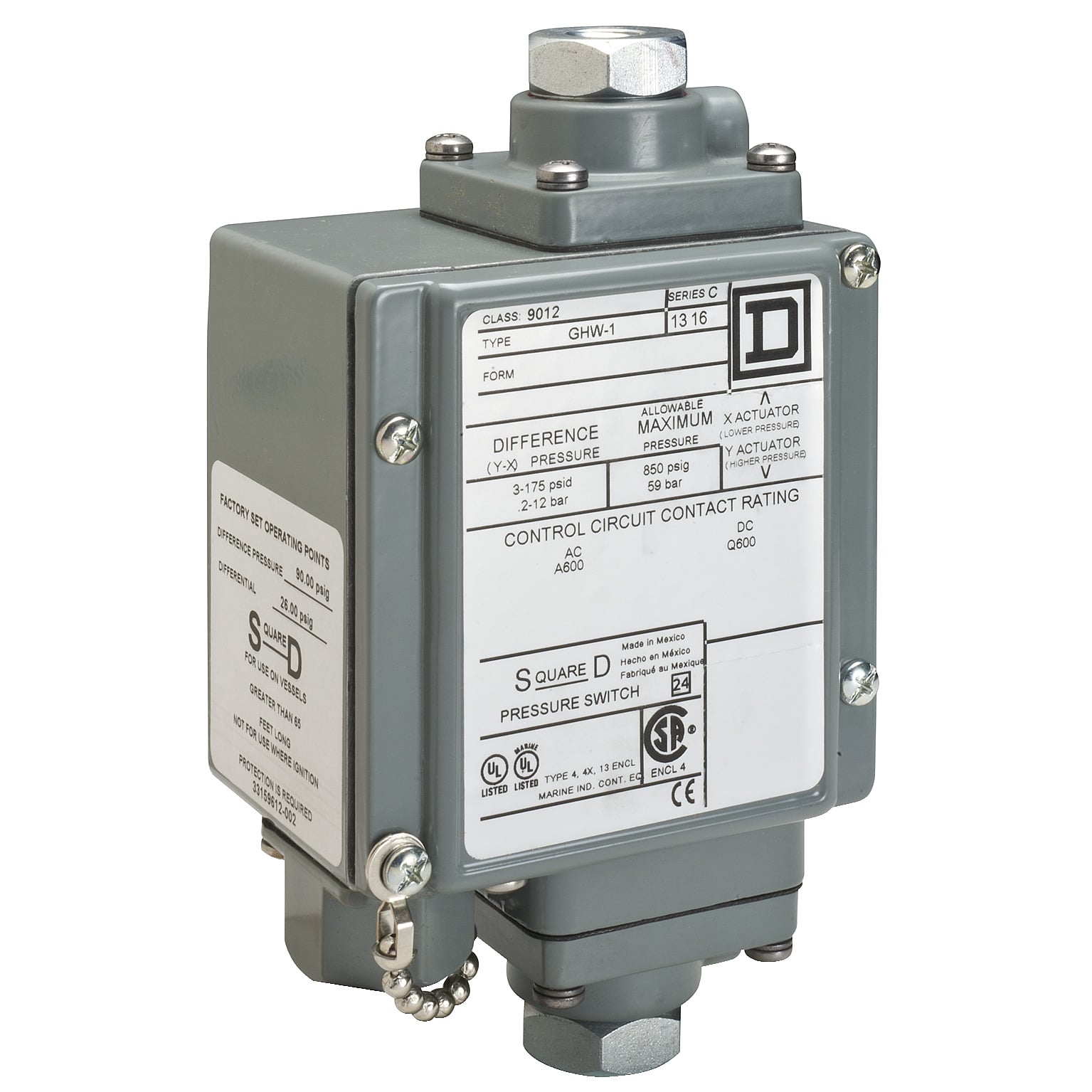

9012GHW21 High Pressure Electromechanical Pressure Switch, 0 to 500 psi Pressure, 22 to 90 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection

MFR:
Schneider Electric
MFR #:
9012GHW21
UPC:
785901348733
Item #:
838634

Availability

Location Available Qty
Available Available to Order

pressure switch 9012G - adjustable scale - 2 thresholds - 0 to 500 psig

Manuals and Documentation
Catalog Number 9012GHW21
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Application MONITORS THE DIFFERENCE BETWEEN 2 THRESHOLDS
Contact Configuration 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380
Operating Cycles 120 CYC/MN
Process Connection 0.25 INCH 18 NPTF UL 508
Special Features SCREW-CLAMP TERMINALS, AWG 22...AWG 12
Standard CE-CSA C22.2 NO 14-UL 508,CE-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03
UPC 785901348733
GTIN 00785901348733
Item Type 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -10-185 A Degrees F
System Pressure 500 PSI,850 PSI
