Discontinued

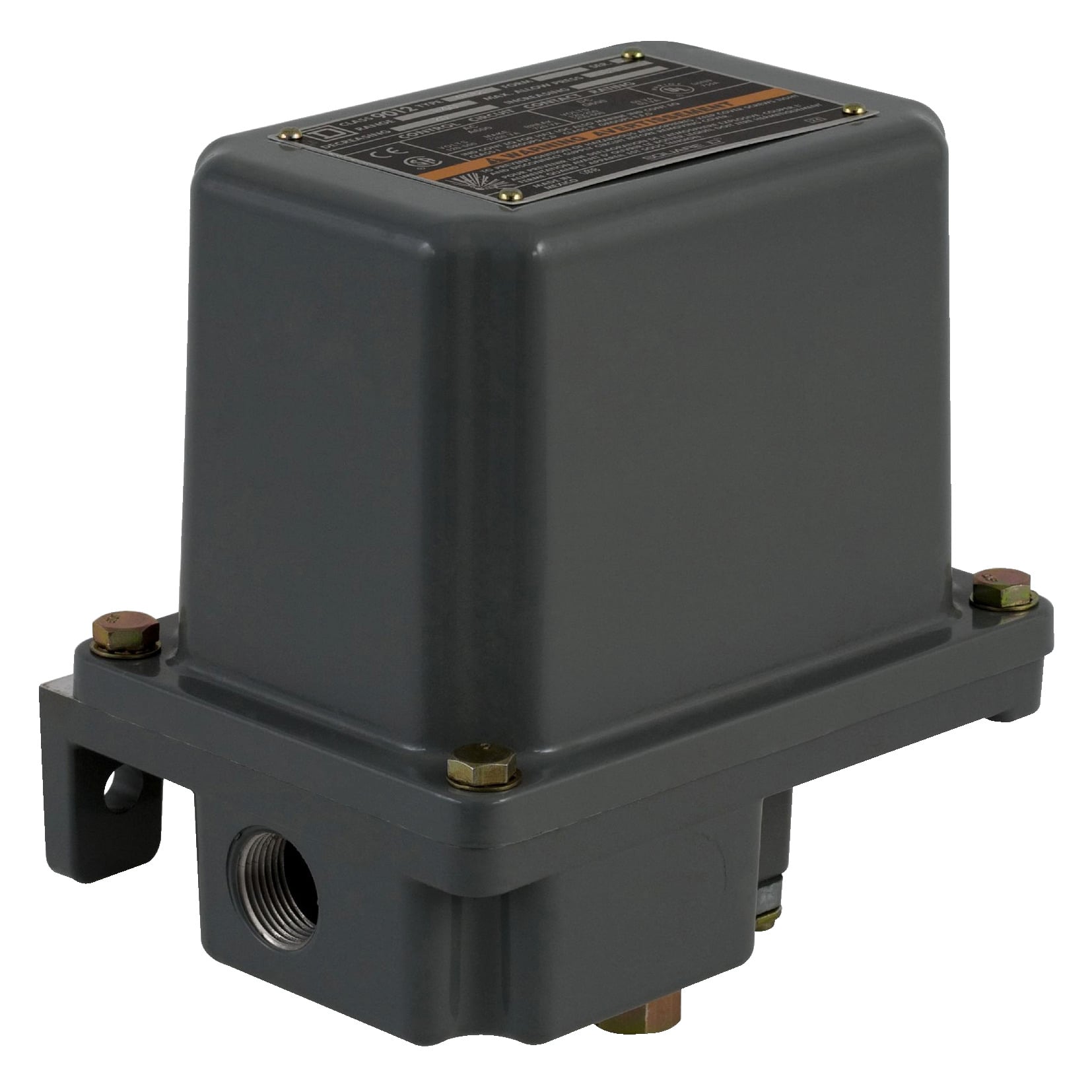

9012GDR5 1-Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 psi Differential, 1CO SPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GDR5
- UPC:
- 785901861676
- Item #:
- 838616
Discontinued
9012GDR5 1-Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 psi Differential, 1CO SPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GDR5
- UPC:
- 785901861676
- Item #:
- 838616
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - fixed scale - 1 threshold - 3.0 to 150 psig
Manuals and Documentation
| Catalog Number | 9012GDR5 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | DETECTION OF 1 SINGLE THRESHOLD |
| Contact Configuration | NC-NO, SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 7/9 UL 698,CAST ALUMINIUM |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CE-UL LISTED FILE E12443 CCN NOWT-CSA LR26817 CLASS 3218 02,CSA C22.2 NO 14-CE-UL 508 |
| UPC | 785901861676 |
| GTIN | 00785901861676 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ELECTROMECHANICAL PRESSURE SWITCH,FIXED |
| Environmental Conditions | FOR HAZARDOUS LOCATION USAGE - EXPLOSION PROOF (INDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 150 PSI,475 PSI |
