Discontinued

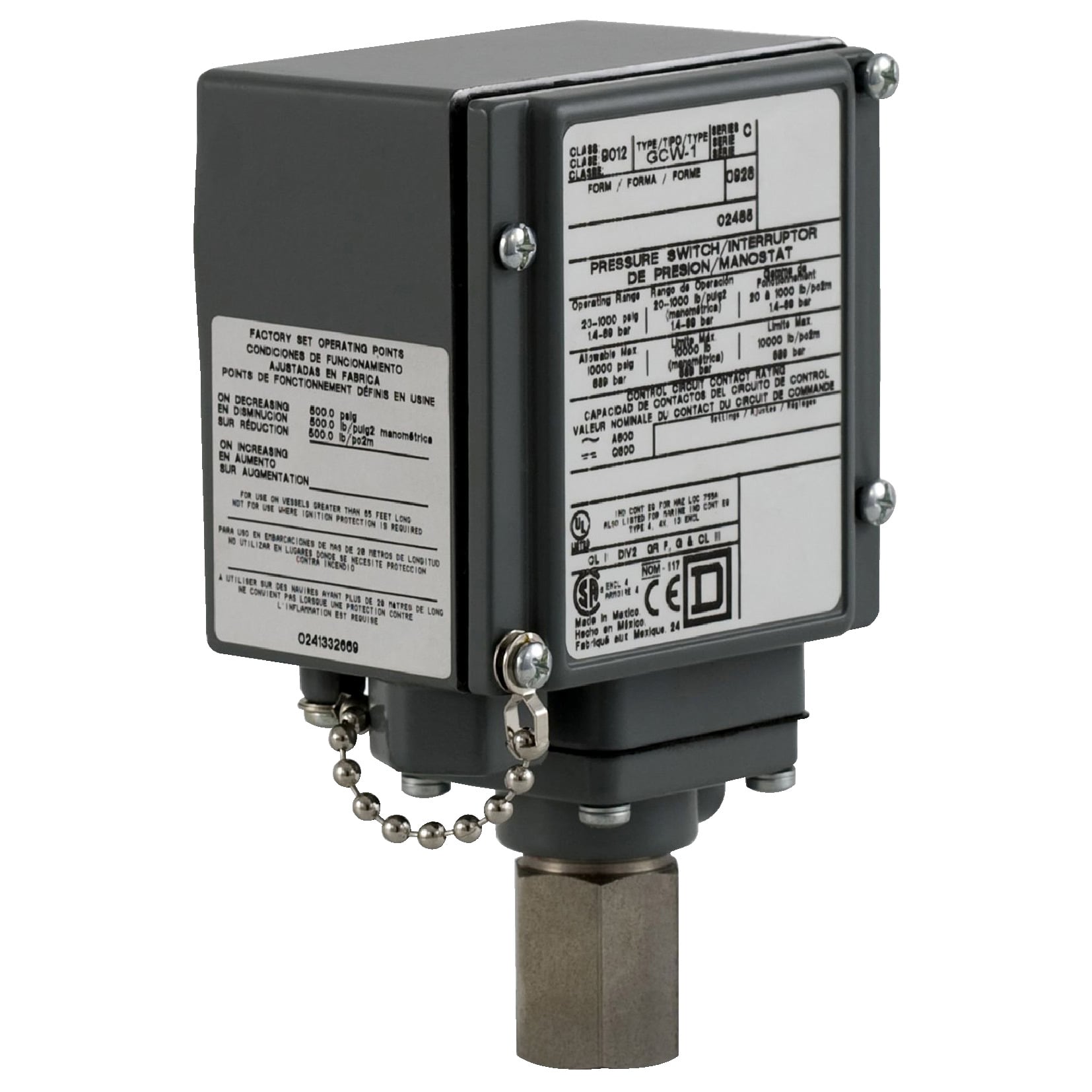

9012GCW21Z18 1-Stage Electromechanical Pressure Switch, 20 to 1000 psi Pressure, 59 to 200 psi Differential, DPDT (Isolated) Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GCW21Z18
- UPC:
- 785901047896
- Item #:
- 838606
Discontinued
9012GCW21Z18 1-Stage Electromechanical Pressure Switch, 20 to 1000 psi Pressure, 59 to 200 psi Differential, DPDT (Isolated) Contact, Screw Clamp Connection
- MFR #:
- 9012GCW21Z18
- UPC:
- 785901047896
- Item #:
- 838606
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - adjustable scale - 2 thresholds - 20 to 1000 psig
Manuals and Documentation
| Catalog Number | 9012GCW21Z18 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Regulation between 2 thresholds;Control circuit |
| Contact Configuration | 2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts |
| Enclosure | Die cast aluminium alloy 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.44 INCH 20 UNF-2B UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CSA C22.2 NO 14-UL 508-CE,UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03-CE |
| UPC | 785901047896 |
| GTIN | 00785901047896 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 1000 |
