Discontinued
Square D

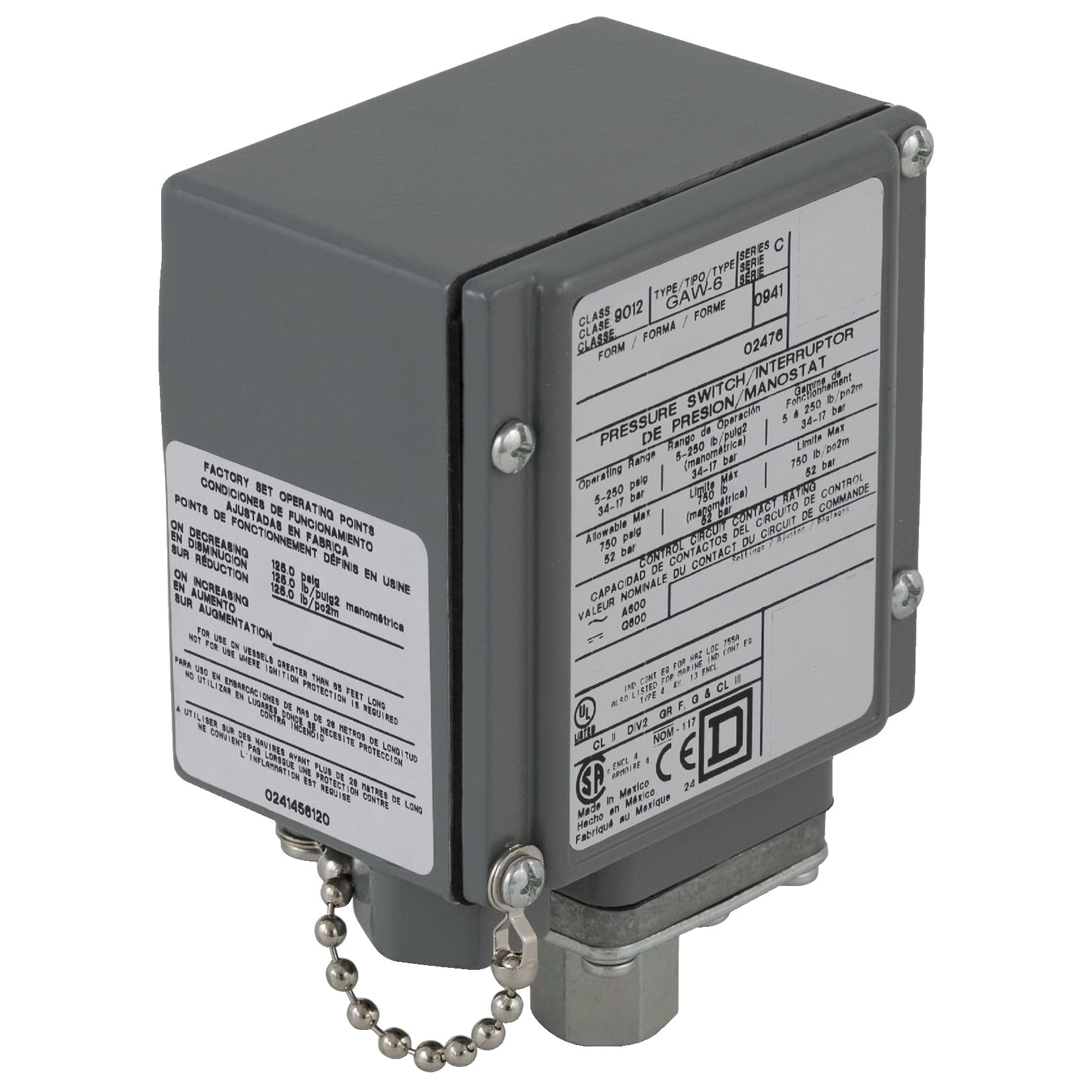

9012GAW25Z18 Single Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, DPDT (Isolated) Contact, Screw Clamp Connection

MFR:
Schneider Electric
MFR #:
9012GAW25Z18
UPC:
785901047537
Item #:
838582

Availability

Location Available Qty
Available Available to Order

pressure switch 9012G - adjustable scale - 2 thresholds - 3.0 to 150 psig

Manuals and Documentation
Catalog Number 9012GAW25Z18
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Application REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380
Operating Cycles 120 CYC/MN
Process Connection 0.44 INCH 20 UNF-2B UL 508
Special Features SCREW-CLAMP TERMINALS, AWG 22...AWG 12
Standard CE-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03,CSA C22.2 NO 14-CE-UL 508
UPC 785901047537
GTIN 00785901047537
Item Type 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -10-185 A Degrees F
System Pressure 150 PSI,475 PSI
