Discontinued

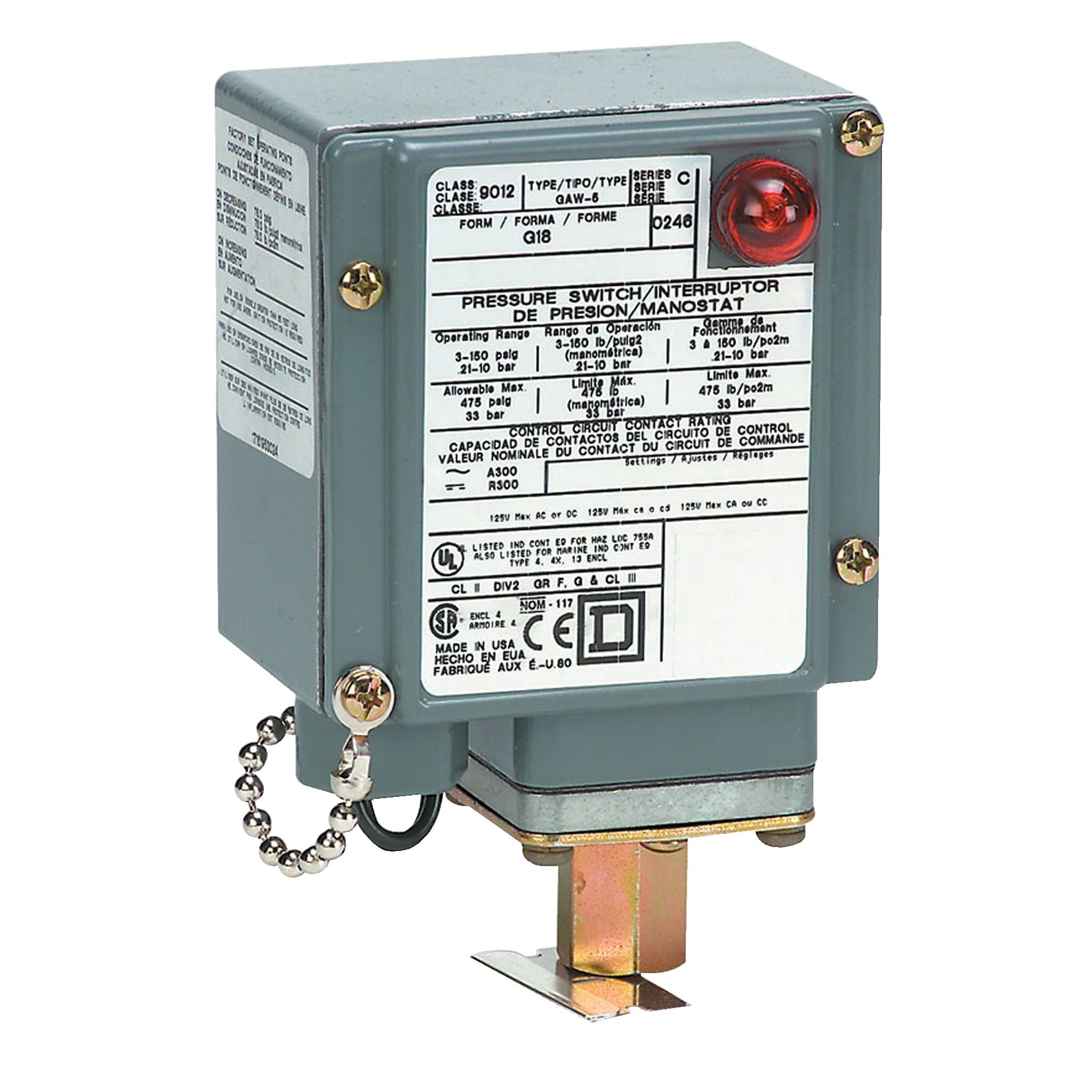

9012GAW25G18 1-Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GAW25G18
- UPC:
- 785901701637
- Item #:
- 838581
Discontinued
9012GAW25G18 1-Stage Low Pressure Electromechanical Pressure Switch, 3 to 150 psi Pressure, 6 to 30 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GAW25G18
- UPC:
- 785901701637
- Item #:
- 838581
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - adjustable scale - 2 thresholds - 3.0 to 150 psig
Manuals and Documentation
| Catalog Number | 9012GAW25G18 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CE-CSA LR25490 CLASS 3211 03-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT,UL 508-CSA C22.2 NO 14-CE |
| UPC | 785901701637 |
| GTIN | 00785901701637 |
| Item Type | 6 A 120 V AC-0.22 A 125 V DC,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 150 PSI,475 PSI |
