Discontinued
Square D

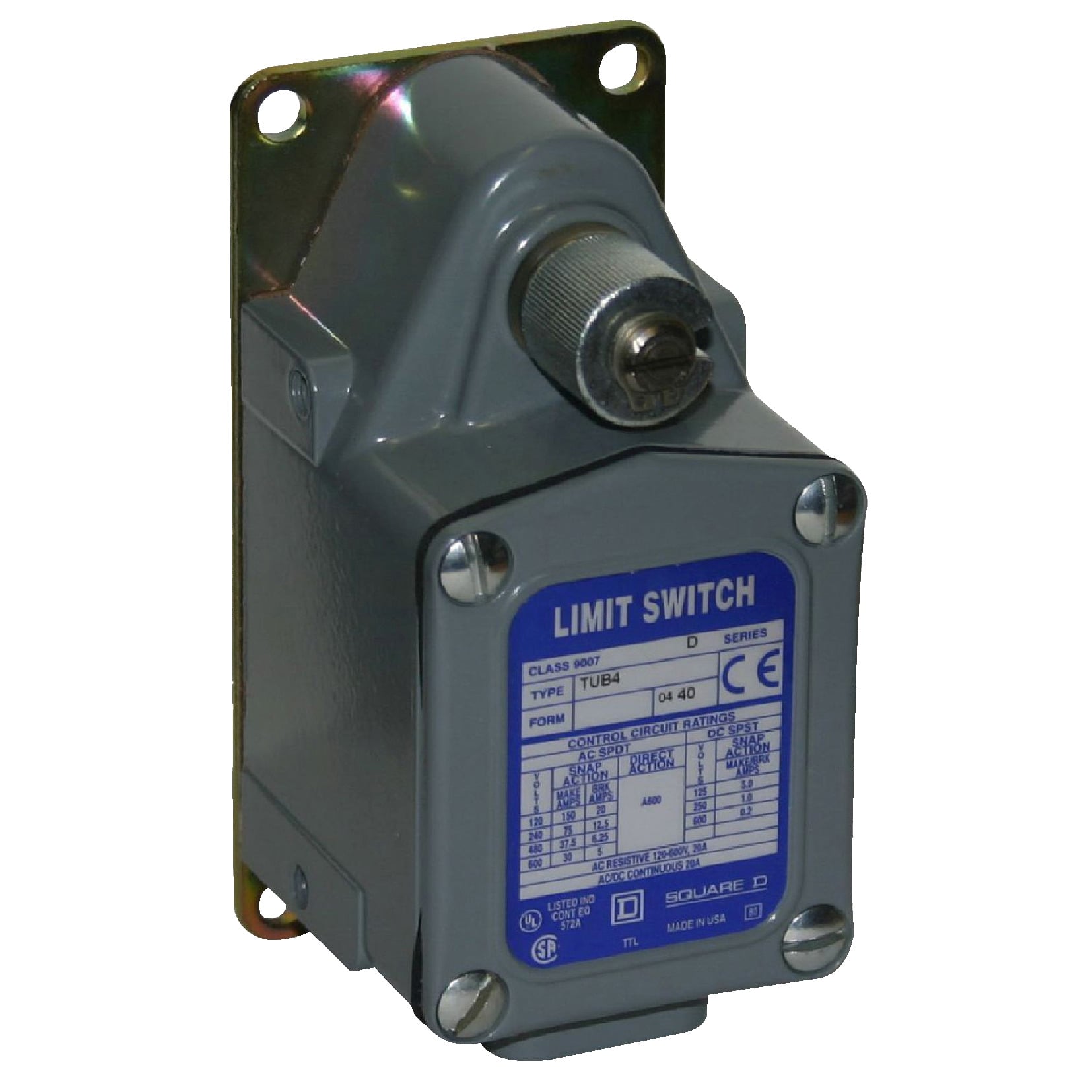

9007TSB2 Severe Duty Mill Limit Switch, 600 VAC, 30 A, Lever Actuator, 1NC+1NO, Form Z 3-Point SPDT-SB Contact, 1 Pole

MFR:
Schneider Electric
MFR #:
9007TSB2
UPC:
785901334224
Item #:
838567

Availability

Location Available Qty
Available Available to Order

9007T mill limit switch - standard - spring return - CW+CCW - 1/2" NPT

Manuals and Documentation
Catalog Number 9007TSB2
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action FROM LEFT OR RIGHT-CW AND CCW,LATERAL APPROACH,SNAP ACTION
Actuator SPRING RETURN WITHOUT OPERATING LEVER
Amperage Rating 20
Application STANDARD MILL SWITCH
Connection SCREW-CLAMP TERMINALS AWG 22...AWG 12
Contact Configuration FORM Z 3-POINT DT-SB
Contact Rating NEMA A600/P600
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Insulation 600V
Mounting By The Body
Special Features 2 STAGES SEQUENTIAL,FIXED
Standard 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901334224
GTIN 00785901334224
Item Type LIMIT SWITCH,ROTARY HEAD
Size 2.25 IN,2.44 IN,4.66-4.66 IN
Operating Temperature -10-185 A Degrees F
