Discontinued
Square D

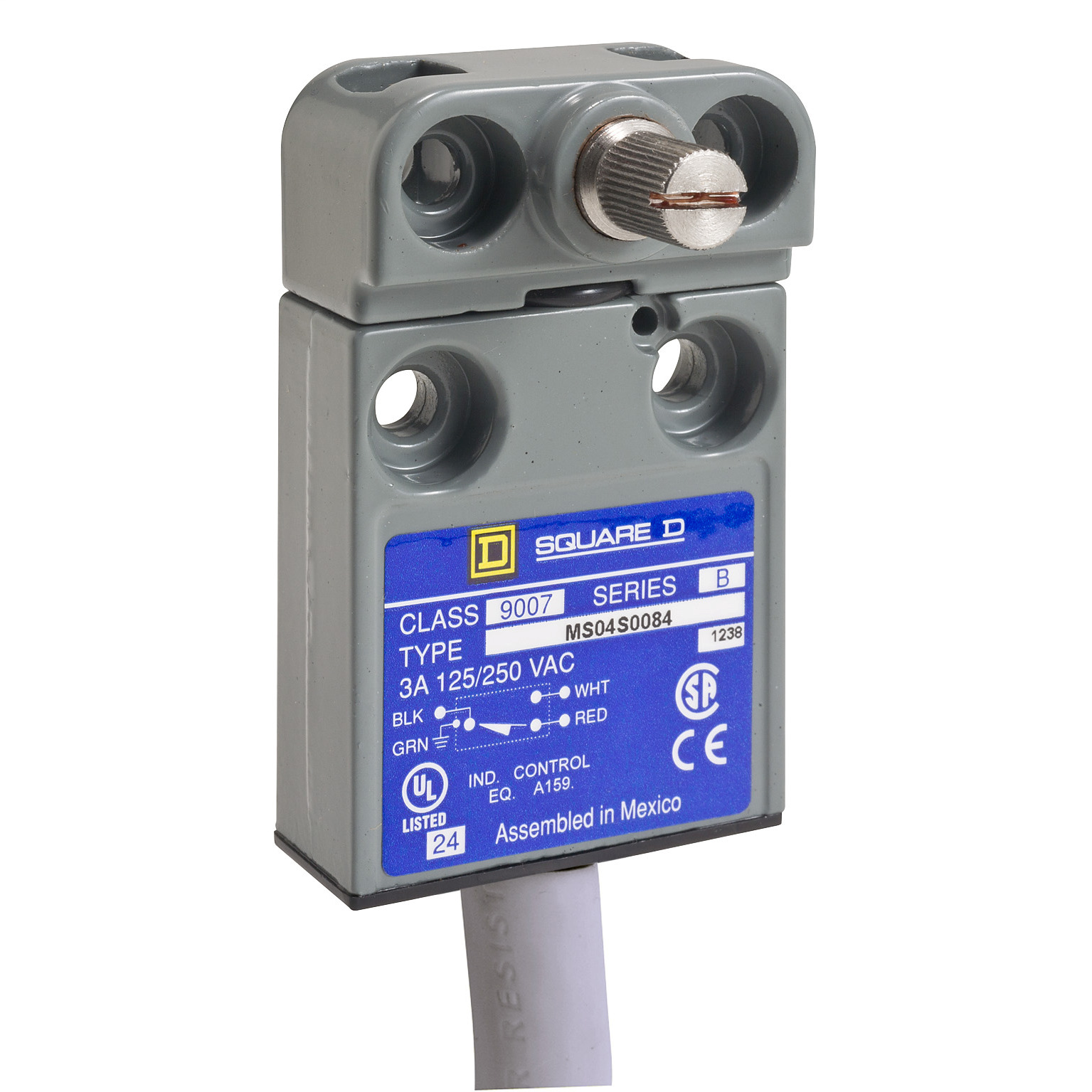

9007MS04S0510 Fixed Miniature Potted Limit Switch, 240 VAC, 10 A, 1CO SPDT Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
9007MS04S0510
UPC:
785901166146
Item #:
838557

Availability

Location Available Qty
Available Available to Order

LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Manuals and Documentation
Catalog Number 9007MS04S0510
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action CW AND CCW-FROM LEFT AND RIGHT,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION
Actuator SPRING RETURN WITHOUT OPERATING LEVER -
Amperage Rating 10
Application 9007MS/ML,MINIATURE POTTED,ROTARY HEAD
Connection PRE-WIRED CABLE BOTTOM
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Mounting By The Body
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529,UL-CE-CSA
UPC 785901166146
GTIN 00785901166146
Item Type LIMIT SWITCH,ROTARY HEAD
Size 0.62 IN,1.56 IN,2.49-2.49 IN
Operating Temperature -40-220 A Degrees F
Voltage Rating 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC
