Discontinued
Square D

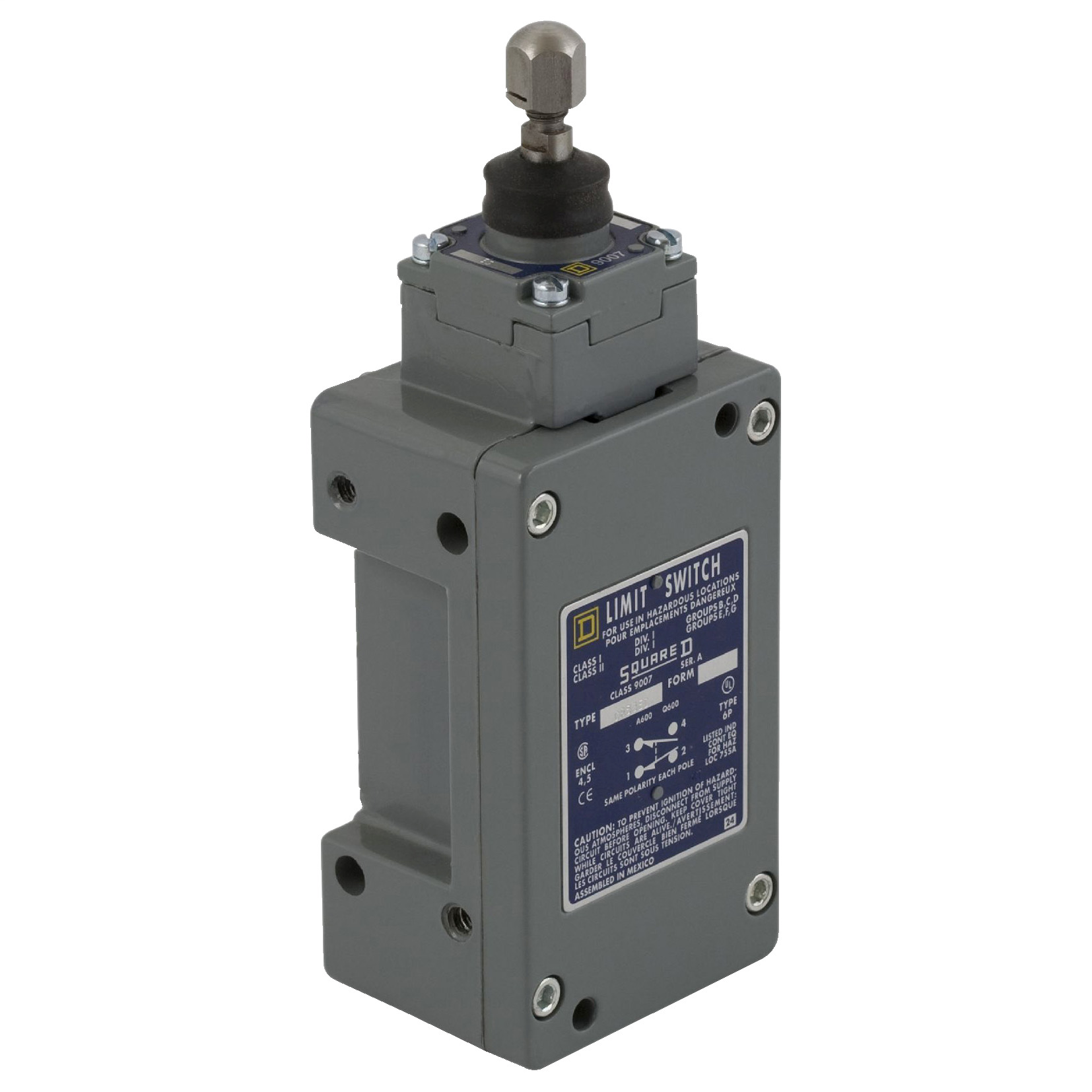

9007CR65ED Heavy Duty Limit Switch, 600 V, 10 A, 2NO-2NC Contact, 2 Poles

MFR:
Schneider Electric
MFR #:
9007CR65ED
UPC:
785901348375
Item #:
838474

Availability

Location Available Qty
Available Available to Order

9007CR limit switch - 2 NO/NC 2 stage - top push rod plunger - adjustable

Manuals and Documentation
Catalog Number 9007CR65ED
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action ON END,SNAP ACTION,VERTICAL APPROACH, 1 DIRECTION
Actuator STAINLESS STEEL SPRING RETURN PLUNGER ADJUSTABLE)
Amperage Rating 10
Application HAZARDOUS LOCATION BOX
Connection SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Contact Configuration 2(NC-NO)
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Operating Cycles 1000000 CYCLES
Special Features WITHOUT
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901348375
GTIN 00785901348375
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 2.08 IN,2.72 IN,7.11-7.11 IN
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F HAZARDOUS LOCATION
Voltage Rating 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA
