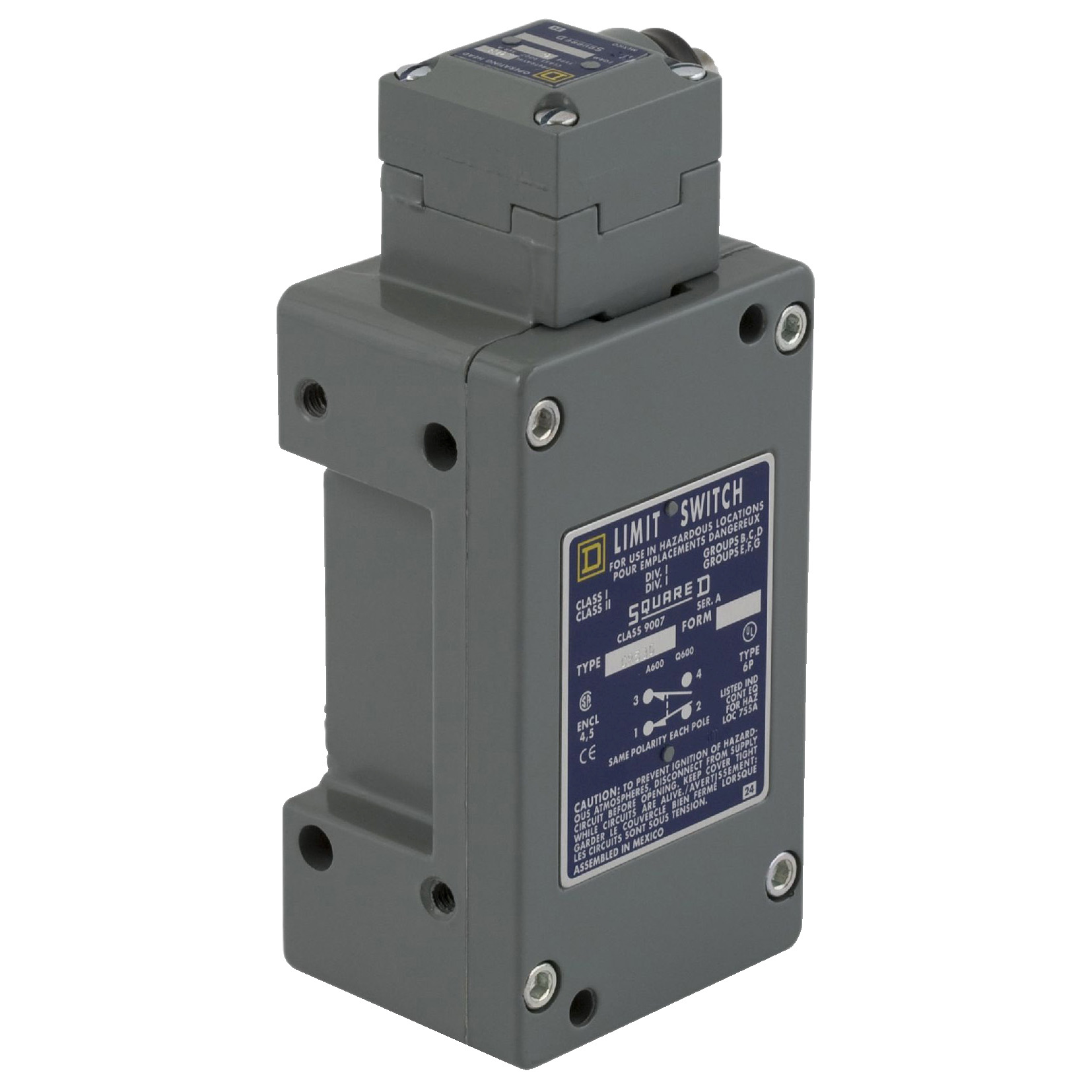

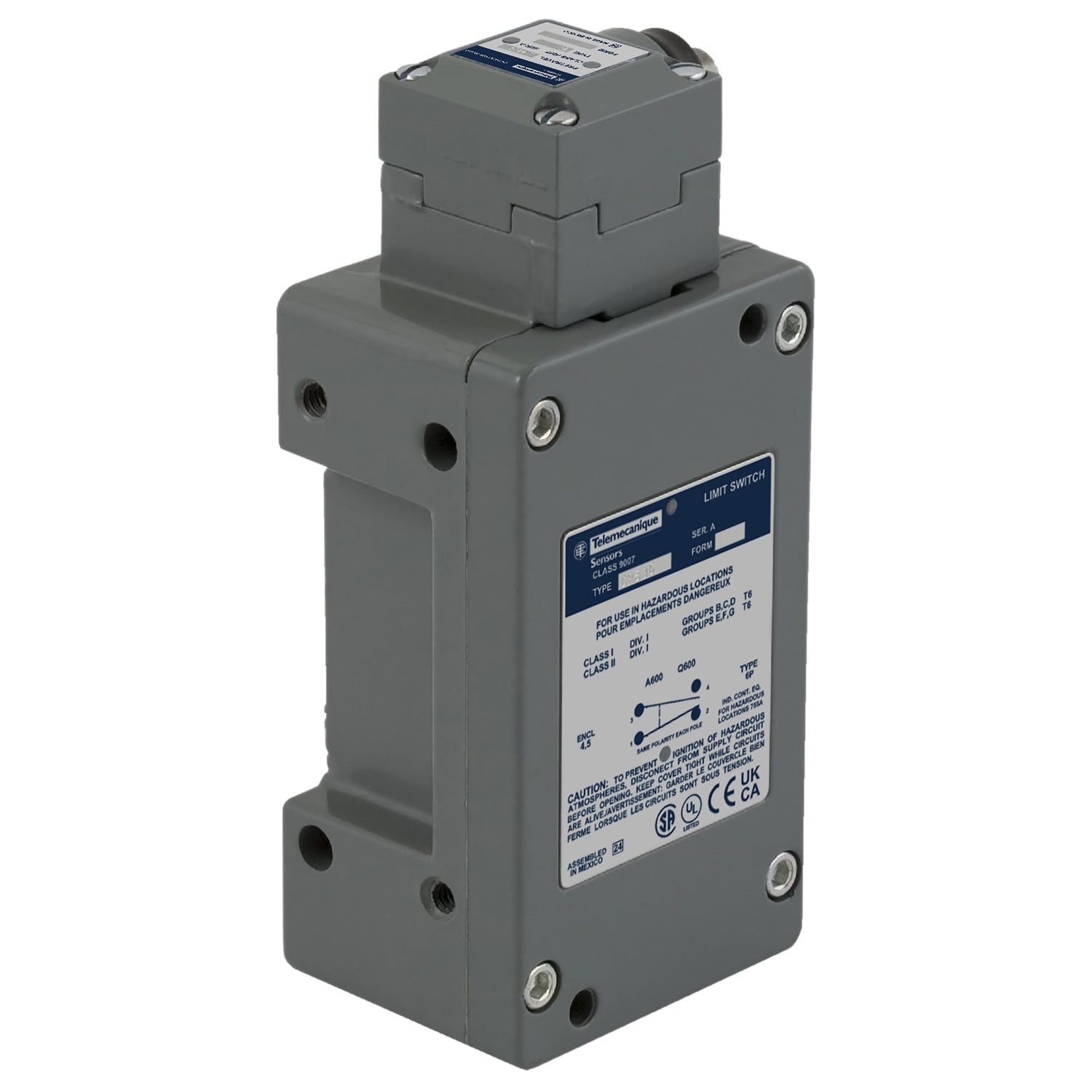

9007CR53G Heavy Duty Limit Switch, 600 V, 10 A, Side Plunger Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Pole
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007CR53G
- UPC:
- 785901763390
- Item #:
- 838467
9007CR53G Heavy Duty Limit Switch, 600 V, 10 A, Side Plunger Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Pole
- MFR #:
- 9007CR53G
- UPC:
- 785901763390
- Item #:
- 838467
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$611.22
each
LIMIT SWITCH 600V 10AMP C +OPTIONS
Manuals and Documentation
| Catalog Number | 9007CR53G |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | On end;Lateral approach, 1 direction;Snap action |
| Actuator | Stainless steel spring return side plunger -) |
| Amperage Rating | 10 |
| Application | Hazardous location box |
| Connection | Screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Contact Configuration | NC-NO;Form Z |
| Contact Rating | NEMA A600/Q600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 1000000 CYCLES |
| Special Features | without |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901763390 |
| GTIN | 00785901763390 |
| Item Type | Limit switch |
| Size | 2.48 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -20-185 A Degrees F HAZARDOUS LOCATION |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA-0.27 A 250 V AC, Q600 NEMA-0.55 A 125 V DC, Q600 NEMA |
