Discontinued
8501XDO40V51 Type X Control Relay, 10 A AC/5 A DC, 12 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501XDO40V51
- UPC:
- 785901061663
- Item #:
- 838180
Discontinued

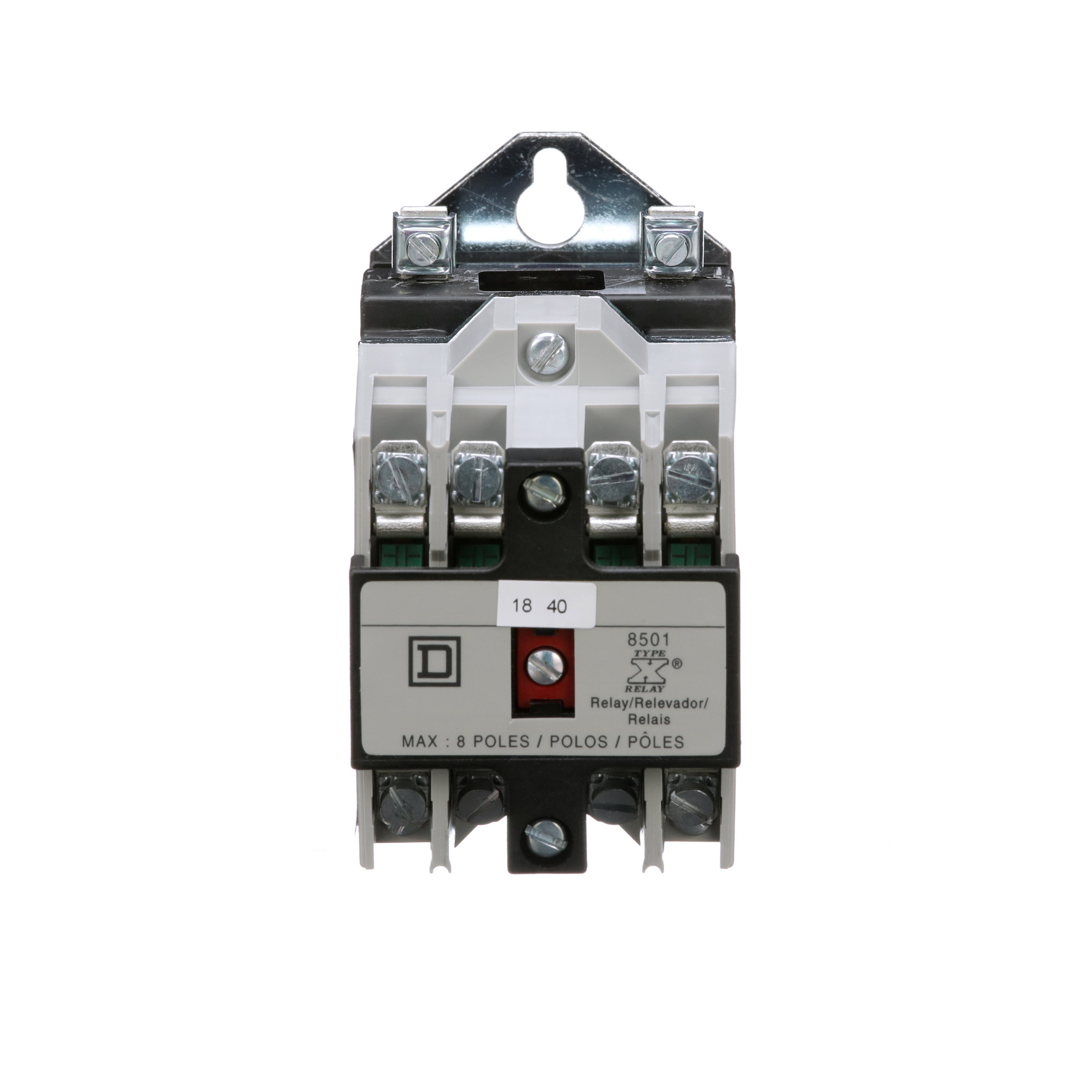

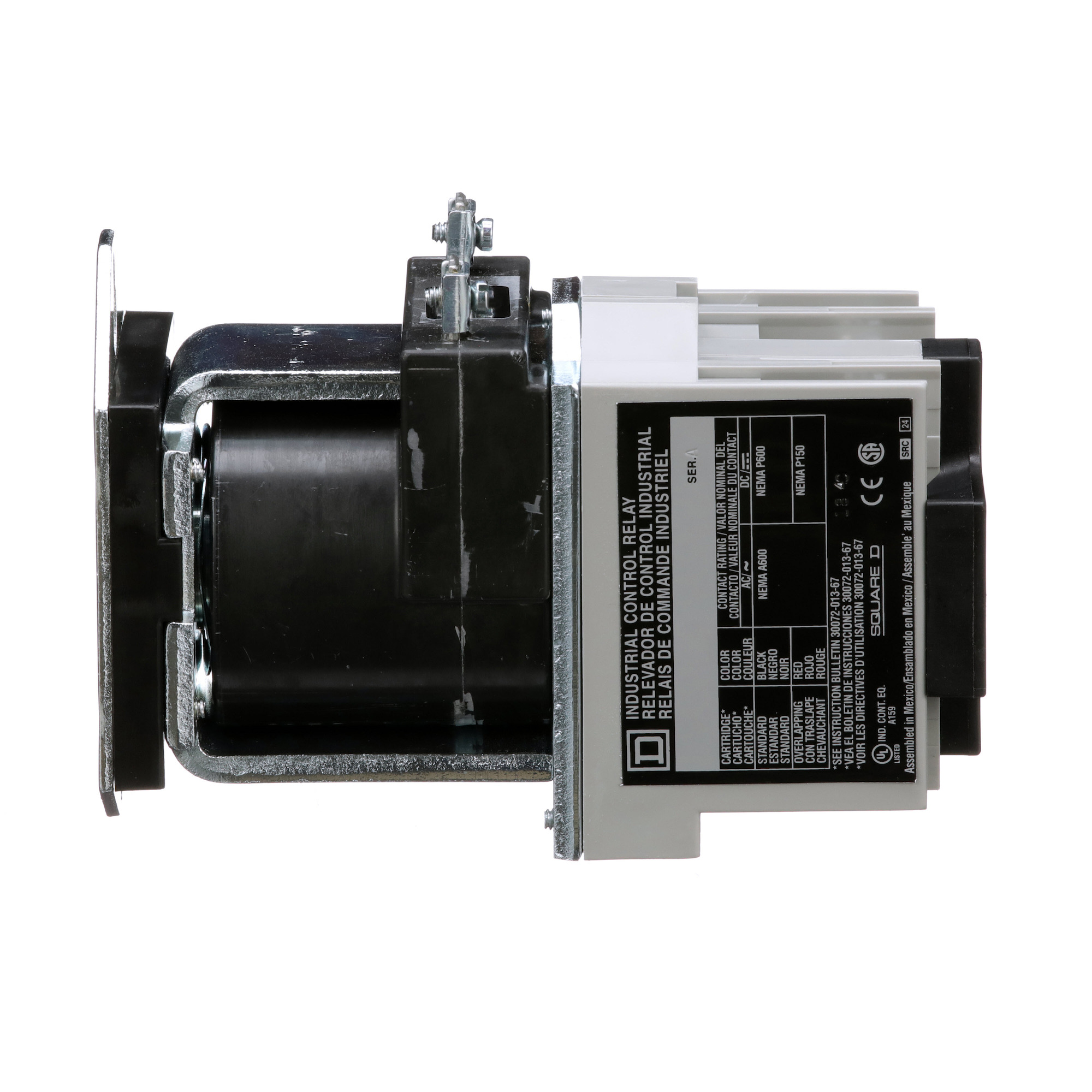

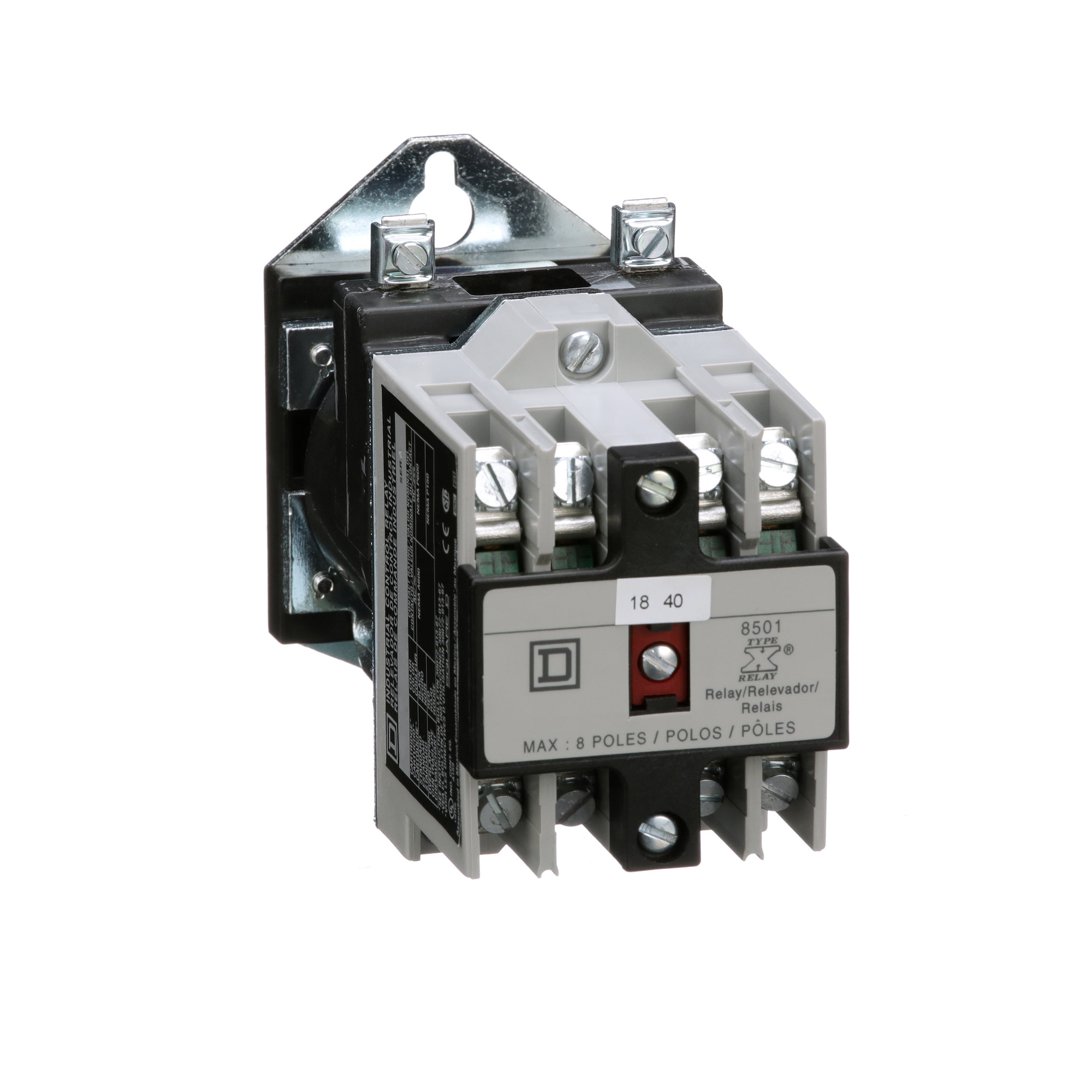

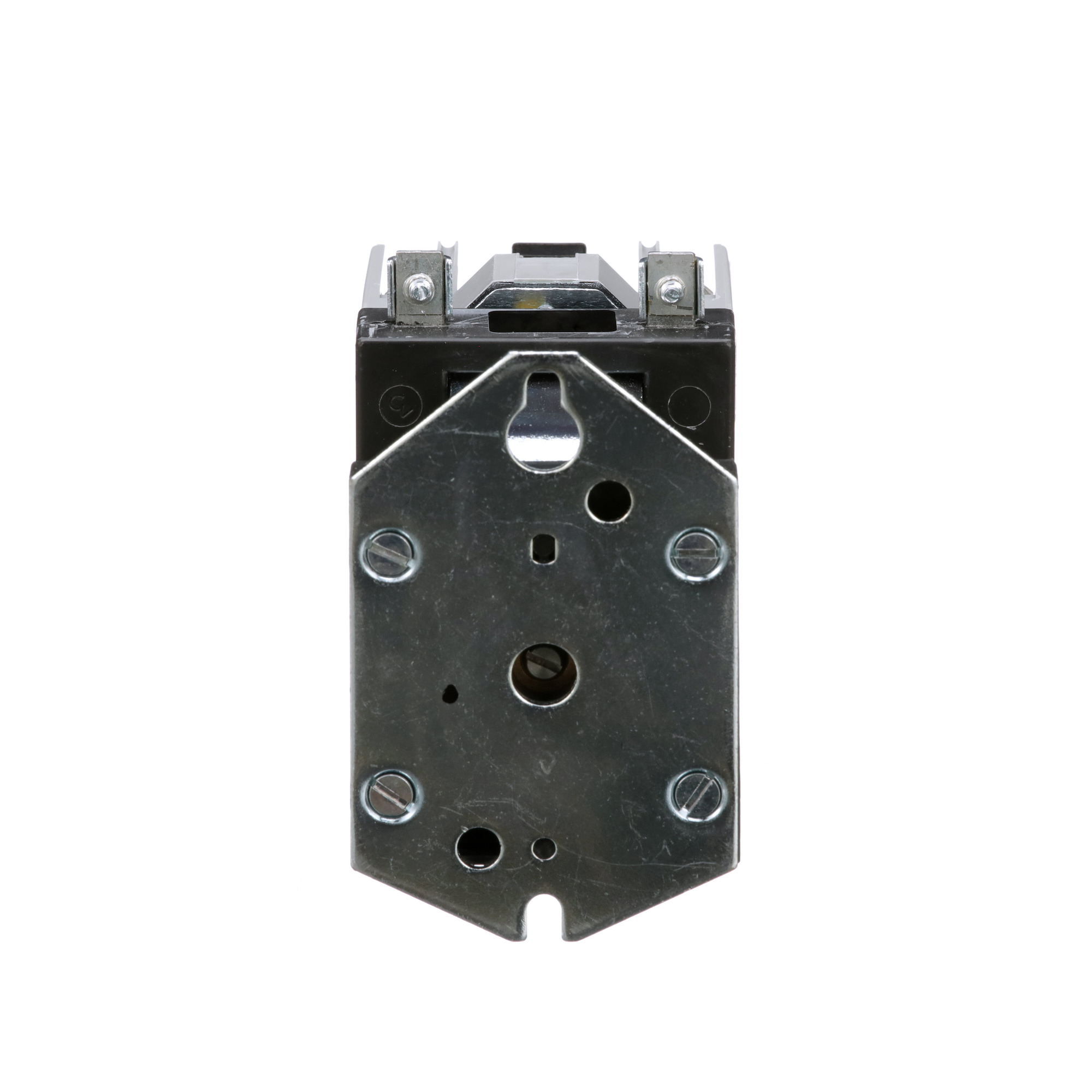

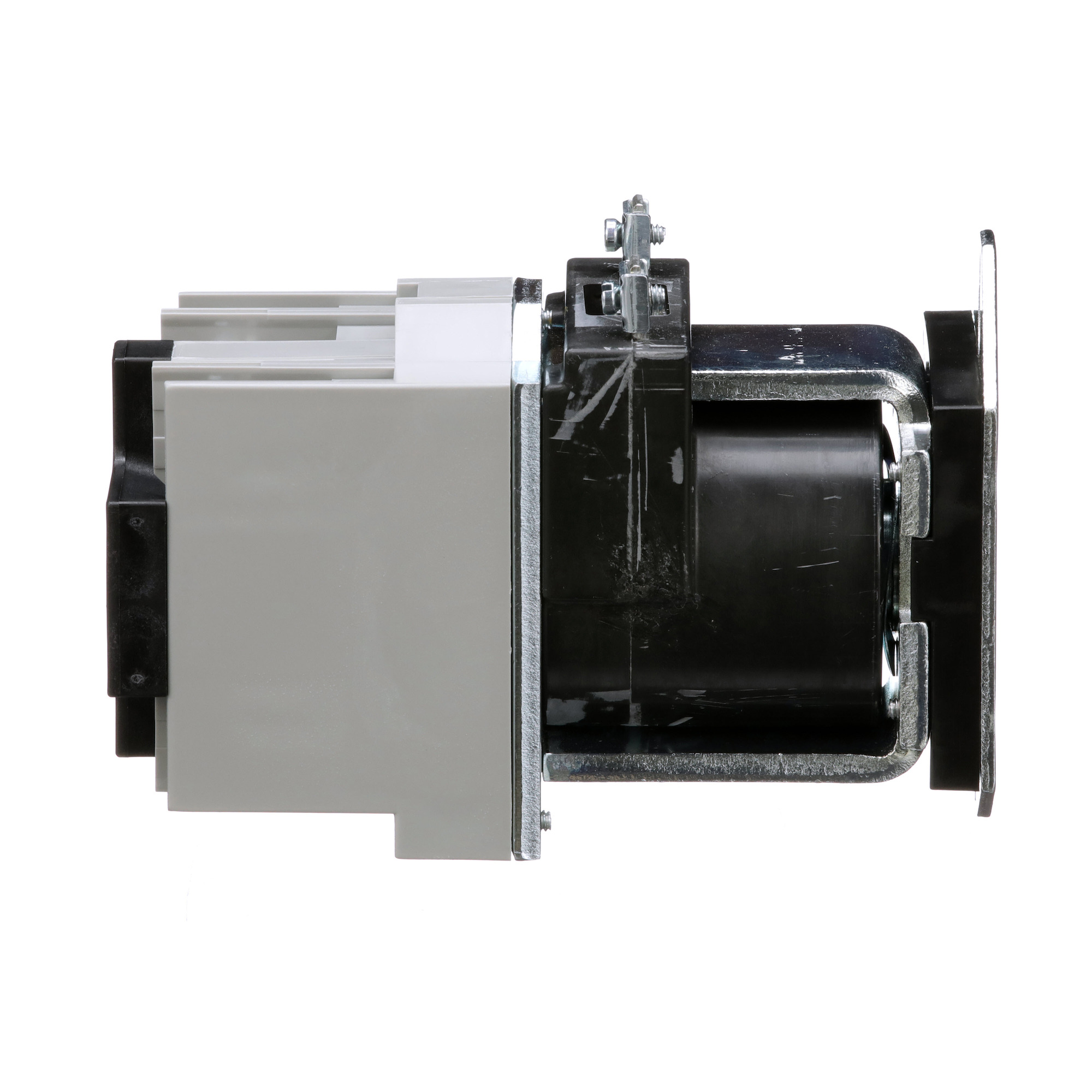

8501XDO40V51 Type X Control Relay, 10 A AC/5 A DC, 12 V DC V Coil
- MFR #:
- 8501XDO40V51
- UPC:
- 785901061663
- Item #:
- 838180
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
NEMA Control Relay, machine tool, 4 NO, 12 VDC coil
Manuals and Documentation
| Catalog Number | 8501XDO40V51 |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS |
| Contact Configuration | 4 NO 4 STANDARD CONTACT CARTRIDGES |
| Contact Rating | 10 A AC-5 A DC |
| Mounting | Panel Mount |
| Number of Poles | 4 |
| Special Features | SCREW CLAMP TERMINALS |
| Standard | UL LISTED FILE E78403 CCN NKCR-CSA LR60905 CLASS 3211 03 |
| UPC | 785901061663 |
| GTIN | 00785901061663 |
| Item Type | CONTROL,RELAY |
| Size | 2.23 IN,3.56 IN,5.17 IN |
| Operating Temperature | -40-160 A Degrees F |
