BLACKBURN MECHANICAL

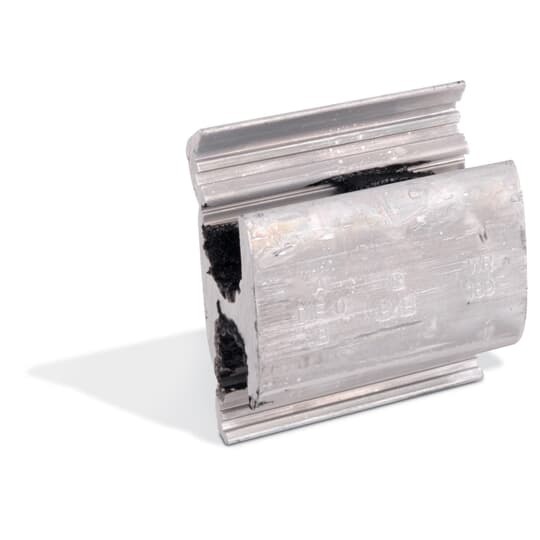

WR189 Blackburn Type WR Wide Range Compression H-Tap Connector, H Shape, 3 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded, 3/0 to 1 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR189
UPC:
783786103027
Item #:
83783

Availability

Location Available Qty
Available 439 ea
$2.64 each
Manuals and Documentation
Catalog Number WR189
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786103027
GTIN 00783786103027
Item Type H-Type Compression Tap Connector
Size Length 1-11/16 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 1/0 to #3 ACSR or 2/0 to #2 STR or 3/0 to #1 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG
Cross Reference Products ABBInstall 63115|ABBInstall OB101|ABBInstall OB103|ABBInstall WR179|ABBInstall WR189|ABBInstall WR199|Burndy YC25A2|Burndy YC25A4|Burndy YH02|Burndy YHD150
