Leviton®

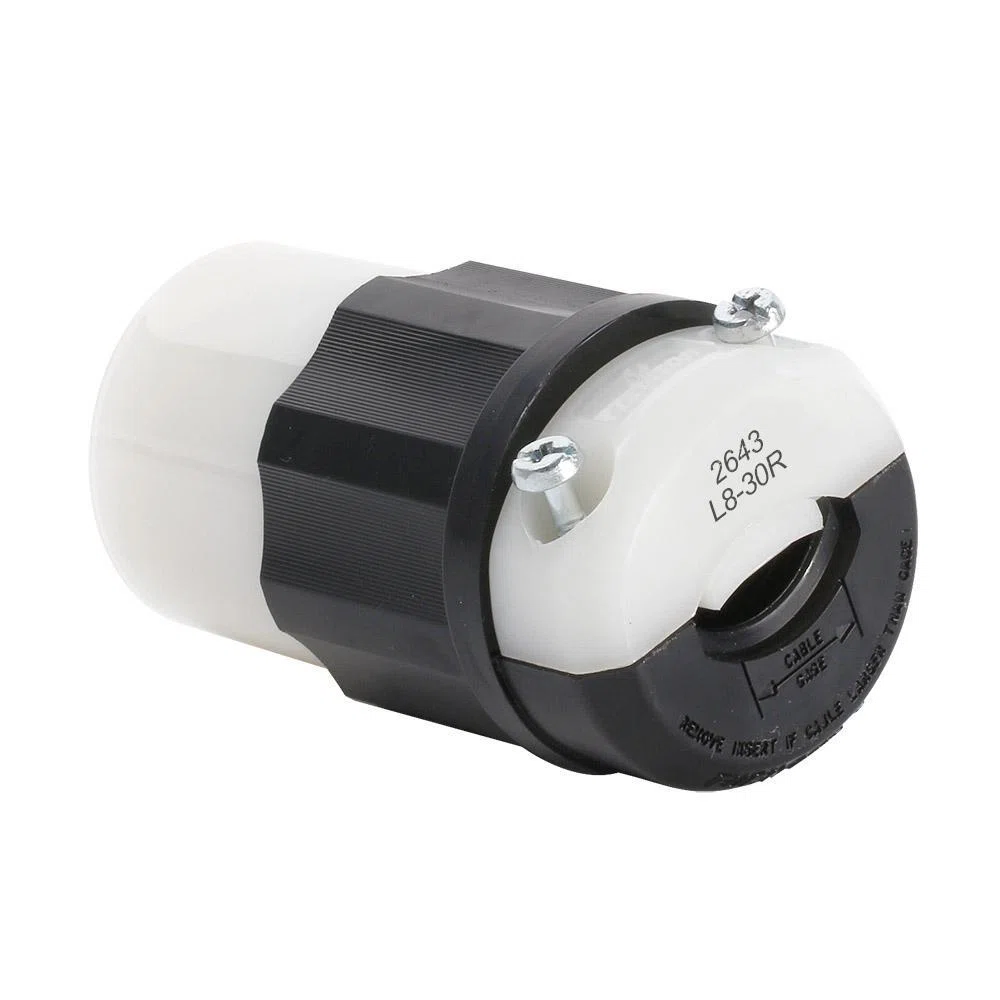

2643 1-Phase Grounding Cable Mount Locking Connector, 480 V AC, 30 A, 2 Poles, 3 Wires, Black/White

MFR:
Leviton
MFR #:
2643
UPC:
078477807804
Item #:
8371

Availability

Location Available Qty
Available Available to Order
$110.50 each

Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.

Manuals and Documentation
Manufacturer Part Number 2643
Brand Leviton®
Manufacturer Leviton
UPC 078477807804
Country Of Origin MX
Amperage Rating 30 A
Color Black/White
Dimensions 28 in Dia x 2.47 in H
Horsepower 5 hp
Material Nylon
Temperature Rating -40 to 60 deg C
Type 1-Phase Grounding Cable Mount
Voltage Rating 480 V AC
Alternative Part Number 7331466
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating
Application Industrial Applications
Cord Diameter 0.385 to 0.93 in
Grade Industrial
Nema Rating NEMA L8-30R
Number Of Poles 2
Number Of Wires 3
Terminal Type Screw
