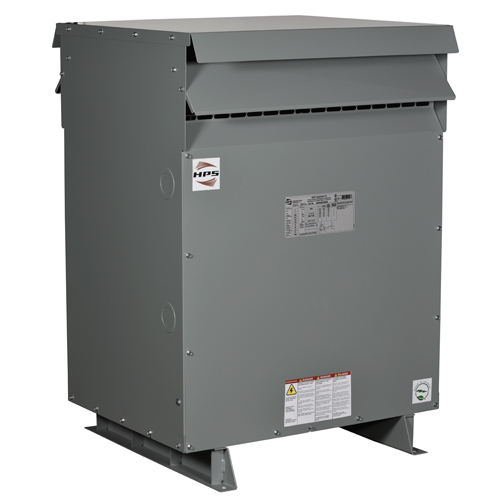

SG3A0225DK Sentinel G Energy Efficient General Purpose Distribution Transformer, 240 Delta V AC Primary, 480Y/277 VAC Secondary, 225 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- SG3A0225DK
- UPC:
- 803423127664
- Item #:
- 835399
SG3A0225DK Sentinel G Energy Efficient General Purpose Distribution Transformer, 240 Delta V AC Primary, 480Y/277 VAC Secondary, 225 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- SG3A0225DK
- UPC:
- 803423127664
- Item #:
- 835399
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$39,552.98
each
Optional infrared windows available
Manuals and Documentation
| Catalog Number | SG3A0225DK |
| Manufacturer | Hammond Power Solutions |
| Brand | HPS |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Enclosure | DH5-N3R - Indoor or Outdoor |
| Frequency Rating | 60 HZ |
| Mounting | Floor |
| Number of Taps | ST-20 compliant |
| Phase | 3 |
| Primary Voltage | 240D V |
| Secondary Voltage | 480Y/277 V |
| Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Standard | CSA, UL |
| RoHS URL | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| UPC | 803423127664 |
| GTIN | 00803423127664 |
| Item Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| Length | 34 |
| Length UOM | Inch |
| Width | 37.5 |
| Width UOM | Inch |
| Height | 52 |
| Height UOM | Inch |
| Temperature Rating | Typical 30 Average/ 40 Maximum DEG C |
