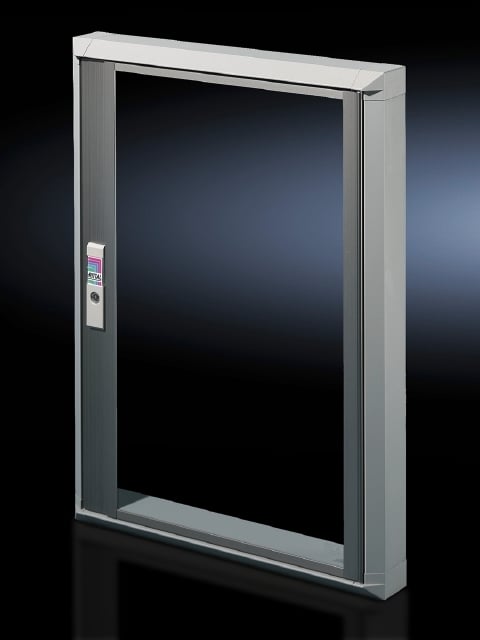

2735540 30-Section System Window, 598 mm H x 363 mm W, For Use With FT, VX, TS8, SE8 Series 600 mm W Enclosure, Extruded Aluminum, Light Gray, Natural Anodized/Powder Coated
- MFR:
- Rittal
- MFR #:
- 2735540
- UPC:
- 639889810488
- Item #:
- 834082
2735540 30-Section System Window, 598 mm H x 363 mm W, For Use With FT, VX, TS8, SE8 Series 600 mm W Enclosure, Extruded Aluminum, Light Gray, Natural Anodized/Powder Coated
- MFR #:
- 2735540
- UPC:
- 639889810488
- Item #:
- 834082
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,123.96
each
System windows, for TS, SE, 30 section, material: Extruded aluminium section with die-cast zinc corner pieces and single-pane safety glass., surface: Base frame: Powder-coated on the outside in RAL 7035, Hinge and lock section: Natural-anodised, description: To conceal display and operating instruments or cut-outs, and to protect against dirt and liquids as well as unauthorised access.
| Catalog Number | 2735540 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035, Natural |
| Consist of | Base Frame, Viewing Window |
| Material | Extruded Aluminum With Die-Cast Zinc, Glass |
| Special Features | Features: Readily Height-Adjustable, Prevents Dirt from Landing on the Seal, Protects the Glass From Being Lifted Out, Prevents the Ingress of Dirt and Moisture When Opening the Window |
| RoHS Indicator | Yes |
| UPC | 639889810488 |
| GTIN | 00639889810488 |
| Item Type | System Window |
| Length | 26.7720 |
| Length UOM | Inch |
| Width | 20.2760 |
| Width UOM | Inch |
| Height | 2.3620 |
| Height UOM | Inch |
| Weight | 12.787 |
| Weight UOM | Pounds |
| Size | 26 (H) x 20 (W) x 1.9 (D) |
