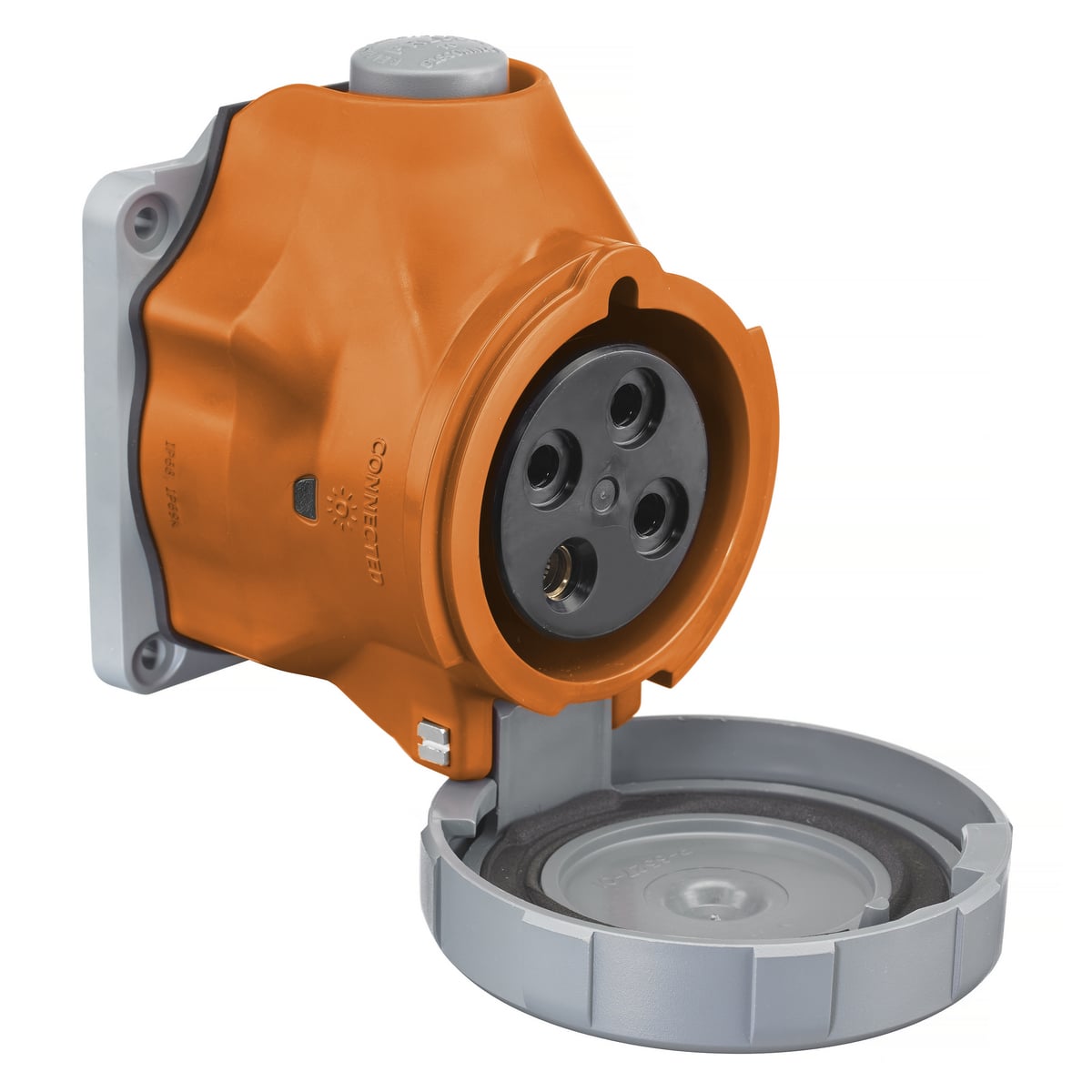

HBLS460R12W 3-Phase Grounding Switch Rated Screw Mount Pin and Sleeve Receptacle, 125/250 V AC, 60 A, 3 Poles, 4 Wires, Orange
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLS460R12W
- UPC:
- 783585478616
- Item #:
- 832569
HBLS460R12W 3-Phase Grounding Switch Rated Screw Mount Pin and Sleeve Receptacle, 125/250 V AC, 60 A, 3 Poles, 4 Wires, Orange
- MFR #:
- HBLS460R12W
- UPC:
- 783585478616
- Item #:
- 832569
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Advantage Series Pin and Sleeve Switch-Rated - Hubbell Wiring Device-Kellems Advantage Series Pin and Sleeve SwitchRated Devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell IEC Pin and Sleeve back boxes. The Advantage Series has a UL witnessed IP69k and 4X,12 environmental rating, two power-indicating LEDs, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbells Pin and Sleeve connections have always been safe that hasnt changed. The Advantage series simply has more Advantages.
Manuals and Documentation
| Catalog Number | HBLS460R12W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 60 |
| Application | Commercial Grade |
| Color | Orange |
| Connection | Box Terminals |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Low Profile |
| Standard | UL498/CSA |
| UPC | 783585478616 |
| GTIN | 00783585478616 |
| Item Type | Watertight Receptacle |
| Size | Standard Sized Products |
| Environmental Conditions | Indoor Dry |
| Temperature Rating | -40 Degrees C to 70 Degrees C |
| Voltage Rating | 125/250 |
| Wattage | 15000 |
| Wire Size | #14 AWG to #12 AWG |
