SQUARE D

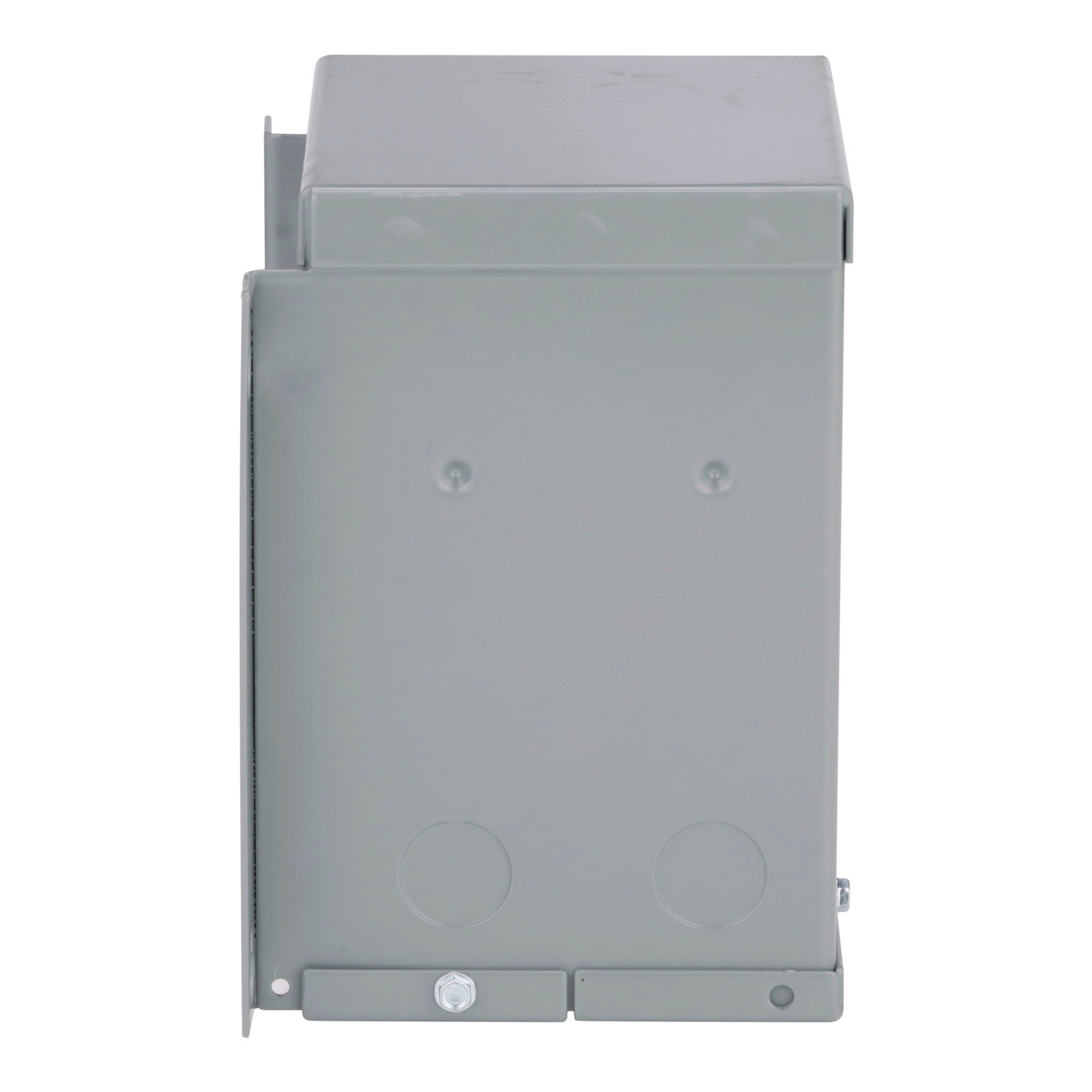

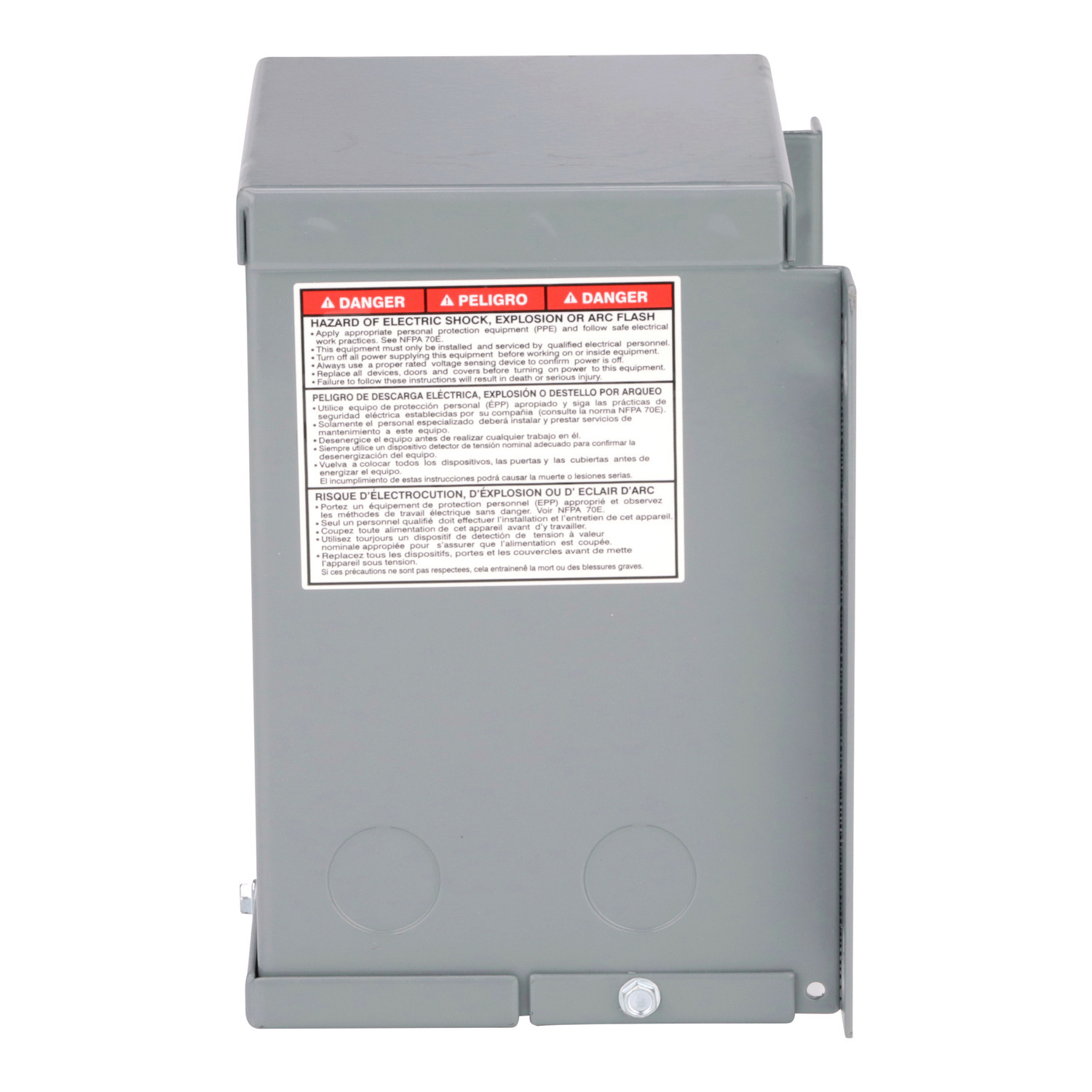

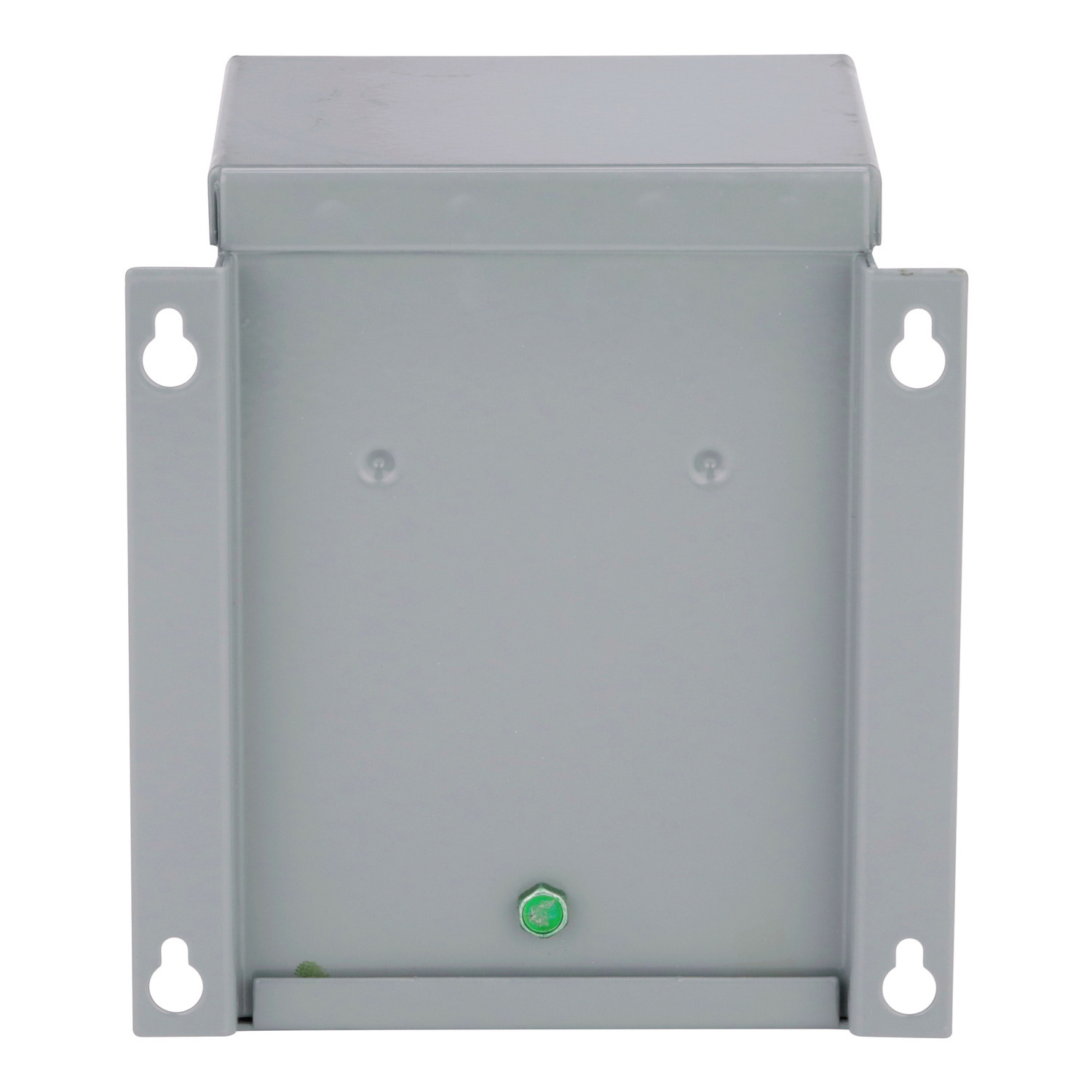

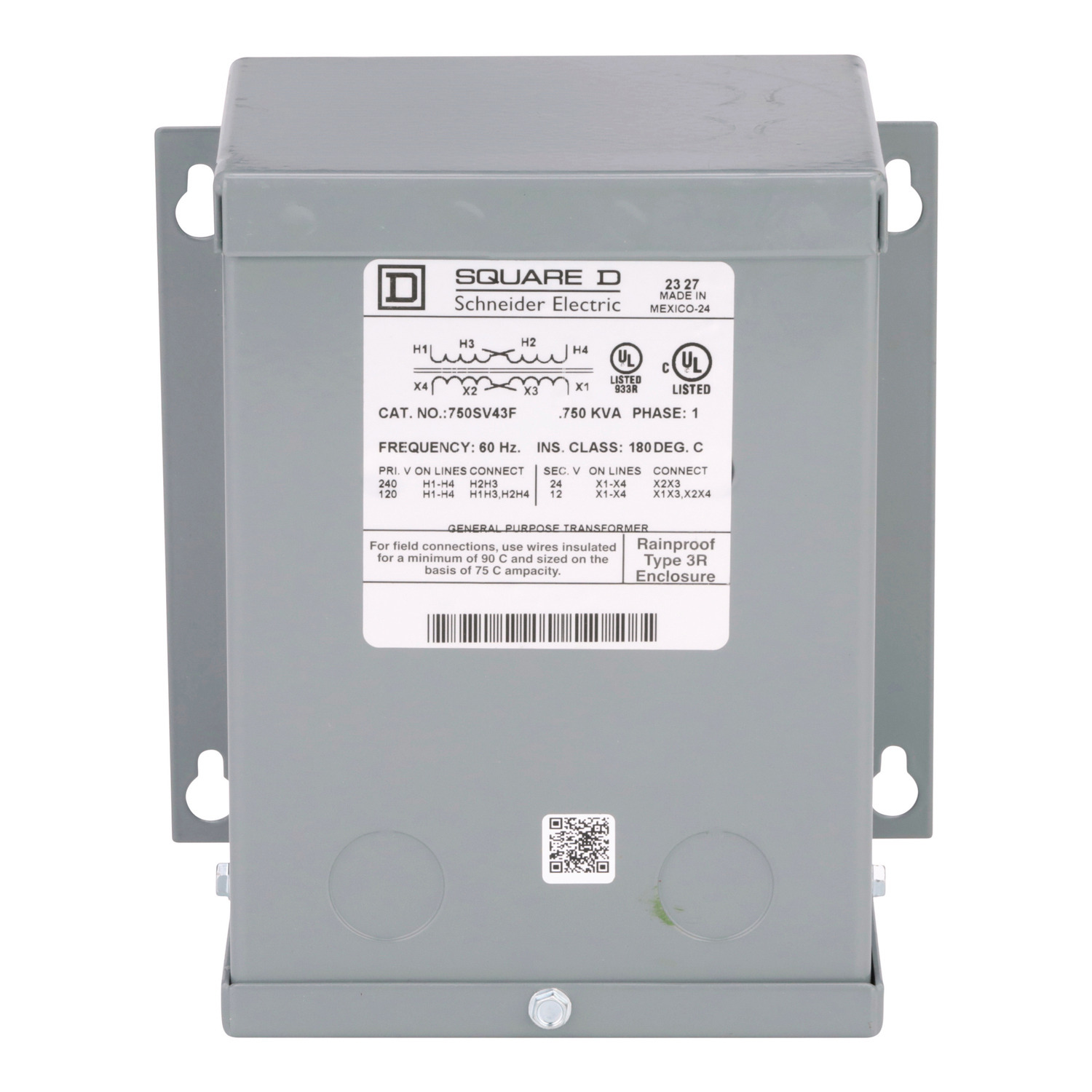

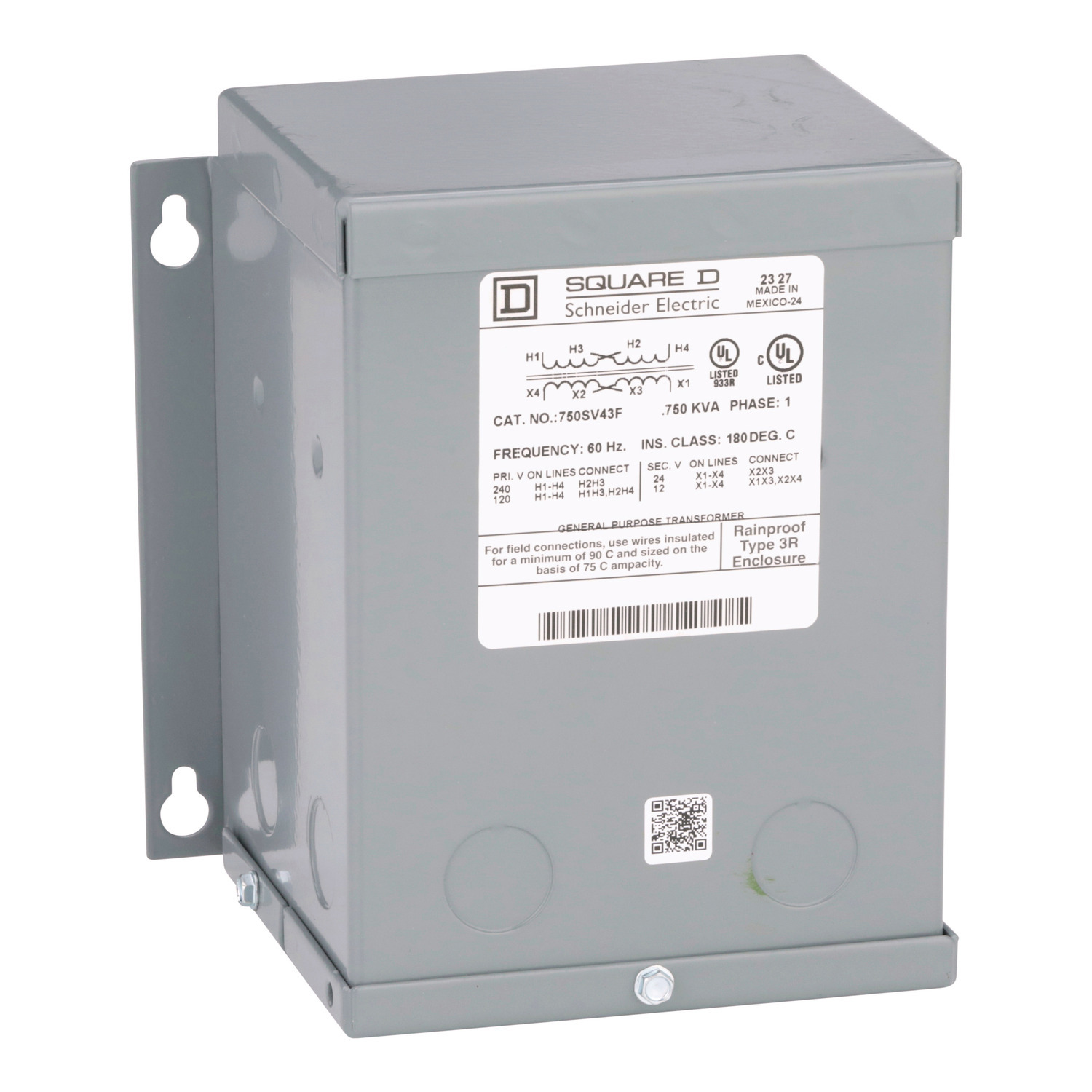

750SV43F Dry Buck And Boost Transformer, 120/240 V AC Primary, 12/24 VAC Secondary, 0.75 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Schneider Electric
MFR #:
750SV43F
UPC:
785901019930
Item #:
83123

Availability

Location Available Qty
Available 2 ea
$1,158.64 each

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This trandformer has a rated power of 0.75KVA. This transformer has a temperature rise of 115 C. This product has a UL listed, cULus & CSA certifications.

Manuals and Documentation
Catalog Number 750SV43F
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Primary Voltage 120 x 240 V
Secondary Voltage 12/24 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456165&lang=en-us
UPC 785901019930
GTIN 00785901019930
Item Type Buck and Boost Transformer
