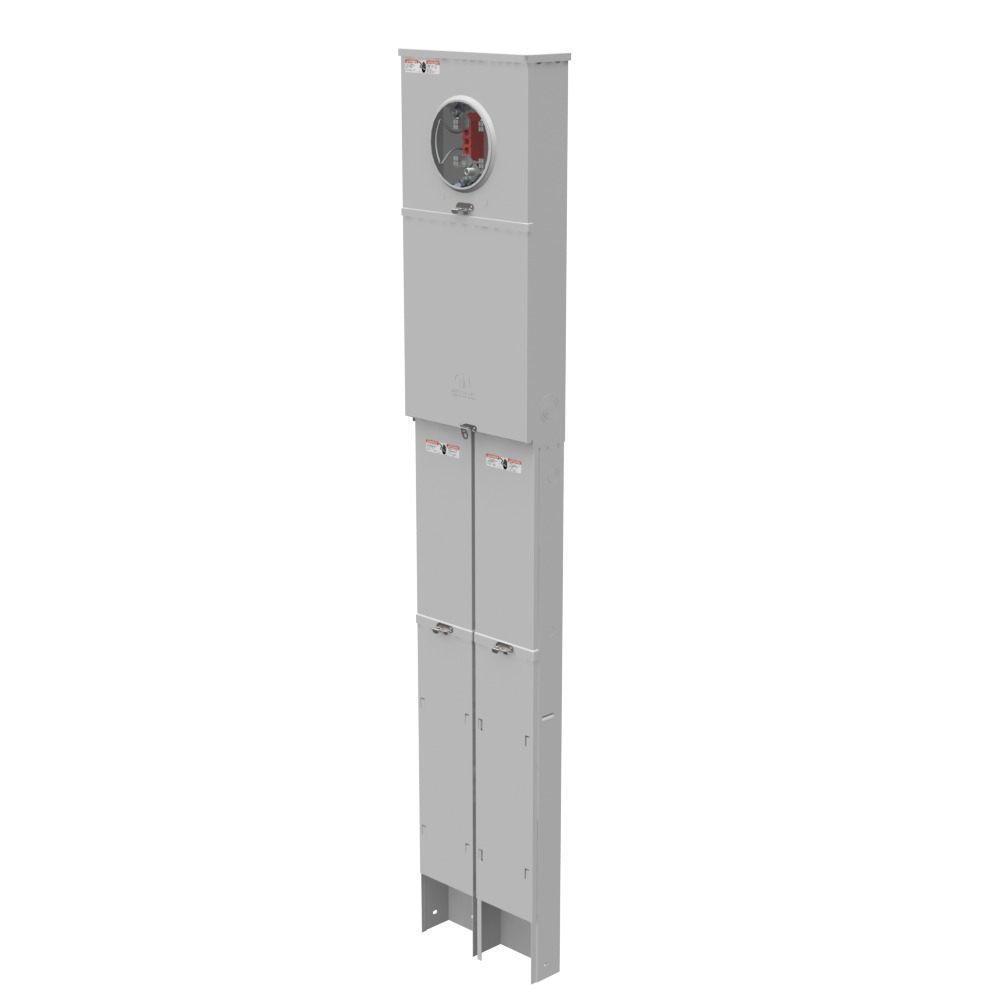

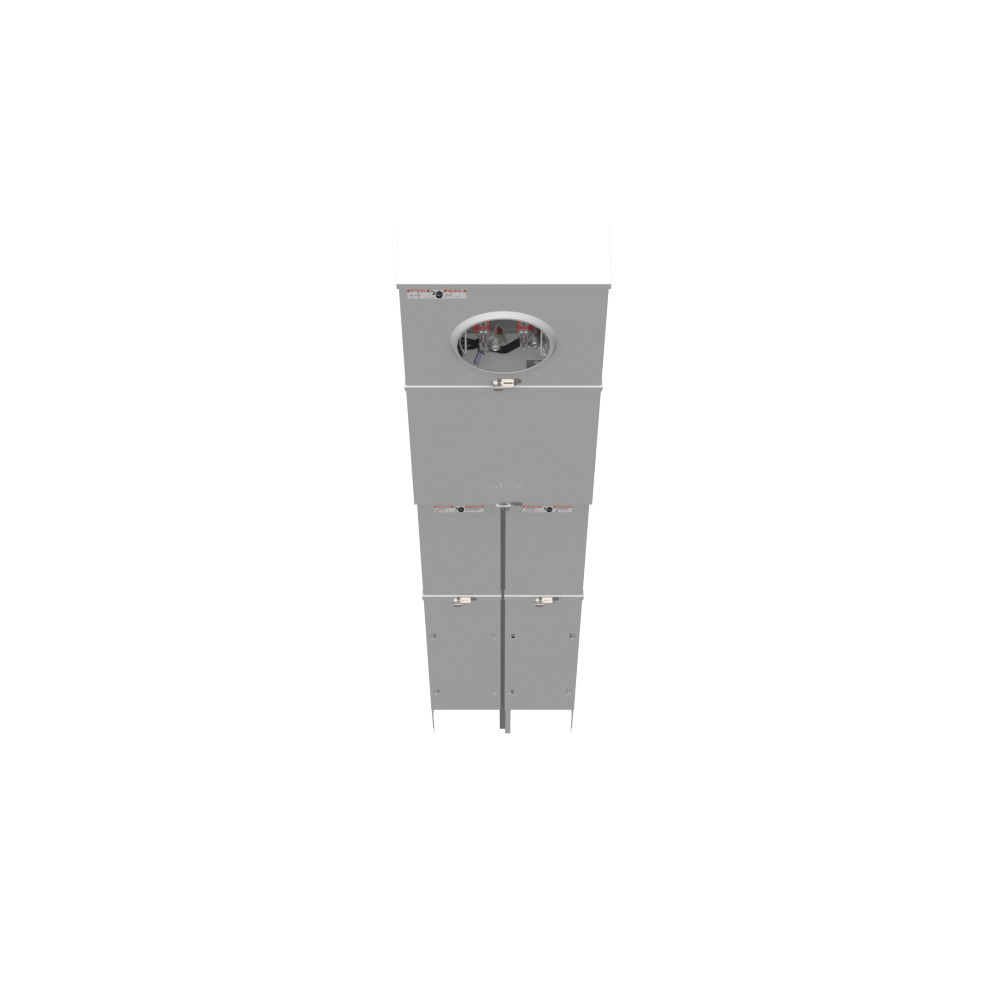

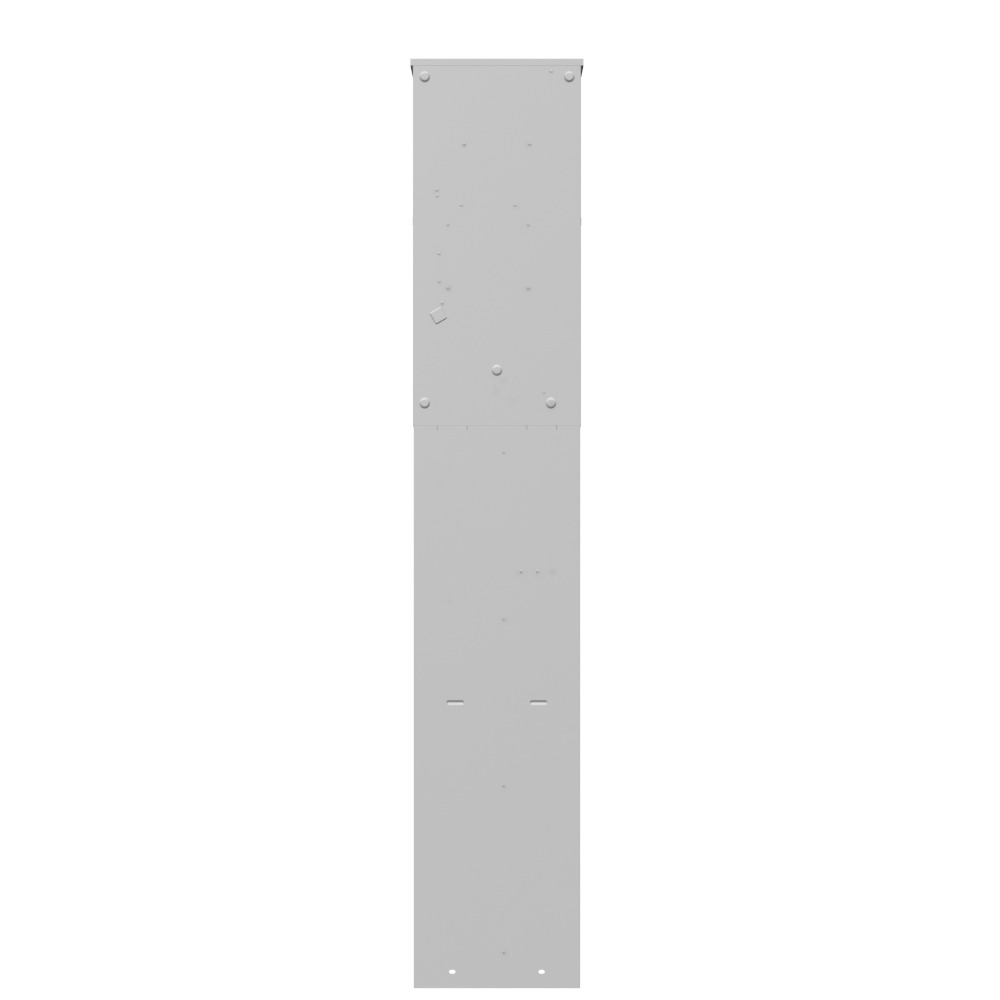

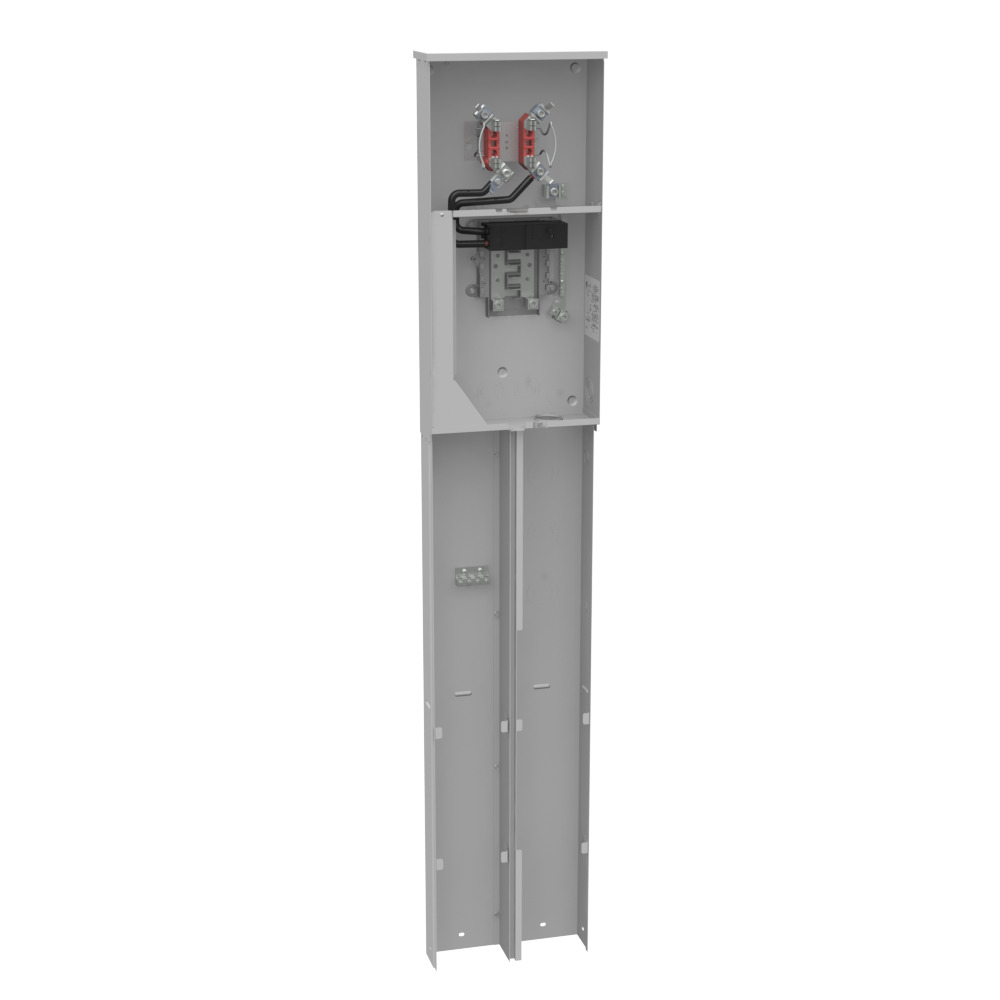

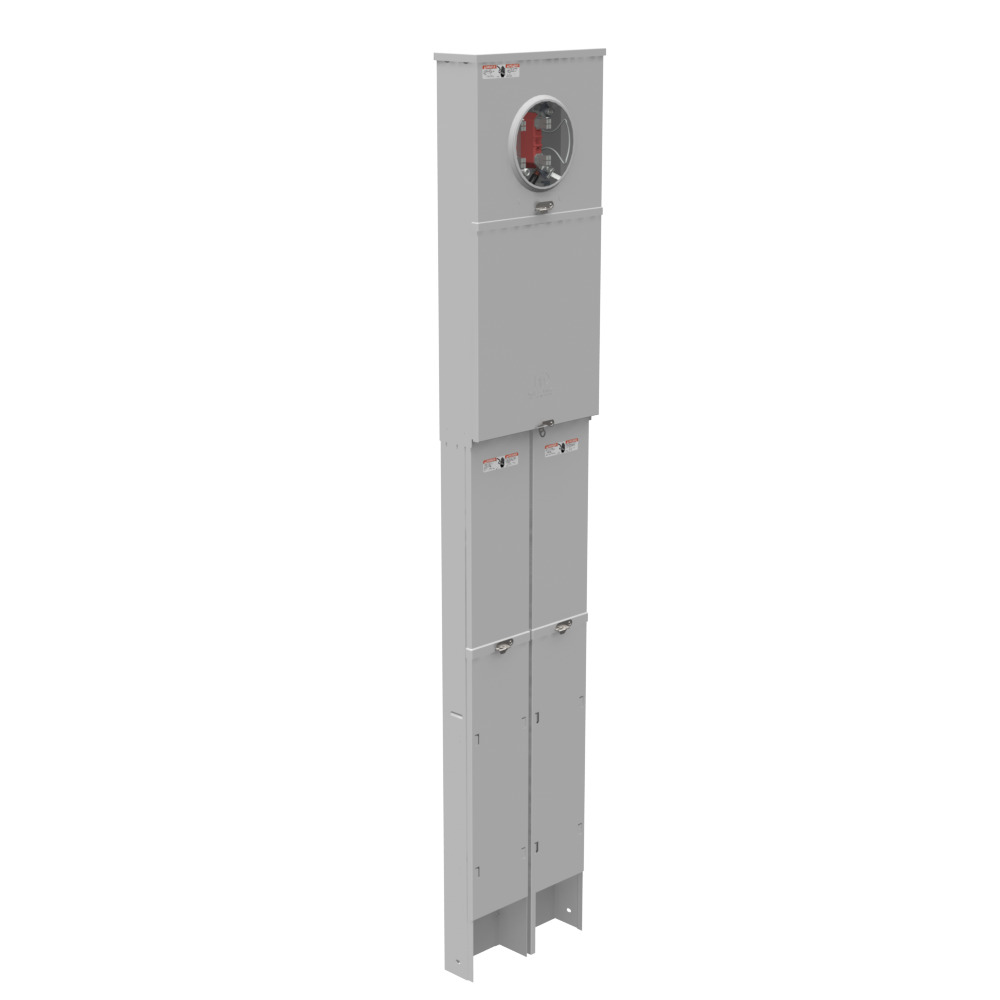

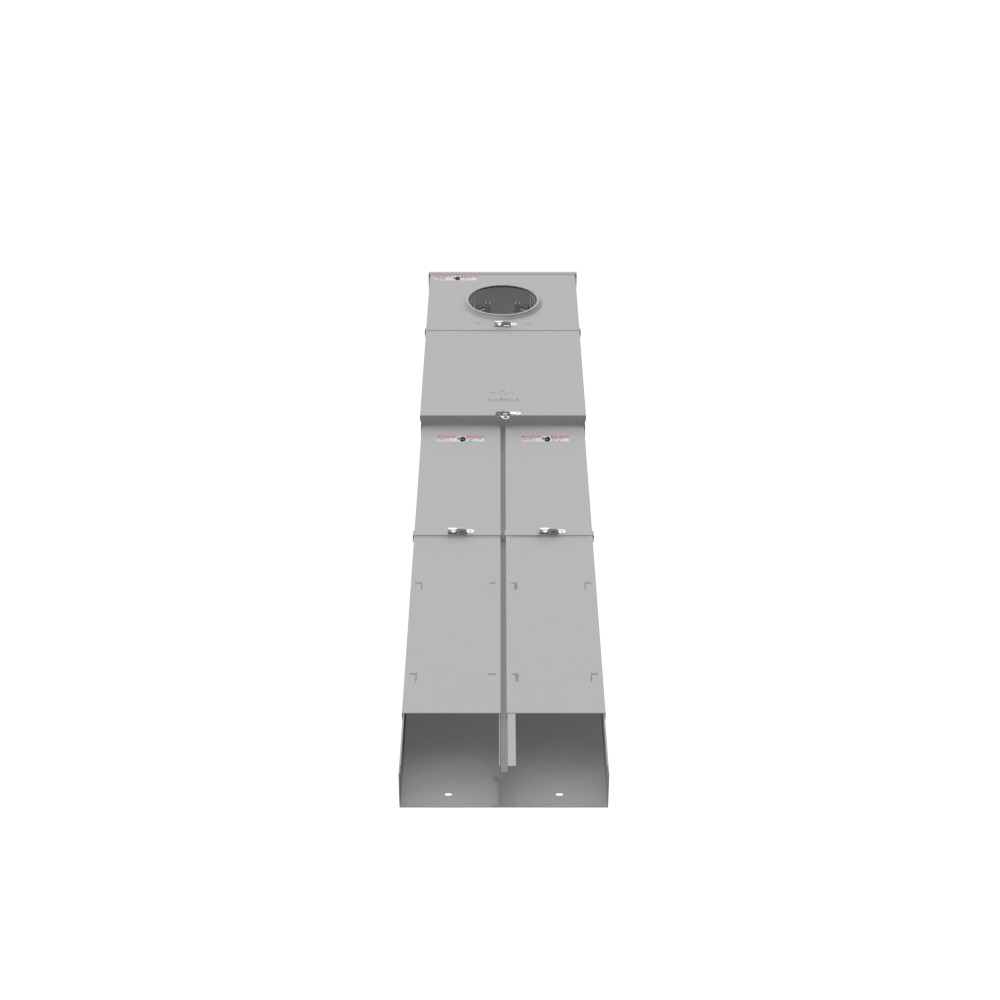

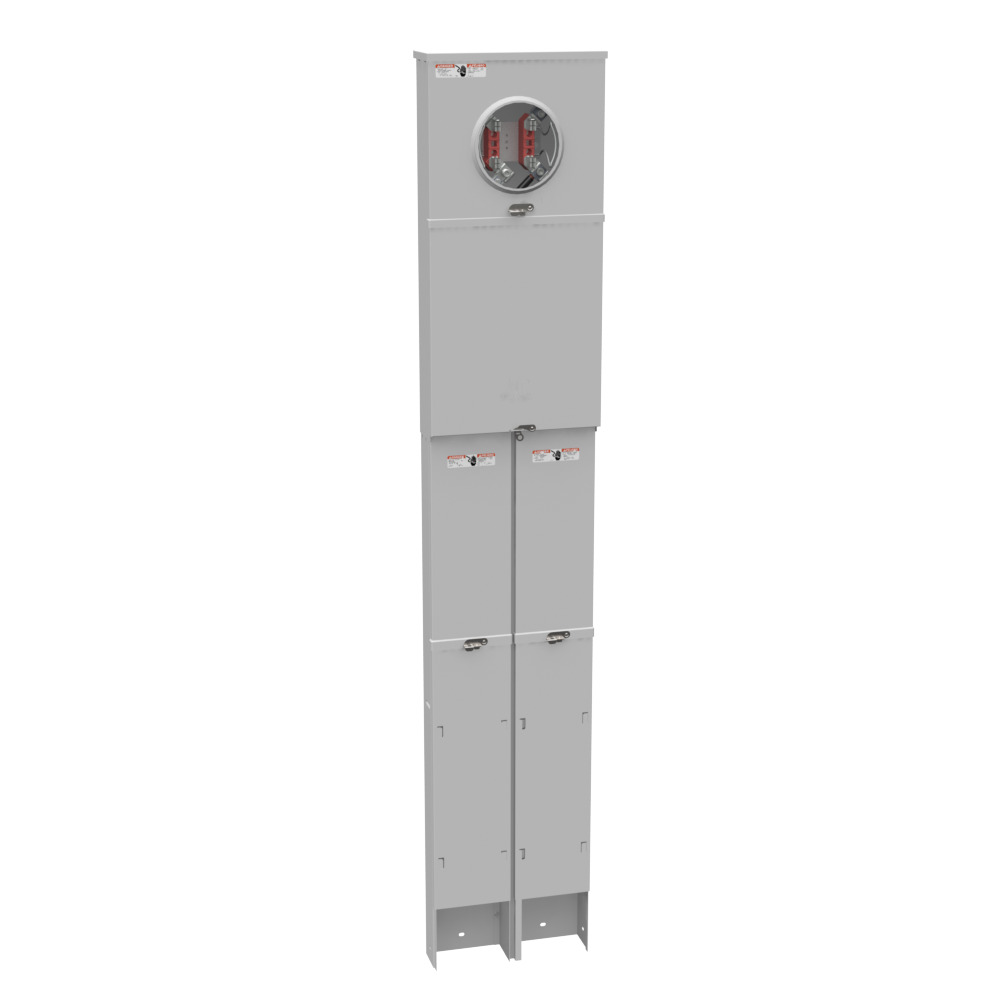

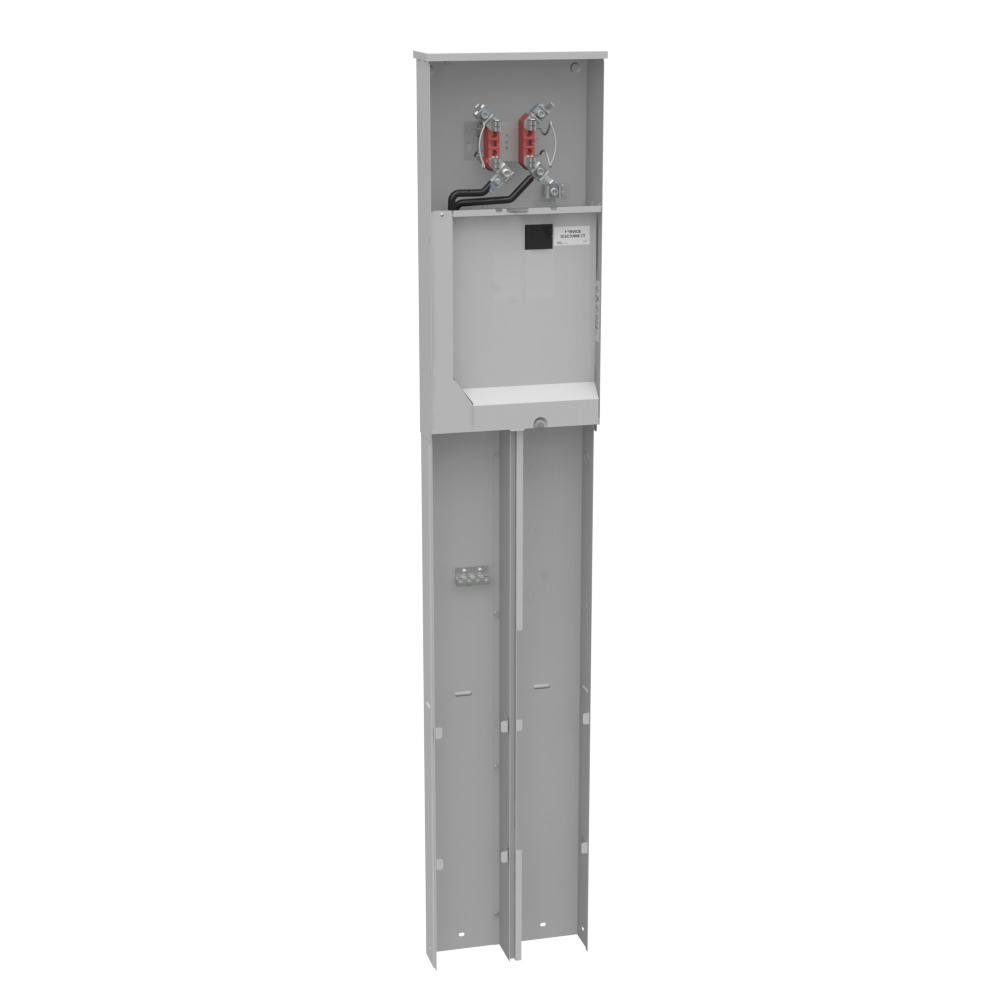

U5925-O-200-KK Single Position Meter Socket with Main and Load Center, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, UG, 240V
MFR: Milbank
MFR #: U5925-O-200-KK
UPC: 784572590397
Item #: 830731
U5925-O-200-KK Single Position Meter Socket with Main and Load Center, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, UG, 240V
MFR #: U5925-O-200-KK
UPC: 784572590397
Item #: 830731
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1891.57
each
4 TERM RNGLS PLAIN TOP HRN BYPS 1-200 AMP MN BRKR 8 BRANCH CKT SGL PED DIR BURY
Manuals and Documentation
- Catalog Number
- U5925-O-200-KK
- Manufacturer
- Milbank
- Brand
- Milbank
- Country of Origin
- United States
- Made in USA
- Yes
- Amperage Rating
- 200
- Application
- Meter Socket With Main And Load Center
- Bypass Type
- Horn
- Cable Entry
- Underground
- Enclosure
- G90 Galvanized Steel with Powder Coat Finish
- Frequency Rating
- 60 Hertz
- Insulation
- Glass Polyester
- Material
- G90 Galvanized Steel With Powder Coat Finish
- Mounting
- Pedestal
- Number of Jaws
- 4 Terminal
- Phase
- 1
- Standard
- UL Listed;Type 3R
- UPC
- 784572590397
- GTIN
- 00784572590397
- Item Type
- Ringless Meter Socket
- Length
- 4.5
- Length UOM
- Inch
- Width
- 14
- Width UOM
- Inch
- Height
- 78
- Height UOM
- Inch
- Size
- 4.5L x 14W x 78H
- Terminals
- Lay In
- Voltage Rating
- Up to 240 Volts Alternating Current
