Telemecanique

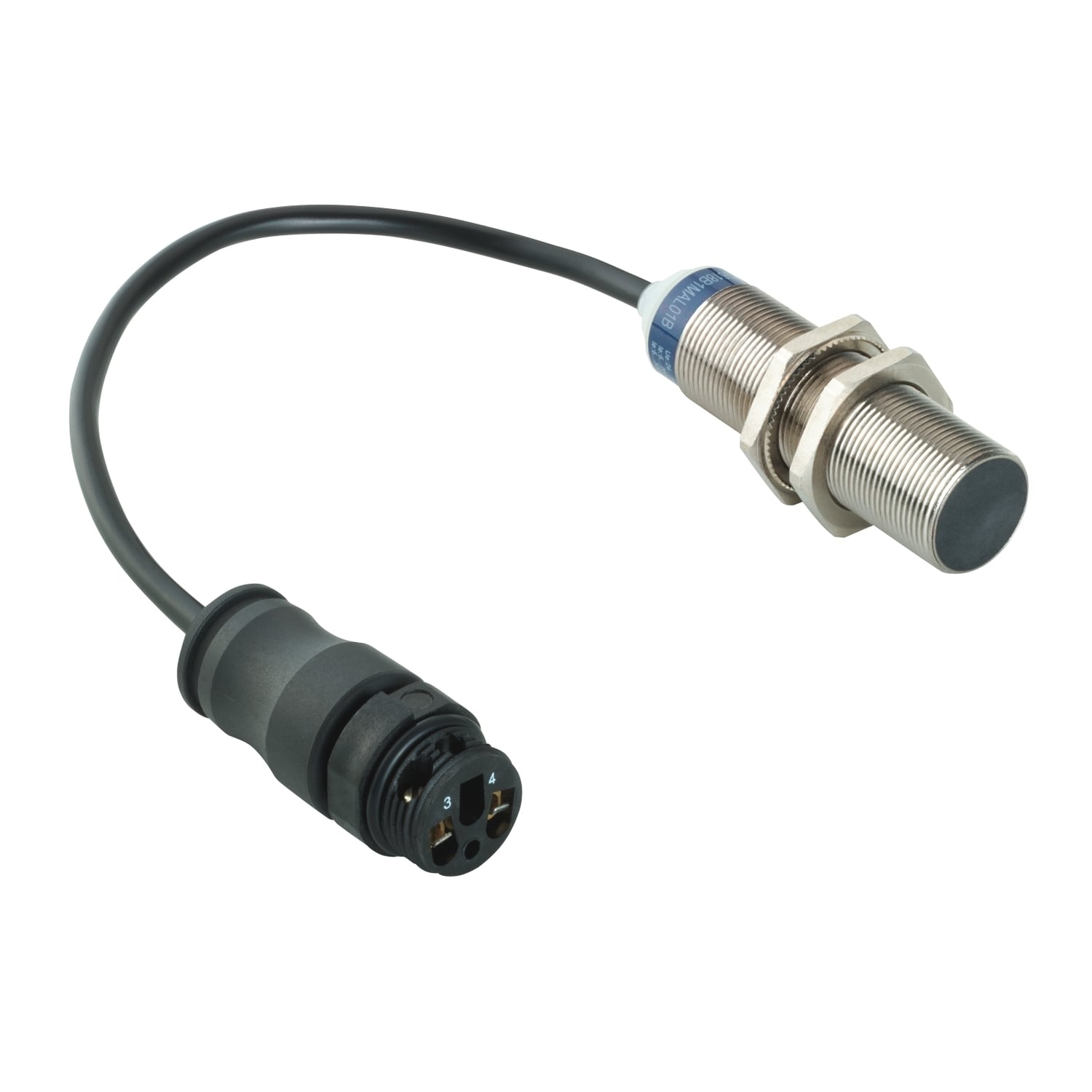

XS618B1MAL01B OsiSense XS Fixed Inductive Sensor, Proximity Sensor, Discrete Output, 1NO Contact, 24 to 240 V AC/DC

MFR:
Telemecanique Sensors
MFR #:
XS618B1MAL01B
Item #:
828662

Availability

Location Available Qty
Available Available to Order
$275.62 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a nickel plated brass case and a remote screw terminal connector. It has a sensing distance of 8mm. Two-wire, AC or DC supply, 24V to 240V, NO function.

Manuals and Documentation
Catalog Number XS618B1MAL01B
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connector Remote male connector screw-clamp terminals
Enclosure Nickel Plated Brass
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0.16...0.31 in (> 4...8 mm)
Special Features IP68 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K CONFORMING TO DIN 40050,REMOTE MALE CONNECTOR SCREW-CLAMP TERMINALS
Standard IP68 double insulation conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 24...240 V AC/DC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7050289&lang=en-us
GTIN 03389119026789
Item Type Inductive proximity sensor;Cylindrical M18
Operating Temperature -25-70 A Degrees C
