Intermatic

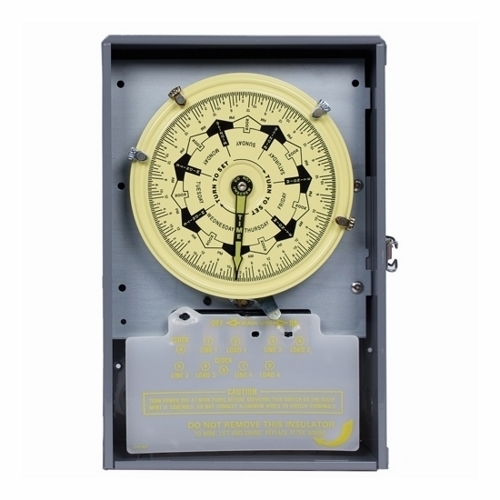

T7801B T7000B Electro Mechanical Timer Switch, 3-1/2 hr to 7 days Setting, 125 V AC, 10 hp, 2 Form C DPDT Contact, 2 Poles

MFR:
Intermatic
MFR #:
T7801B
UPC:
078275463011
Item #:
82764

Availability

Location Available Qty
Available Available to Order
$224.62 each

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Manuals and Documentation
Catalog Number T7801B
Manufacturer Intermatic
Brand Intermatic
Country of Origin Mexico
Made in USA No
Action DPDT
Application Commercial, Industrial, Residential, Indoor, HVACR
Connection Screw Terminal
Contact Configuration NO/NC
Contact Rating 40 AMP @ 120 - 480 VAC
Enclosure NEMA 1 Steel
Mounting Wall
Number of Poles 2
Special Features Features: Separate clock motor terminals for switching loads not on-line voltage, Carryover automatically rewinds when power resumes, One hour of rewinding time for every two hours of power outage, 1 Year Warranty
Standard cCSAus Certified, HVACR
UPC 078275463011
GTIN 00078275463011
Item Type Electromechanical
Size 12-1/2 HEIGHT X 8-1/4 WIDTH X 4 DEPTH IN, 31.7 HEIGHT X 21.0 WIDTH X 10.2 CM
Operating Temperature -40 to +130 DEG F, -40 to +54 DEG C
Timing Range 3-1/2 HR - 7 DAYS
Voltage Rating 125
Wattage 3 W
