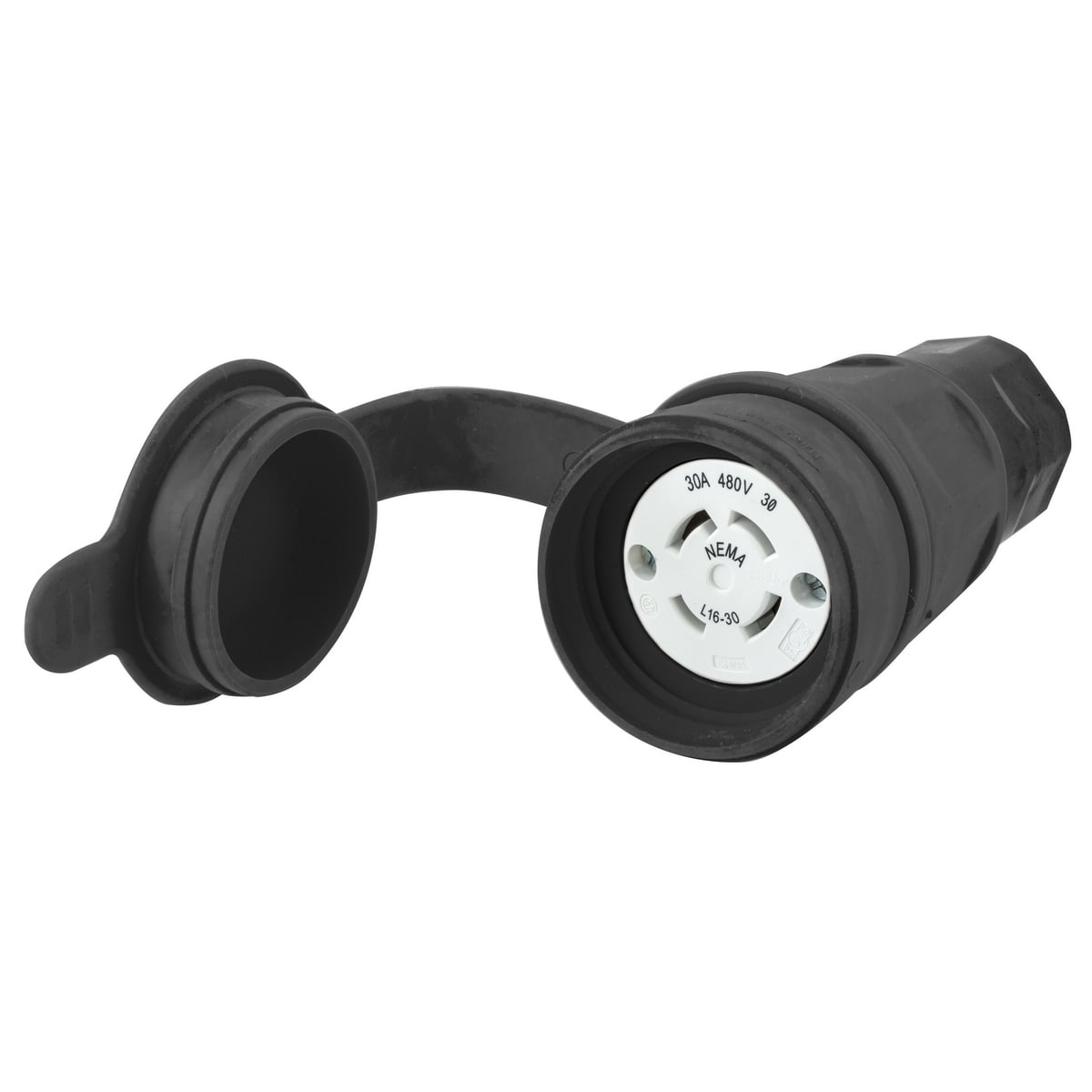

HBL29W76BK Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL29W76BK
- UPC:
- 783585131900
- Item #:
- 827095
HBL29W76BK Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
- MFR #:
- HBL29W76BK
- UPC:
- 783585131900
- Item #:
- 827095
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$214.16
each
Manuals and Documentation
| Catalog Number | HBL29W76BK |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Industrial/Commercial |
| Color | Black |
| Conductor Range | #14AWG to #10AWG |
| Connection | Terminal Screws |
| Insulation | Insulated Body |
| Material | Elastomer/Composite |
| Mounting | Cord |
| NEMA Rating | 6 |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| UPC | 783585131900 |
| GTIN | 00783585131900 |
| Item Type | Connector Body |
| Size | 2.77 in x 2.77 in x 5.67 in |
| Environmental Conditions | Water Tight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3 Phase 480 |
